Field Probes for Handheld Analyzer


  • Schwarzbeck FSH3D isotropic H-field antenna for handheld spectrum analyser
  • Schwarzbeck FSH3D


FSH3D



Isotropic H-Field Antenna for the Rohde und Schwarz handheld spectrum analyser FSH or the TS-EMF System.



9 kHz - 200 (300) MHz



Light weight low attenuation radom



Outer diameter ca. 150 mm



The selection of the active loop and the power supply for the antenna is provided by the included short cable that can directly be connected to the R&S FSH.



pdficon small Datasheet FSH3D






NEW

  • Schwarzbeck Isotropic E-field Probe

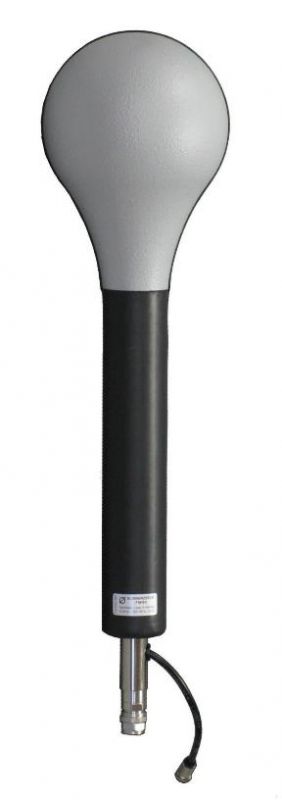

FSE3D



Isotropic E-Field Antenna for handheld spectrum analyser.



Frequency range: (10) 30 MHz - 3 (3.3) GHz

Light weight low attenuation radom



Outer diameter approx. 150 mm



The FSE3D consists of three identical, active broadband dipoles, which are aligned perpendicularly to each other. A shielded unit follows, containing the switching and amplifier circuitry, which is directly connected to the N-male output and fed by the USB-connector with power supply and data-signals to select the desired loop-axis. A RF-transparent radome cover protects the FSE3D from dust and moisture. Because of its light-weight construction the FSE3D can be directly mounted to the spectrum analyzer. Alternatively the FSE3D can be held manually at its 50 mm shaft (sweeping method) or attached to a mast or tripod using the 22 mm tube (rotation method or raster method).



pdficon small Datasheet FSE3D





  • Schwarzbeck FSHPH
  • Schwarzbeck FSHPH_

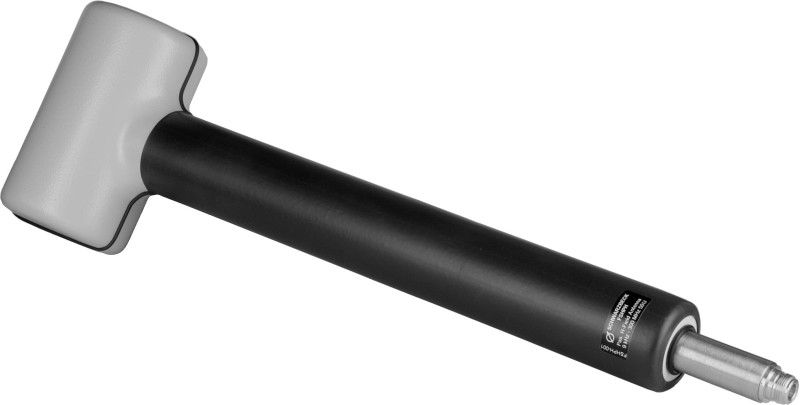

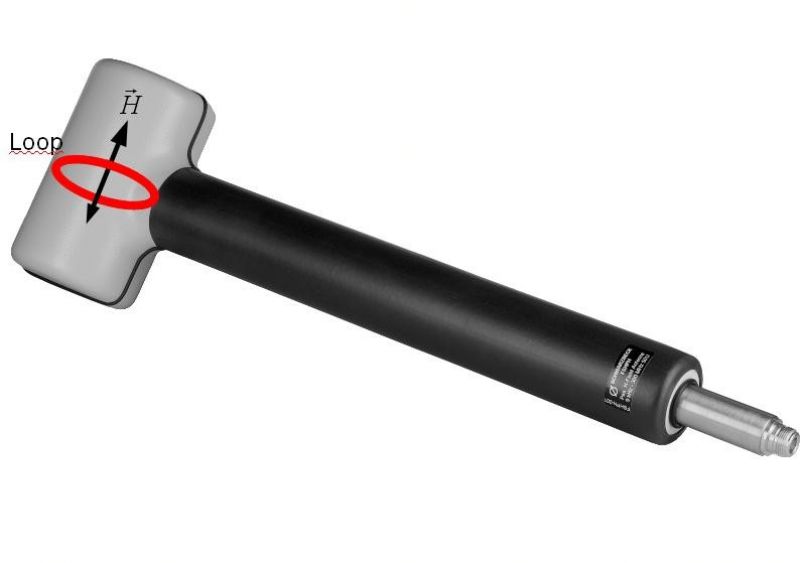

FSHPH



H-field probe for handheld spectrum analyzer of all main manufacturer.



Usable with the following devices:

    • Rohde und Schwarz FSH-Serie
    • Keysight Fieldfox
    • Anritsu Sitemaster, LMR-Master, Spectrum Master
    • Aeroflex 9100 Handheld Spectrum Analyzer Series
    • and many more...



9 kHz - 300 MHz



The FSHPH is a passive, single-axis H-field probe suited for non-ionizing radiation measurements according to BGV-B11, ICNIRP, IEEE C95.1, FCC 96-236 and others. The FSHPE allows a fast andaccurate safety-evaluation of the measurement environment.



pdficon small Datasheet FSHPH





  • Schwarzbeck FSHPE

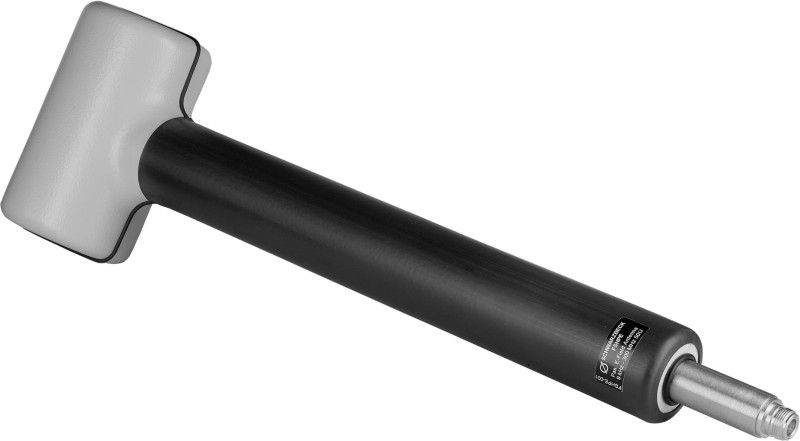

FSHPE



E-field probe for handheld spectrum analyzer of all main manufacturer.





Usable with the following devices:

    • Rohde und Schwarz FSH-Serie
    • Keysight Fieldfox
    • Anritsu Sitemaster, LMR-Master, Spectrum Master
    • Aeroflex 9100 Handheld Spectrum Analyzer Series
    • and many more...



9 kHz - 200 (300) MHz



The FSHPE is a passive, single-axis E-field probe suited for non-ionizing radiation measurements according toBGV-B11, ICNIRP, IEEE C95.1, FCC 96-236 and others. The FSHPE allows a fast an accurate safety-evaluation of the measurement environment.



pdficon small Datasheet FSHPE
