CDN - Coupling / Decoupling Networks

The Coupling- / Decoupling Networks are used to inject common mode disturbances to Equipment under Test (EuT). Further the CDNs provide sufficient decoupling between Auxiliary Equipment (AE) and disturbance signal. The requirements for CDN and their application are described in the standard IEC 61000-4-6 (Immunity to conducted disturbances, induced by radio-frequency fields). CDNs have a common mode impedance of 150 Ohm and are available for a multitude of cable types and connectors.

pdficon large Schwarzbeck CDN - Overview





Cable type





CDN type



Application



Product range


 M type
  • Mains
  • Unscreened lines
  • Unbalanced lines
  • AC or DC
  • Power supply applications
  • High current


 CDN M1
 CDN M2
 CDN M2/3PE
 CDN M3
 CDN M3PE
 CDN M4
 CDN M4PE
 CDN M5PE





 AF type

  • Unscreened lines
  • Unbalanced lines
  • Low current


 CDN AF2
 CDN AF3
 CDN AF4
 CDN AF6
 CDN AF8




 S type
  • Coaxial cables
  • Shielded lines
  • Screened lines


 CDN S1
 CDN S2
 CDN S4
 CDN S8
 CDN S9
 CDN S15
 CDN S19
 CDN S24
 CDN S25




 T type
  • Unscreened lines
  • Balanced lines
  • Telecommunication ports
  • Unshielded twisted pairs

 CDN T2
 CDN T4
 CDN T8

other models on request

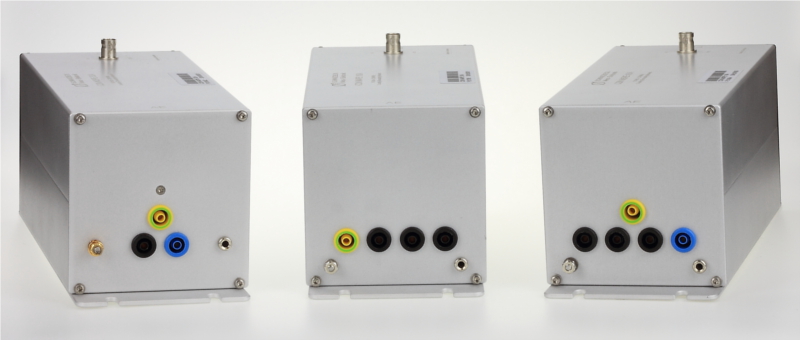

CDN M-type - Mains / Power supply applications



M-Type CDN-Coupling Depupling Networks

Drawing

 Frequency
range

EUT/AE
connector type

Max.
Current
rating
 Input Voltage
EUT
 Case
size
AE Port EUT Port
 CDN M1 16A 1000V
  • AE-1-BananaAE-1-Banana
  • EuT-1-Banana
 0.15...230 MHz
 4 mm safety
banana sockets
 16 A

 500 VAC
 1000 VDC

 A
 CDN M2 16A 1000V
  • AE-2-Banana
  • EuT-2-Banana
 0.15...230 MHz  4 mm safety
banana sockets
 16A  500 VAC
1000 VDC
 A
 CDN M2 32A 1000V
  • AE-2-Banana

  • EuT-2-Banana

 0.15...230 MHz  4 mm safety
banana sockets
 32 A  500 VAC
1000 VDC
 B
 CDN M2 63A 1000V
  • AE-2-Banana

  • EuT-2-Banana
 0.15...230 MHz Multi-Contact
KBT6AR-N/...-S
 63 A  500 VAC
1000 VDC
 C
 CDN M2 125A 1000V
  • AE-2-Banana
  • EuT-2-Banana
0.15...230 MHz

Multi-Contact
KBT6AR-N/25-S-L

125 A 500 VAC
1000 VDC
 C
 CDN M2/M3PE 16A
  • AE-3-Banana
  • AE-2_3_Banana_Switch
 0.15...230 MHz  4 mm safety
banana sockets
 16 A  250 VAC
 400 VDC
 A
 CDN M3PE 16A 1000V
  • AE-3-Banana
  • EuT-3-Banana
 0.15...230 MHz  4 mm safety
banana sockets
 16 A  250 VAC
 400 VDC
 A
 CDN M3 32A 1000V
  • AE-3-Banana
  • EuT-3-Banana
0.15...230 MHz 4 mm safety
banana sockets
32 A 500 VAC
 1000 VDC
A
 CDN M3PE 32A 1000V
  • AE-3-Banana
  • EuT-3-Banana
 0.15...230 MHz  4 mm safety
banana sockets
 32 A  500 VAC
 1000 VDC
 A
CDN M3PE 125A 1000V
  • AE-3-Banana
  • EuT-3-Banana
0.15...230 MHz Multi-Contact
KBT6AR-N/25-S-L
125 A 500 VAC
 1000 VDC
 CDN M4 16A 1000V
  • AE-4-Banana
  • EuT-4-Banana
 0.15...230 MHz  4 mm safety
banana sockets
 16 A  500 VAC
 1000 VDC
 A
 CDN M4PE 16A 1000V
  • AE-4-Banana
  • EuT-4-Banana
 0.15...230 MHz  4 mm safety
banana sockets
 16 A  500 VAC
 1000 VDC
 A
 CDN M4 32A 1000V
  • AE-4-Banana
  • EuT-4-Banana
 0.15...230 MHz  4 mm safety
banana sockets
 32 A  500 VAC
1000 VDC
 A
 CDN M4PE 32A 1000V
  • AE-4-Banana

  • EuT-4-Banana
 0.15...230 MHz  4 mm safety
banana sockets
 32 A  500 VAC
1000 VDC
 A
 CDN M4 63A 1000V
  • AE-4-Banana
  • EuT-4-Banana
0.15...230 MHz Multi-Contact
KBT6AR-N/...-S
63 A 500 VAC
1000 VDC
 C
CDN M4PE 125A 1000V
  • AE-4-Banana


  • EuT-4-Banana
0.15...230 MHz Multi-Contact
KBT6AR-N/...-S
125 A 500 VAC
1000 VDC
C
 CDN M5PE 16A 1000V
  • AE-5-Banana
  • EuT-5-Banana

0.15...230 MHz  4 mm safety
banana sockets
 16 A 500 VAC
1000 VDC
 A
 CDN M5PE 32A 1000V
  • AE-5-Banana
  • EuT-5-Banana
0.15...230 MHz  4 mm safety
banana sockets
 32 A 500 VAC
1000 VDC
A
 CDN M5PE 63A 1000V
  • AE-5-Banana_Breit

  • EuT-5-Banana_Breit
 0.15...230 MHz  Multi-Contact
KBT6AR-N/...-S
 63 A  500 VAC
1000 VDC
 C
 CDN M5PE 125A 1000V
  • AE-5-Banana_Breit
  • EuT-5-Banana_Breit
 0.15...80 MHz  Multi-Contact
KBT6AR-N/...-S
125 A

500 VAC
1000 VDC

C



 CDN AF-type - Unscreened unbalanced lines



Product  Drawing Frequency range EUT/AE
connector type
Max. Current rating Input Voltage
EUT
Case size
 AE Port EUT Port
 CDN AF2
  • AE-2-Banana
  • EuT-2-Banana
0.15...230 MHz

4 mm safety
banana sockets

4 A (DC) 100 VAC
150 VDC
A
 CDN AF3
  • AE-3-Banana
  • EuT-3-Banana
0.15...230 MHz 4 mm safety
banana sockets
4 A (DC) 100 VAC
150 VDC
A
 CDN AF4
  • AE-4-Banana
  • EuT-4-Banana
0.15...230 MHz 4 mm safety
banana sockets
4 A (DC) 100 VAC
150 VDC
A
 CDN AF6
  • AE-6-Banana
  • EuT-6-Banana
0.15...230 MHz 4 mm safety
banana sockets
4 A (DC) 100 VAC
150 VDC
A
 CDN AF8
  • AE-8-Banana
  • EuT-8-Banana
0.15...230 MHz 4 mm safety
banana sockets
4 A (DC) 100 VAC
150 VDC
A



CDN S-type - Screened cables



Product  Drawing Frequency range EUT/AE
connector type
Max. Current rating Input Voltage
EUT
Case size
 AE Port EUT Port
 CDN S1 BNC
  • AE-1-Banana
  • EuT-1-Banana
0.01...230 MHz

1x BNC 50 Ω

    A
 CDN S1 BNC 75
  • AE-1-Banana
  • EuT-1-Banana
0.01...230 MHz

1x BNC 75 Ω

A
 CDN S2 XLR3-1
  • AE_Einbaubuchse_D-Serie
  • EUT-_Einbaubuchse_D-Serie
0.01...230 MHz

XLR3-1
GND:PIN1

A
 CDN S2 XLR3-3
  • AE_Einbaubuchse_D-Serie
  • EUT-_Einbaubuchse_D-Serie
0.01...230 MHz XLR3-3
GND:PIN3
A
 CDN S4 4xBNC
  • AE-4-Banana
  • EuT-4-Banana
0.01...230 MHz 4x BNC 50 Ω     A
 CDN S4 XLR4
  • AE_Einbaubuchse_D-Serie
  • EUT-_Einbaubuchse_D-Serie
0.01...230 MHz XLR4 female
    A
 CDN S4 DIN5-1
  • AE_Einbaubuchse_D-Serie
  • EUT-_Einbaubuchse_D-Serie
0.01...230 MHz

DIN5 GND:PIN1

A
 CDN S8 RJ45
  • AE_Einbaubuchse_D-Serie
  • EUT-_Einbaubuchse_D-Serie
0.01...230 MHz RJ45     A
 CDN S9 SUBD
  • AE-Sub-D
  • EuT-Sub-D
 0.01...230 MHz Sub-D 9 pol.     A
 CDN S9 USB3.0
  • AE_Einbaubuchse_D-Serie
  • EUT-_Einbaubuchse_D-Serie
 0.15...230 MHz  USB 3.0     A
 CDN S15 VGA
  • AE-Sub-D
  • EuT-Sub-D
0.01...230 MHz VGA A
 CDN S19 HDMI
  • AE_Einbaubuchse_D-Serie
  • EUT-_Einbaubuchse_D-Serie
 0.01...230 MHz  HDMI     A
 CDN S24 USB-C
  • AE_Einbaubuchse_D-Serie
  • EUT-_Einbaubuchse_D-Serie
 0.15...230 MHz  USB-C     A
 CDN S25 SUBD
  • AE-Sub-D
  • EuT-Sub-D
 0.15...230 MHz  Sub-D 25 pol.     A



CDN T-type - Unscreened balanced lines



Product  Drawing Frequency range EUT/AE
connector type
Max. Current rating Input Voltage
EUT
Case size
 AE Port EUT Port
 CDN T2
  • AE-2-Banana
  • EuT-2-Banana
0.01...230 MHz

4 mm safety
banana sockets

 0.25 A A
 CDN T2 16A
  • AE-2-Banana
  • EuT-2-Banana
0.01...230 MHz

4 mm safety
banana sockets

16 A A
 CDN T4
  • AE-4-Banana
  • EuT-4-Banana
0.01...230 MHz 4 mm safety
banana sockets
 0.25 A A
 CDN T4 4A
  • AE-4-Banana
  • EuT-4-Banana
0.01...230 MHz 4 mm safety
banana sockets
 4 A A
 CDN T4 RJ45
  • AE_Einbaubuchse_D-Serie
  • EUT-_Einbaubuchse_D-Serie
0.01...230 MHz RJ 45
0.25 A A
 CDN T8 RJ45
  • AE_Einbaubuchse_D-Serie
  • EUT-_Einbaubuchse_D-Serie
0.15...230 MHz RJ 45 0.25 A A

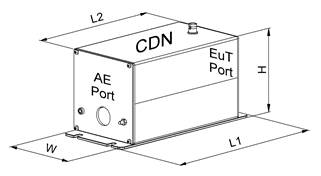

CDN Case Size







 CDN dimensions
 Length L1
 Lenght L2
 Width W
 Height H
 Case A
225 mm 216 mm 105 mm 108 mm
 Case B
305 mm 266 mm 105 mm 107 mm
 Case C
290 mm 251 mm 165 mm 167 mm
 Case D
-
107 mm 105 mm 48 mm

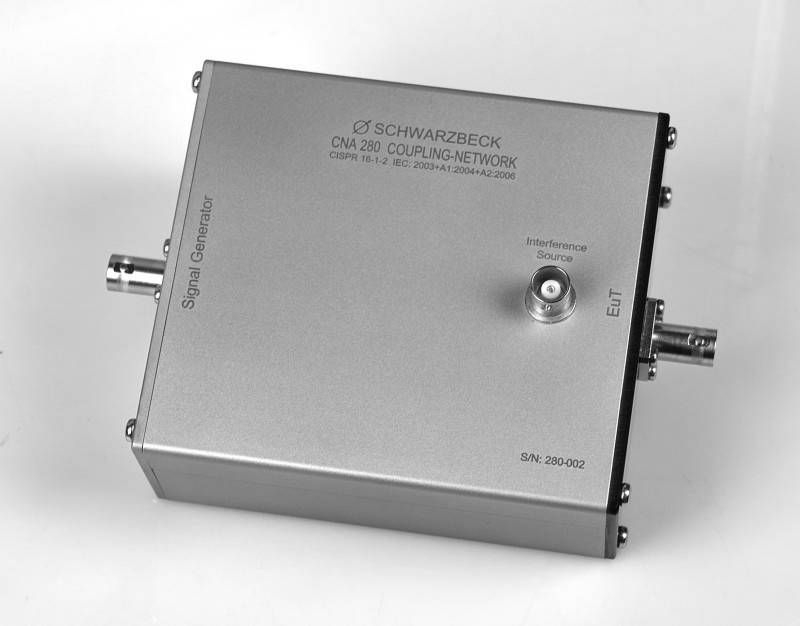

A-Type CDN for coaxial antenna inputs


  • Schwarzbeck CNA 280
 CNA 280



  • The CNA280 meets the specifications of the standard CISPR 16-1-2 A1, figure C1 (unit type A) and CISPR 16-1-3, app. B,Fig. 9.



  • It is also required to calibrate EMI absorbing clamps like the MDS 21.







pdficon small Datasheet CNA 280
