Coaxial Cables





AK 9513



50 Ohm Coax. Cable with N plugs

individual length

usable up to 3 (5) GHz

Indiv. Cal. possible if cable longer than 3 m

Standard lengths: 3 m, 5 m, 10 m



pdficon small Datasheet AK 9513







  • 9515e

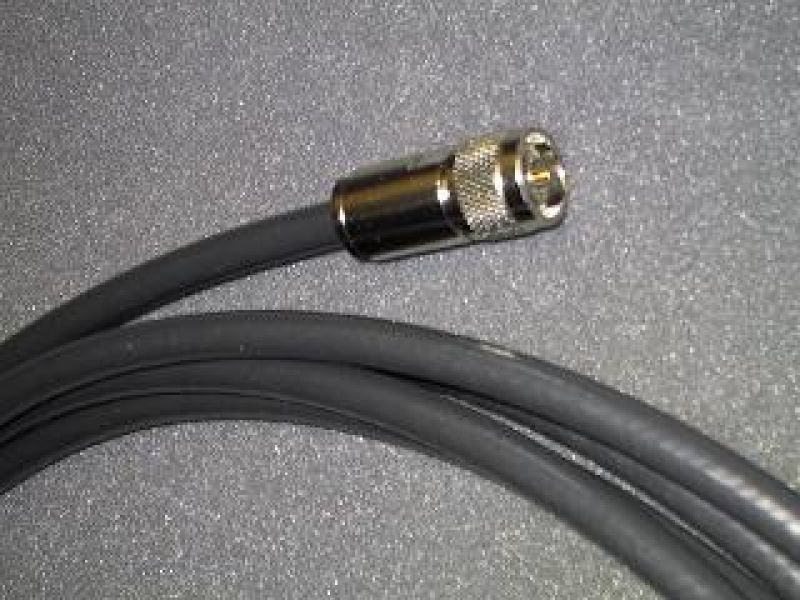

AK 9515 E



50 Ohm Coaxial Cable with N plugs

low loss

good flexibility

usable up to 10 GHz

10.8 mm diam.

Indiv. Cal. possible if cable longer than 1 m



pdficon small Datasheet AK 9515 E






AK 9515 G



50 Ohm Coaxial Cable available with N- or 7/16-plugs

very low loss

high power

good flexibility

usable up to 6 GHz

14.6 mm diam.

Indiv. Cal. possible if cable longer than 1 m



pdficon small Datasheet AK 9515 G






  • 9515h

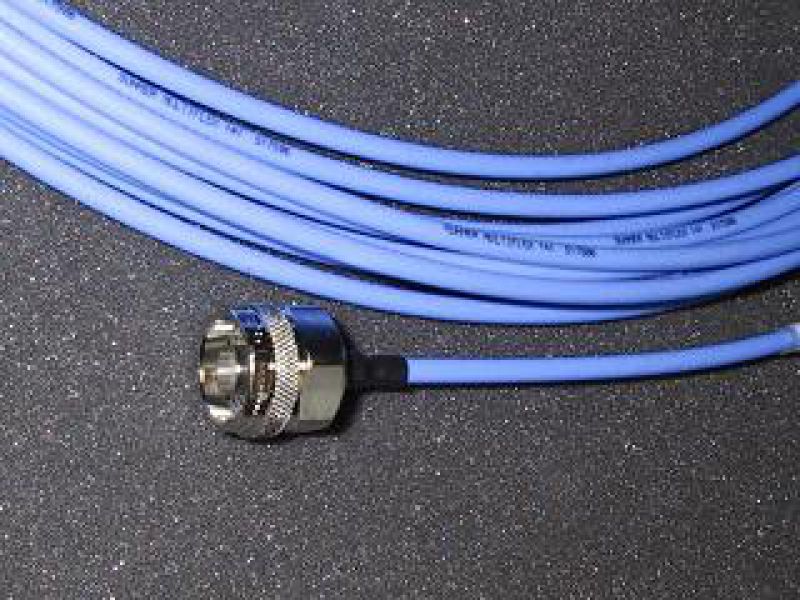

AK 9515 H



50 Ohm Microwave Coaxial Cable with N- or SMA connectors

low loss

flexible

usable up to 18 GHz.

Indiv. Cal. possible if cable longer than 1 m



pdficon small Datasheet AK 9515 H





  • AK 9540 B - Coaxial Cable

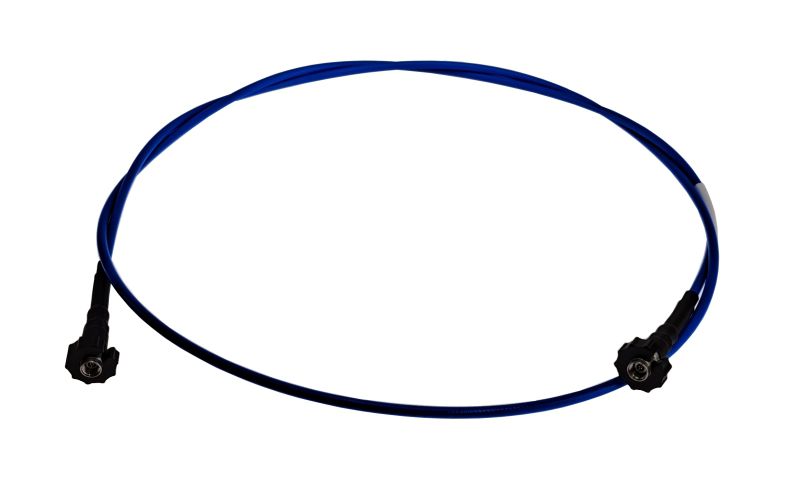

AK 9540 B



AK 9540 B has low losses in the frequency range up to 40 GHz. The flexibility is sufficient for applications with changing cable geometries and over 500 cycles of operation. The inner conductor consists of in total 19 silver-plated copper wires each wire with a diameter of 0.2 mm. The low-loss dielectric material is based on extruded LD(low density) - PTFE. The outer conductor consists of two layers: a silverplated copper-foil surrounded by a silverplated copper braid. The inner contact of the 2.92 mm plugs consists of gold-plated CuBe alloy, the outer plug contact of stainless steel.


pdficon small Datasheet AK 9540 B







  • Schwarzbeck MSS 9630 Sheath Current Choke for Coaxial Cables

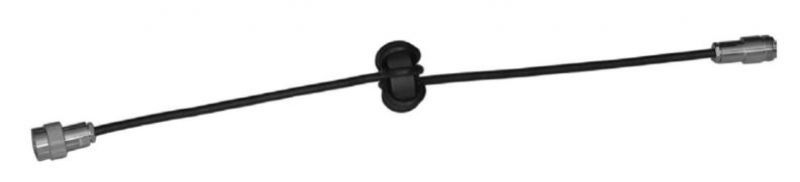

MSS 9630



Sheath current blocking cable to avoid coupling

effects caused by braid currents.

Standard configuration:

N-male, N-female, length ca. 0.3 m



pdficon small Datasheet MSS 9630
