Pulse Generators

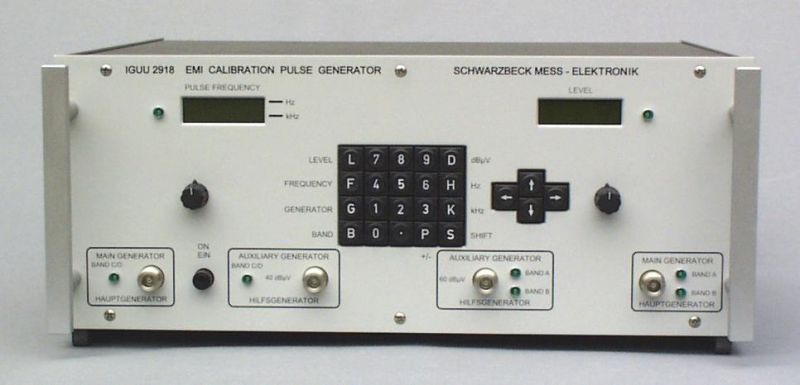

  • Schwarzbeck IGUU 2918 EMI Calibration Pulse Generator

IGUU 2918



Calibration-Pulse Generator

acc. CISPR 16

for Band A, B, C, D

(9 kHz-1000 MHz)

To calibrate the pulse

response of EMI receivers.

Pulse repetition frequency main generator 0.1 - 200 Hz (aux. generator up to 1 MHz) with IEEE-488 Interface.

pdficon small Datasheet IGUU 2918

pdficon small Difference between IGUU 2918 and IGUU 2916



Options:

Opt. RecTest Softw.

Receiver Test Software

for IGUU 2916 or 2918 signal generator and EMI-receiver

to perform an automatic calibration

of an EMI receiver acc. to CISPR 16-1-1.

pdficon small Datasheet IGUU 2918 Opt. RecTest Softw.



Opt. KU 9618

Coaxial Switching Unit for automatic performance tests with IGUU 2918, N-Connectors female.

pdficon small Datasheet IGUU 2918 Opt. KU 9618








 Discontinued Product!

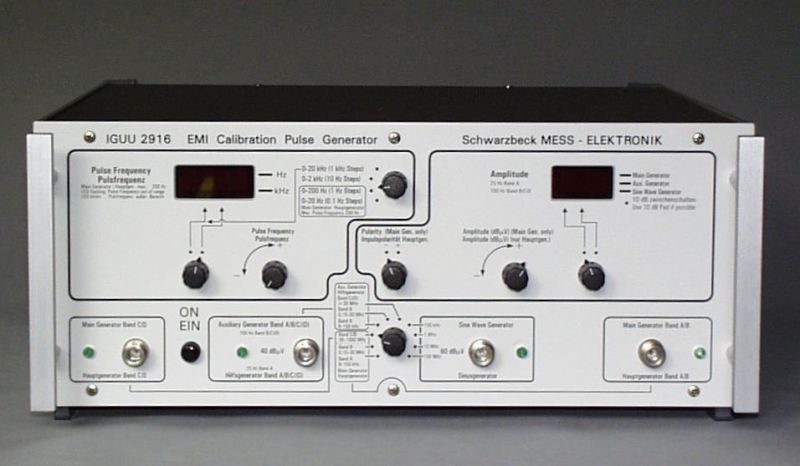

  • Schwarzbeck IGUU2916 EMI Calibration Pulse Generator



IGUU 2916



Universal Calibration Pulse Generator

acc. CISPR 16 for Bands A, B, C, D

(9 kHz - 1000 MHz)

especially for EMI Receiver Tests

(Pulse weighting, Overload)

Signal generator

100 kHz, 1 MHz, 10 MHz, 100 MHz (60 dBµV)

Pulse Repetition Frequency

0.1 Hz - 200 Hz (20 kHz)

Output Level adjustable in 1 dB steps

GPIB-Interface.



pdficon small Datasheet IGUU 2916

pdficon small Manual IGUU2916

pdficon small Difference between IGUU 2918 and IGUU 2916



Options:

Opt. RecTest Softw.

Receiver Test Software

for IGUU 2916 or 2918 signal generator

and EMI-receiver to perform an automatic

calibration of an EMI receiver

acc. to CISPR 16-1-1



pdficon small Datasheet IGUU 2916 Opt. RecTest Softw.





Opt. KU 9616

Coaxial Switching Unit

for automatic performance tests

with IGUU 2916

N-Connectors female



pdficon small Datasheet IGUU 2916 Opt. KU 9616







IGUF 2910



Battery driven High Power Pulse Generator

Pulse Repetition Frequency 300 Hz

weighted CISPR Level 80 dbµV

(Quasipeak, 120 kHz IF-BW)

Broad band signal source

up to 300 (1000) MHz

w. 0.5 ns Pulses of 300 V at 50 Ohm



pdficon small Datasheet IGUF 2910






LGA 9802



Automatic Charging Unit 230 V for IGUF 2910

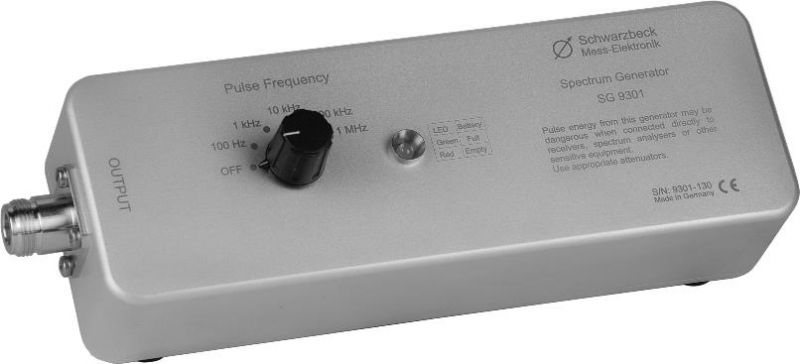

  • Schwarzbeck SG 9301 Spectrum Generator



SG 9301



Spectrum Generator

30-1000 MHz

spectrum lines switchable 100 Hz - 1 MHz

N-female connector

charger ACS 110 required

main application:

reference radiator (antenna required e.g. UBAA 9114 with BBVU 9135)



pdficon small Datasheet SG9301

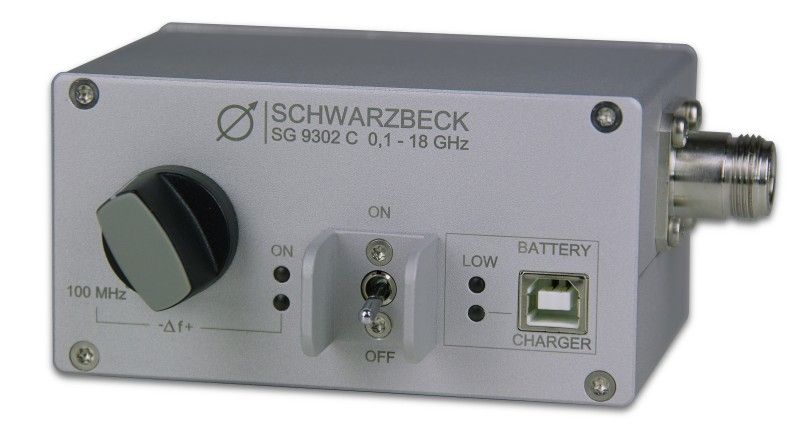

  • SG 9302 C



SG 9302 C



The comb-generator SG 9302 C produces a frequency spectrum consisting of lines with 100 MHz spacing up to 18 GHz. In combination with an antenna it can be used as an emission source for testing open area test sites, anechoic chambers or GTEM-cells. Single components like measuring receivers, spectrum analysers, cables and attenuators can be tested as well.





 Frequency range:  0.1 - 18 GHz

 Frequency error:

 ±1.5x10-6 (-20°C - +70°C)
 Connector:   N, 50 Ω
 Dimension BxHxT:  105 x 80 x 130 mm
 Typ. operation time:  8 h
 Power supply:  3.7 V, 2.6 Ah LiOn
 Weight (incl. battery):  430 g




pdficon small Datasheet SG9302C

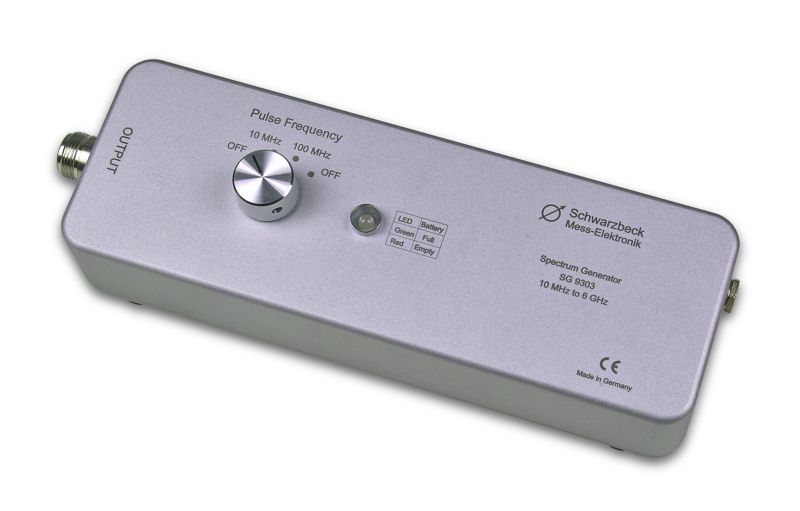

  • Spectrum Generator SG 9303



SG 9303 - Comb Generator, 6 GHz



The comb generator SG 9303 is battery powered. It provides a frequency comb up to more than 8 GHz. The spacing between the spectral lines can be switched between 10 MHz and 100 MHz. A quartz crystal provides accurate frequencies. Due to its handy size and little weight as well as the mains independent power supply the SG 9303 is a great reference radiation source. In conjunction with a transmit antenna the comb generator plays the role of an artificial reliable EuT, while the rest of the fieldstrength measurement setup, consisting of receive antenna, cable, preamplifier and receiver or spectrum analyzer can be verified.



The SG 9303 is also suitable to check the functionality of EMI test receiver or spectrum analyzers. Cables and attenuators can also be tested.



 Frequency range:  1 GHz - 6 GHz
 Usable Frequency range:  10 MHz - 8 GHz

 Puls duration at 10 MHz:

 ca. 60 ns

 Puls duration at 100 MHz:

 ca. 7 ns

 Puls frequencies:

 10 MHz, 100 MHz

 Connector:

 N female 50 Ω

 Frequency error:

 typ. 20 ppm

 Operating time:

 8 h
 Weight:  690 g



pdficon small Datasheet SG9303
