BBHA 9120 A - Double Ridged Broadband Horn Antenna

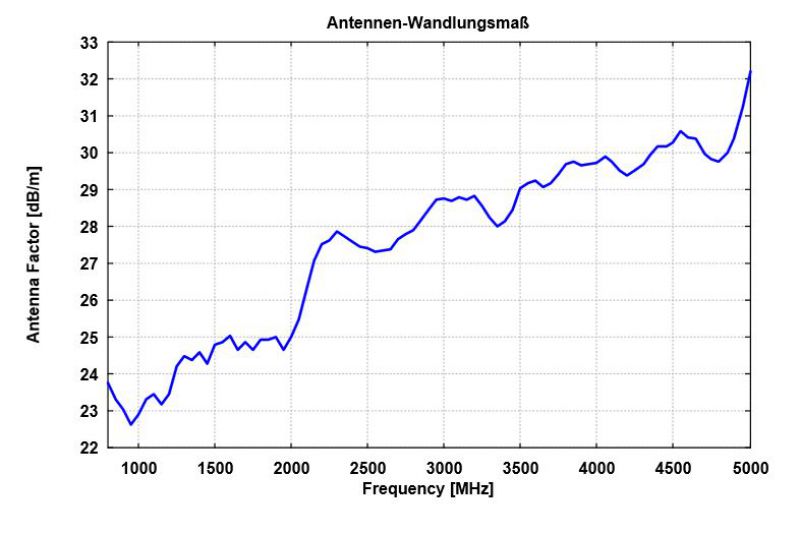

  • BBHA 9120 A - Typical Antenna Factor

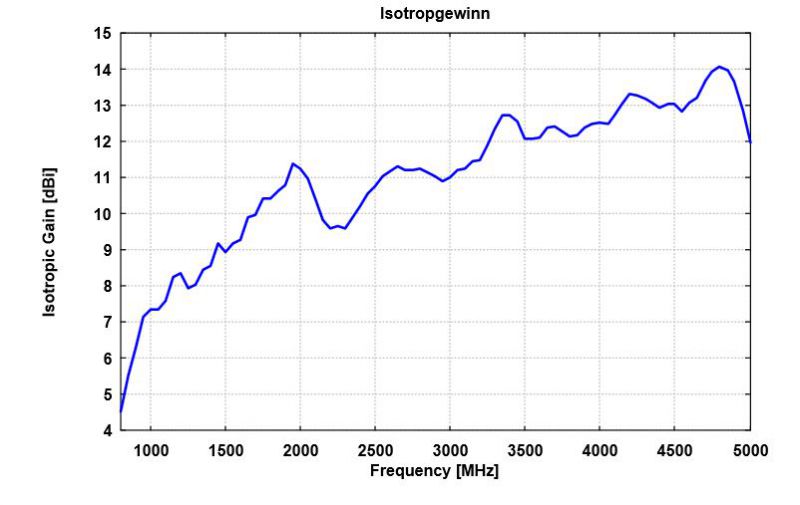

  • BBHA 9120 A - Typical Gain
  • Schwarzbeck Broadband Horn Antenna BBHA 9120A

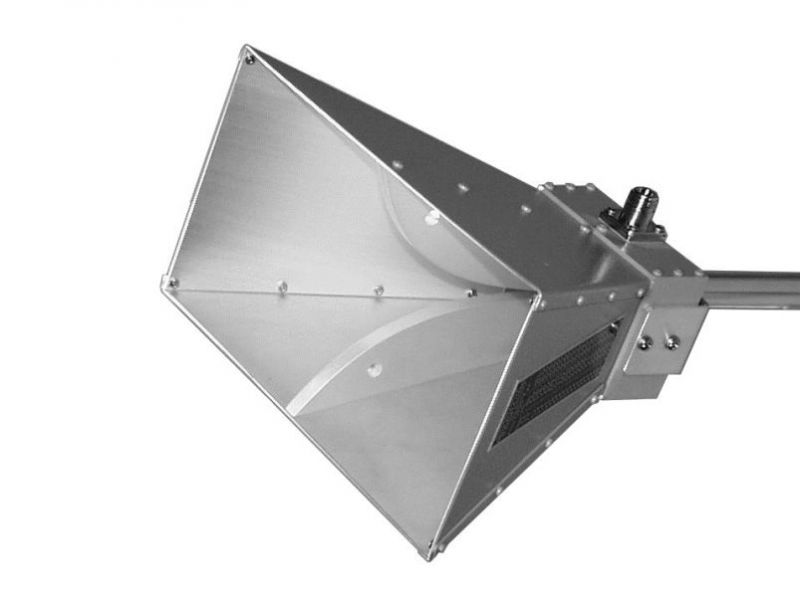

The broadband horn antenna BBHA 9120 A is a linear polarized double ridged horn antenna for the frequency range 800 MHz to 5 (10) GHz.







Frequency Range, nominal: 1 GHz - 5 GHz
Usable Frequency Range: 0.8 MHz - 10 GHz
Polarisation: linear
Pattern Type: directional
Material: Aluminium
Max Power: see diagram
Connector: N
Impedance: 50 Ω nominal
Length: 220 (408) mm
Width: 245 mm
Height: 142 mm
Weight: 1.3 kg
Mounting: 22 mm Tube





Datasheet BBHA 9120A



pdficon small Radiation Pattern
