BBHA 9120 C - Double Ridged Broadband Horn Antenna

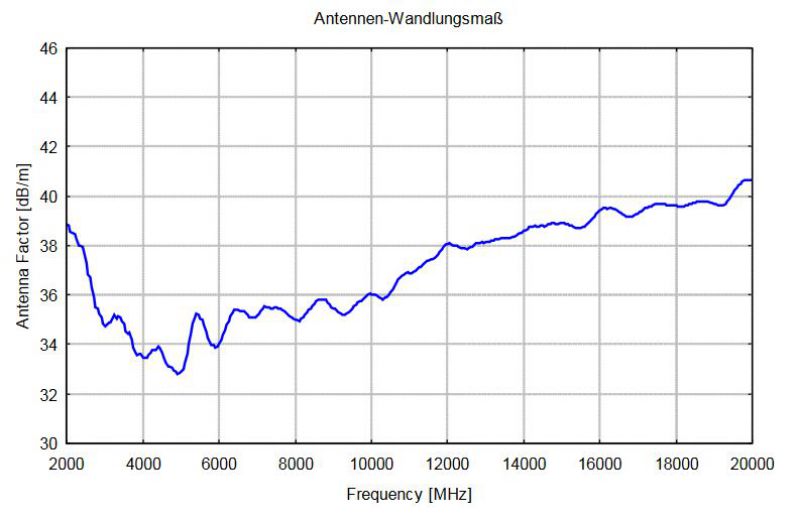

  • BBHA 9120 C - Typical Antenna Factor

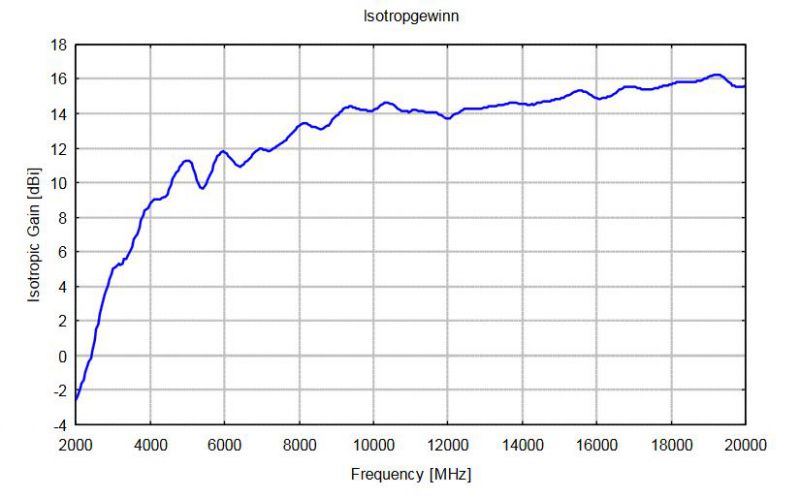

  • BBHA 9120 C - Typical Gain

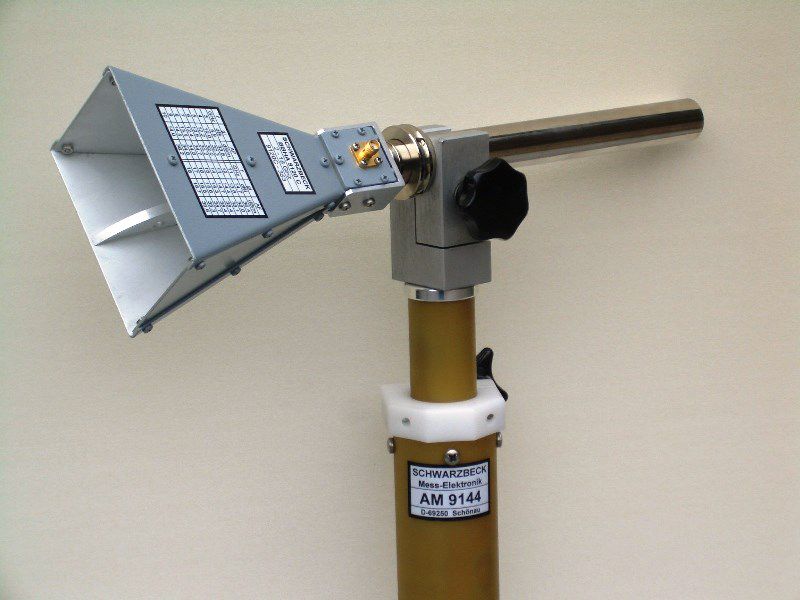

  • Schwarzbeck Broadband Horn Antenna BBHA9120c



The broadband horn antenna BBHA 9120 C is a linear polarized double ridged horn antenna for the frequency range 2 GHz to 18 (20) GHz.







Frequency Range, nominal: 2 GHz - 18 GHz
Usable Frequency Range: 2 GHz - 20 GHz
Polarisation: linear
Pattern Type: directional
Material: Aluminium
Max Power:

100 W (intermitt.)
  50 W (const.)

Connector: SMA - female
Impedance: 50 Ω nominal
Length: 140 (345) mm
Width: 98 mm
Height: 69 mm
Weight: 0.5 kg
Mounting: 22 mm Tube
Recommended Adapter:

AA 9202, AA9202 POM,
AA 9203, RA9215



Datasheet BBHA 9120C



Radiation Pattern
