Single path LISN (Automotive) CISPR 25 / ISO 7637




  • Schwarzbeck NNBM 8124

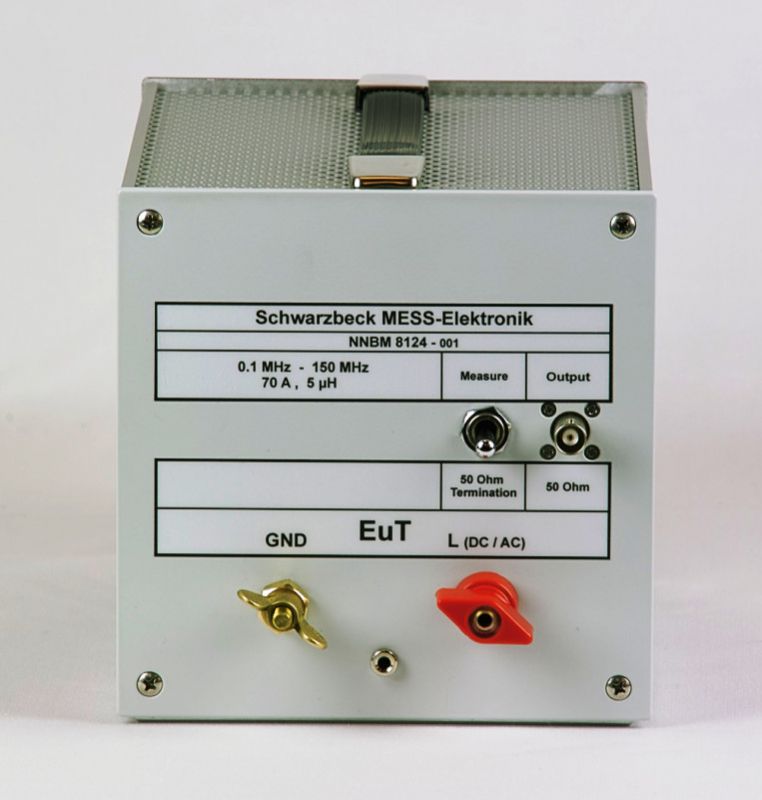

NNBM 8124



Automotive LISN acc. CISPR 25 and ISO 7637-2 and for BCI-Testing

Impedance (5µH + 1 Ohm) || 50 Ohm

Max. 70 (100) A

With switchable 50 Ohm load and switchable 1 mikrofarad capacitor at mains side

single path

BNC female connector



Option N connector:

N-female connector instead of BNC.



pdficon small Datasheet NNBM 8124

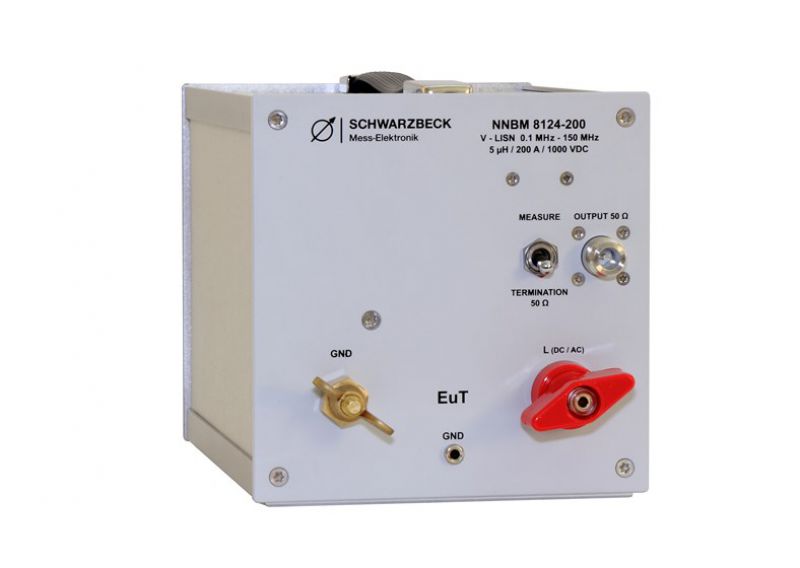

  • NNBM 8124-200



NNBM 8124-200



Automotive LISN acc. CISPR 25 and ISO 7637-2 and for BCI-Testing

Impedance (5µH + 1 Ohm) || 50 Ohm

Max.200 A

With switchable 50 Ohm load and switchable 1 mikrofarad capacitor at mains side, single path

BNC female connector



Option N connector:

N-female connector instead of BNC



Datasheet NNBM 8124-200

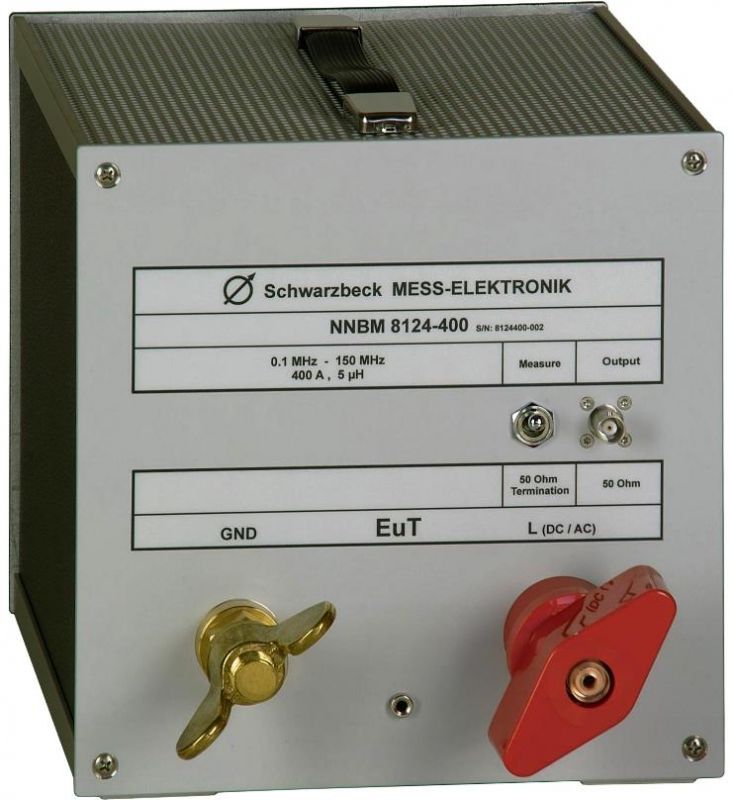

  • Schwarzbeck NNBM 8124-400 LISN_1
  • Schwarzbeck NNBM 8124-400 LISN_2

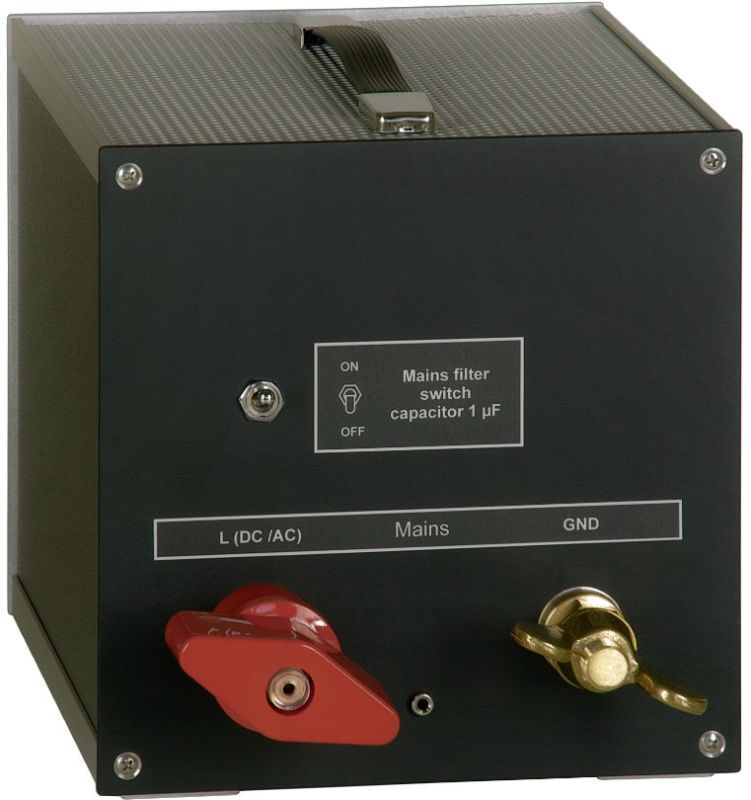

NNBM 8124-400



Automotive LISN acc. CISPR 25 and ISO 7637-2 and for BCI-Testing

Impedance (5µH + 1 Ohm) || 50 Ohm

Max. 400 A. With switchable 50 Ohm load and switchable 1 mikrofarad capacitor at mains side, single path

BNC female connector



Option N connector:

N-female connector instead of BNC.



Datasheet NNBM 8124-400

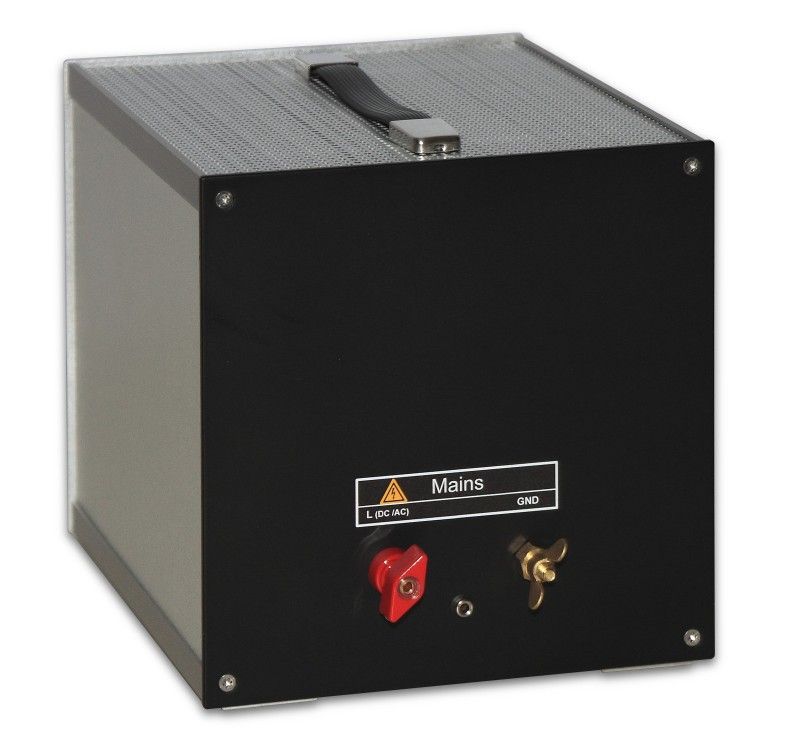

  • NNBM8126A890
  • NNBM8126A890_

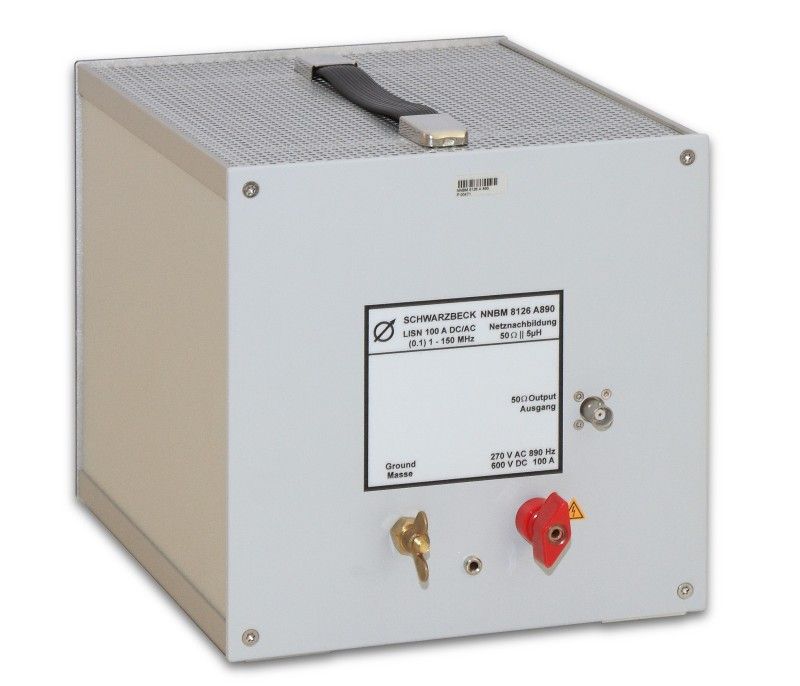

NNBM 8126 A 890



LISN 5 µH || 50 Ohm

70 (100) single path

Suitable for 600V DC and 270 V AC 890 Hz

Calibrated up to 400 MHz according to DO-160



Datasheet NNBM 8126 A 890









BAN Broadband Artificial Networks acc. ISO 11452-7 or DC-10614



  • Schwarzbeck BAN 8508

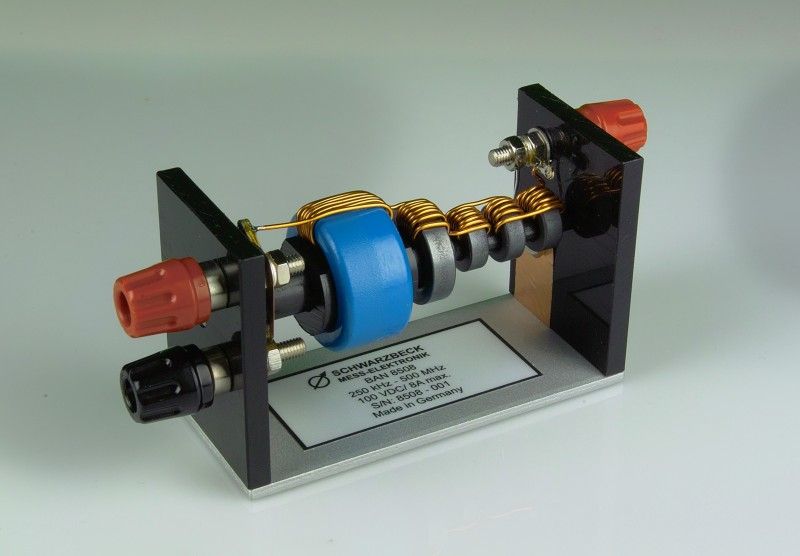

BAN 8508



BAN broadband artificial network

2 A - 8 A

acc. ISO 11452-7 or DC-10614



Datasheet BAN 8508

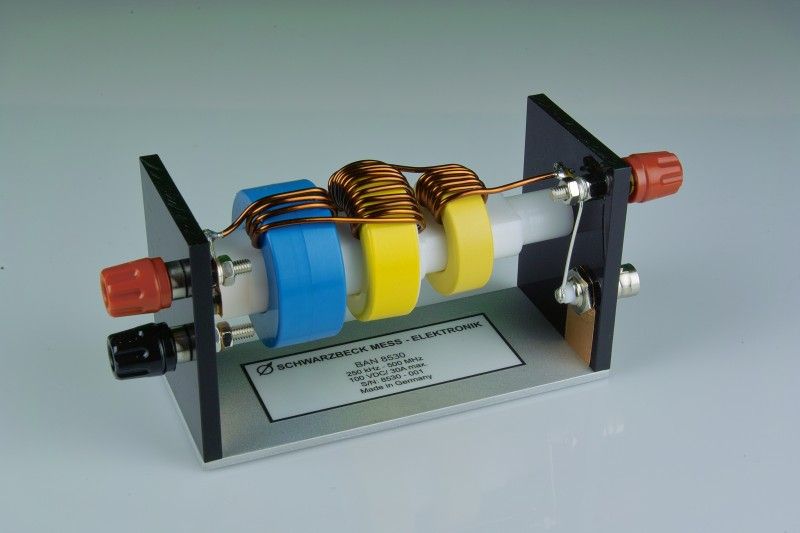

  • Schwarzbeck BAN 8530



BAN 8530



BAN broadband artificial network

8 A - 30 A

acc. ISO 11452-7 or DC-10614



Datasheet BAN 8530





  • Schwarzbeck CD-Block 500



DC-Block 500



DC-blocking capacitor

BNC

for direct injection with BAN



Datasheet DC-Block 500







HV-LISN acc. to CISPR 25 Ed. 4 or BMW GS 95025-1




  • Schwarzbeck NNHV 8123
  • Schwarzbeck NNHV8123

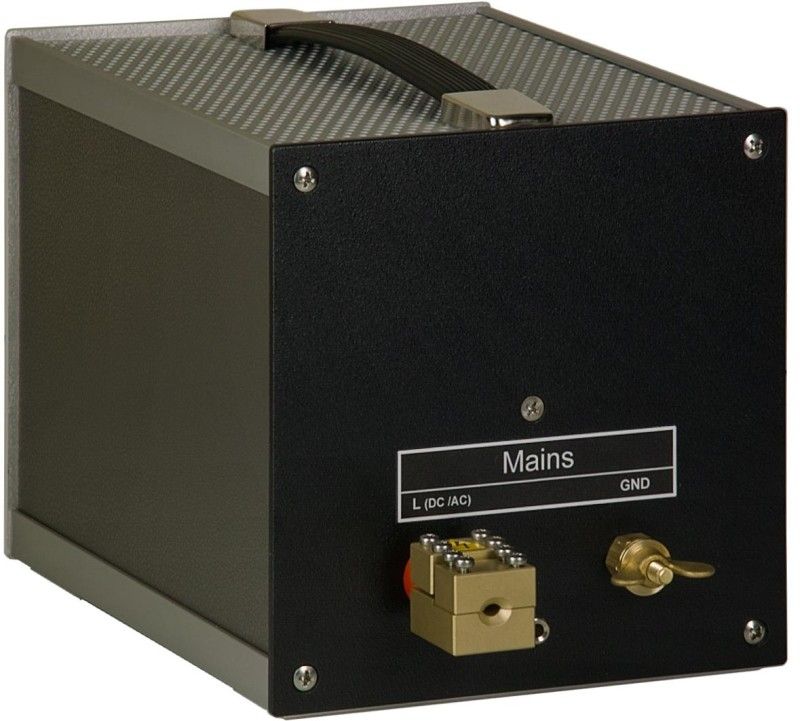

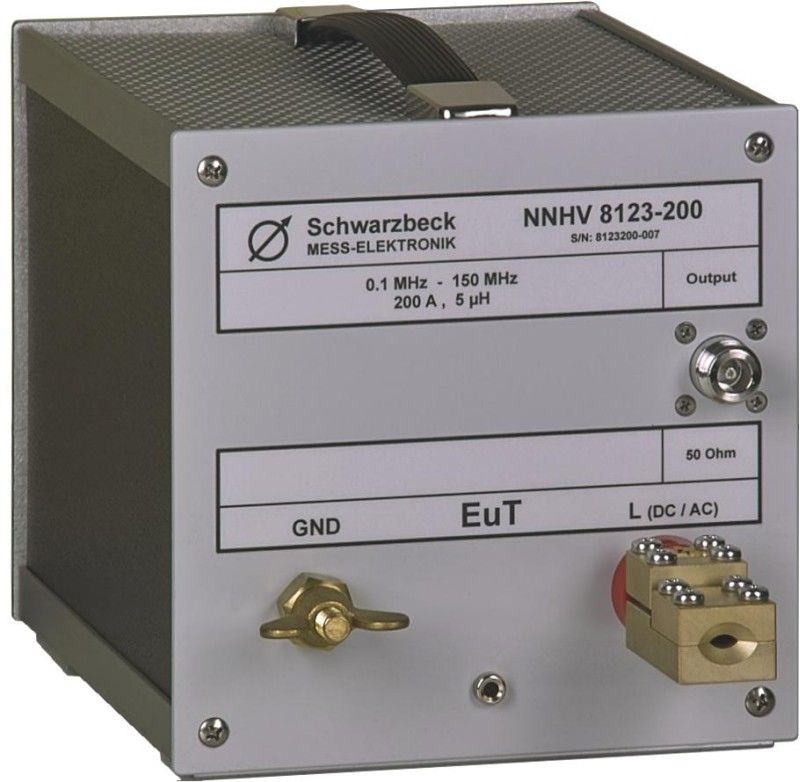

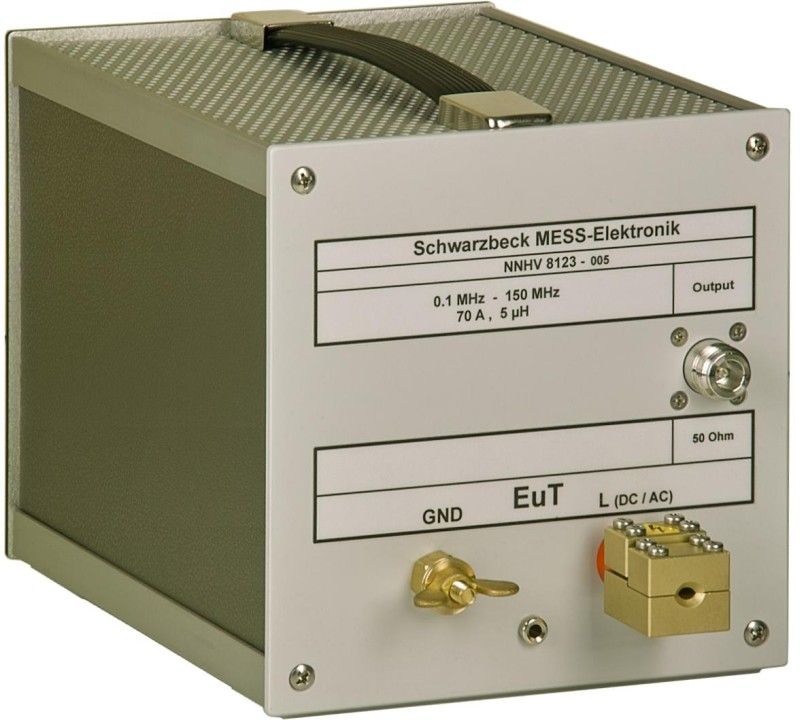

NNHV 8123



High Voltage LISN acc. to CISPR 25 Ed. 4 or BMW GS 95025-1

to measure the conducted disturbance voltage on shielded lines for (hybrid) electric vehicles (HEV, EV),

can be used for BCI with an external dummy load

impedance (5µH) || 50 Ohm

70 (100) A

1000 V (DC)

Backside with built in 0.1 microfarad capacitor to ground

N-jack

Normally used in pairs inside the enclosure HVSE 8600!



pdficon small Datasheet NNHV 8123

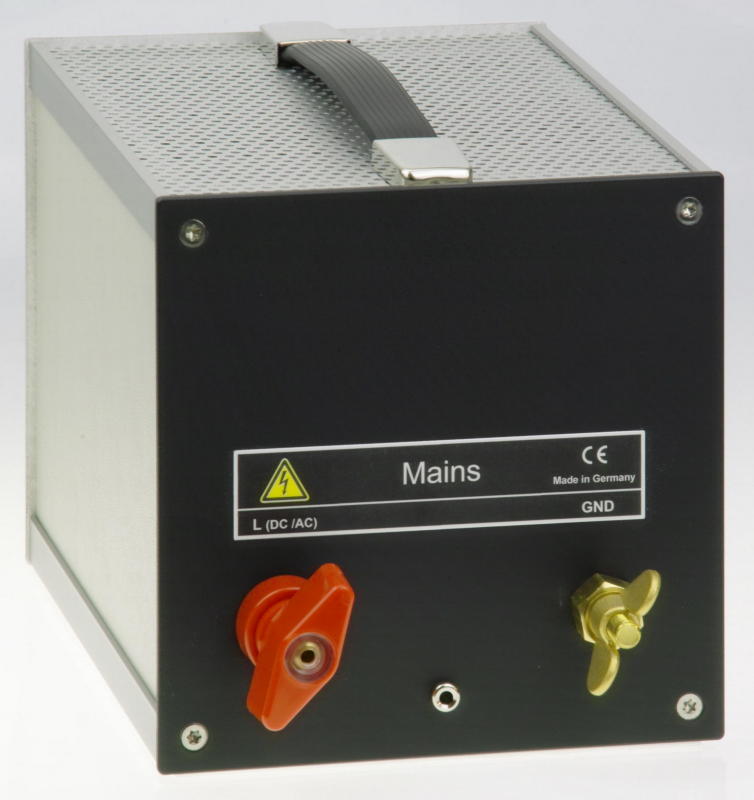

  • Schwarzbeck NNHV 8123-200_1
  • Schwarzbeck NNHV 8123-200_2

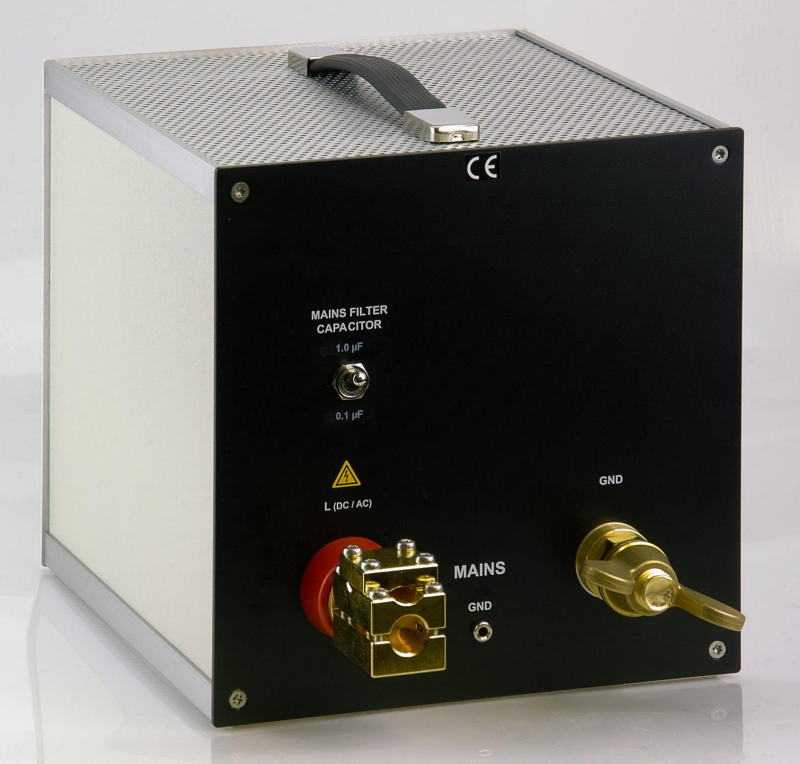

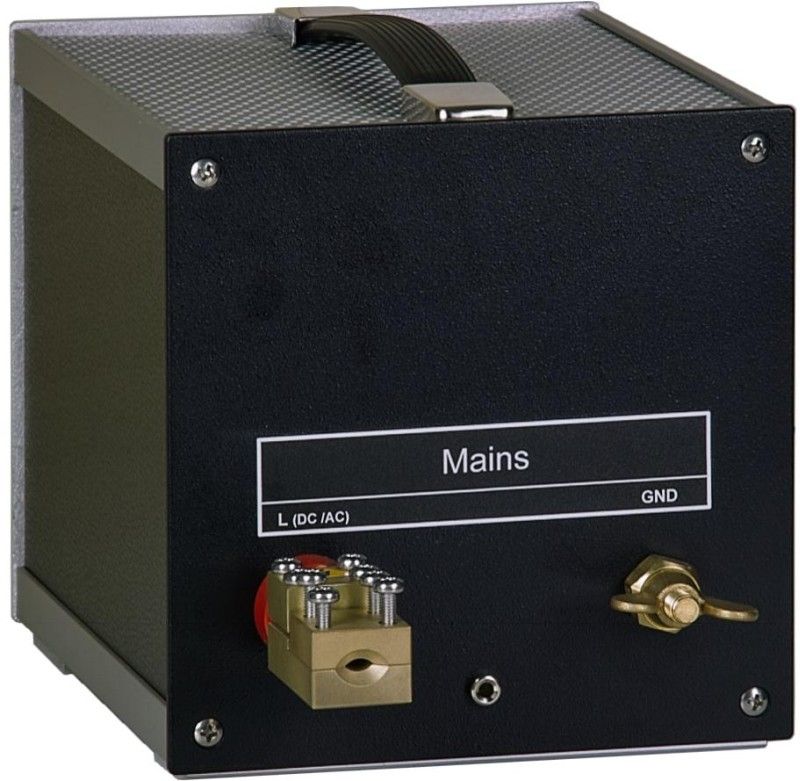

NNHV 8123-200



High Voltage LISN acc. to CISPR 25 Ed. 4 or BMW GS 95025-1

to measure the conducted disturbance voltage on shielded lines for (hybrid) electric vehicles (HEV, EV),

can be used for BCI with an external dummy load.

impedance (5µH) || 50 Ohm

200 A

1000 V DC

Backside with built in 0.1 microfarad capacitor to ground

N-jack

Normally used in pairs inside the enclosure HVSE 8600!



pdficon small Datasheet NNHV8123-200

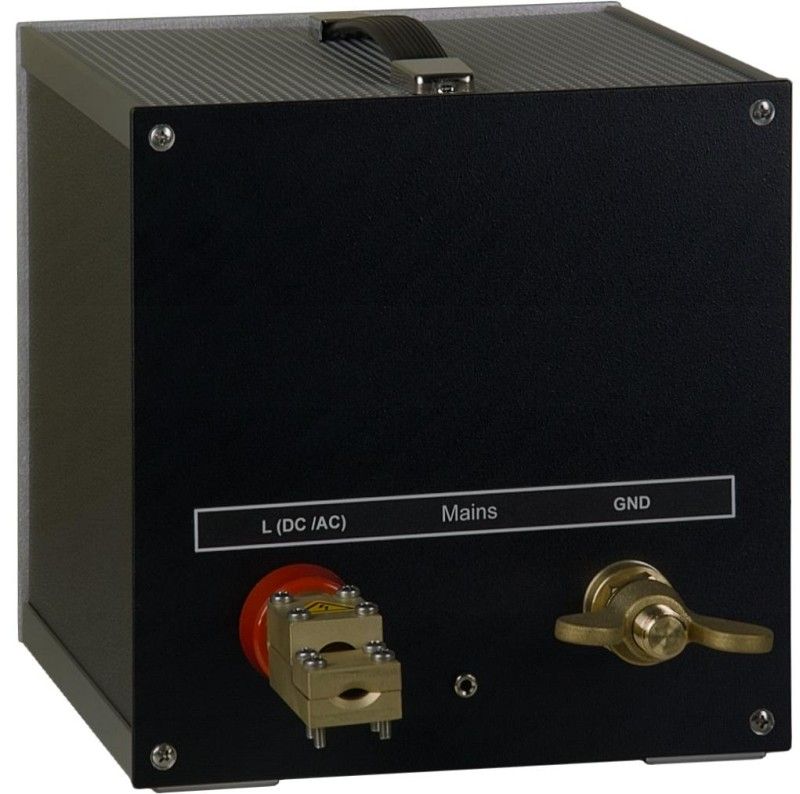

  • Schwarzbeck NNHV 8123-400_1
  • Schwarzbeck NNHV 8123-400_2

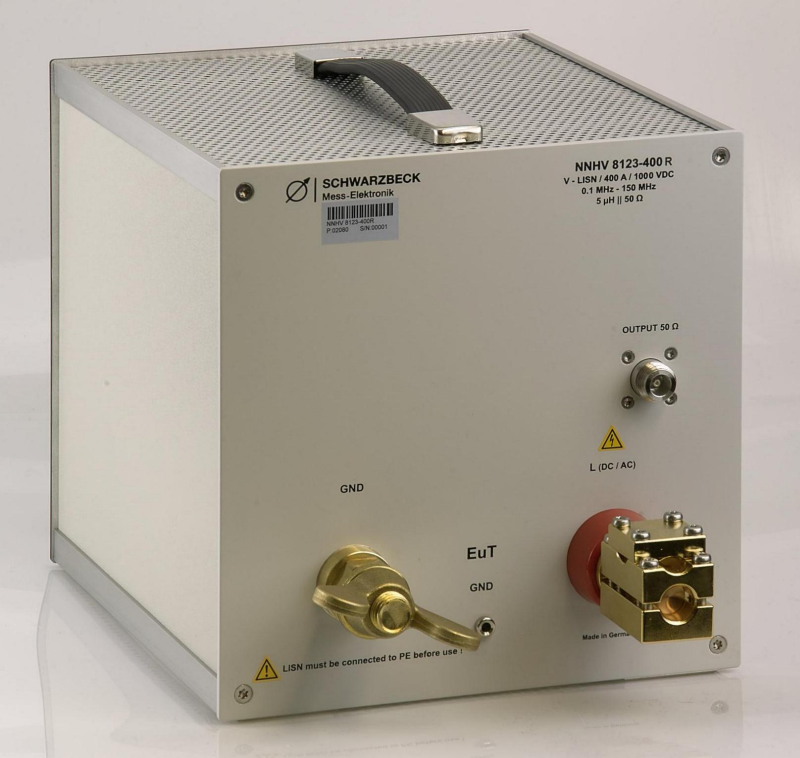

NNHV 8123-400





High Voltage LISN acc. to CISPR 25 Ed. 4 or BMW GS 95025-1

to measure the conducted disturbance voltage on shielded lines for (hybrid) electric vehicles (HEV, EV),

can be used for BCI with an external dummy load.

impedance (5µH) || 50 Ohm

400 A

1000 V (DC)

Backside with built in 0.1 microfarad capacitor to ground

N-jack

Normally used in pairs inside the enclosure HVSE 8600!



pdficon small Datasheet NNHV8123-400





NEW

  • NNHV 8123-800
  • NNHV8123-800

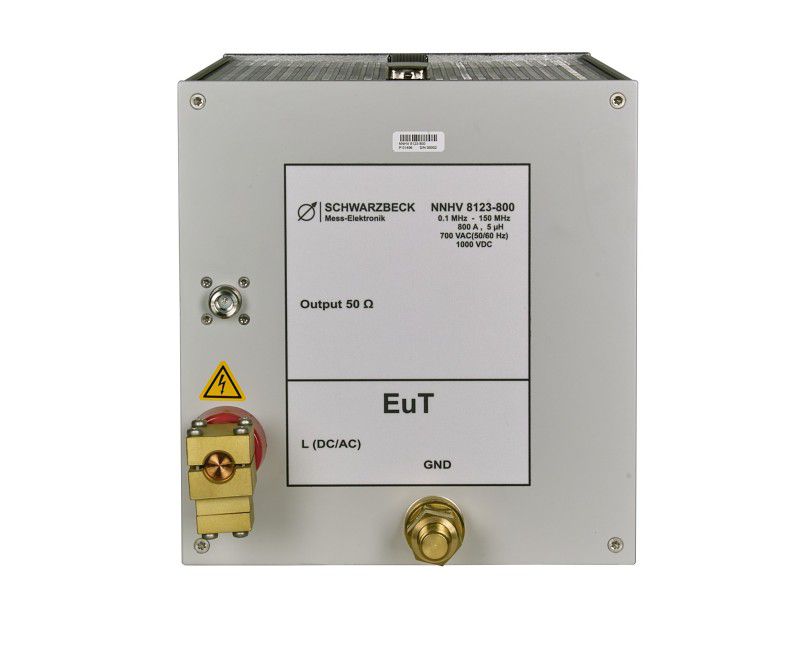

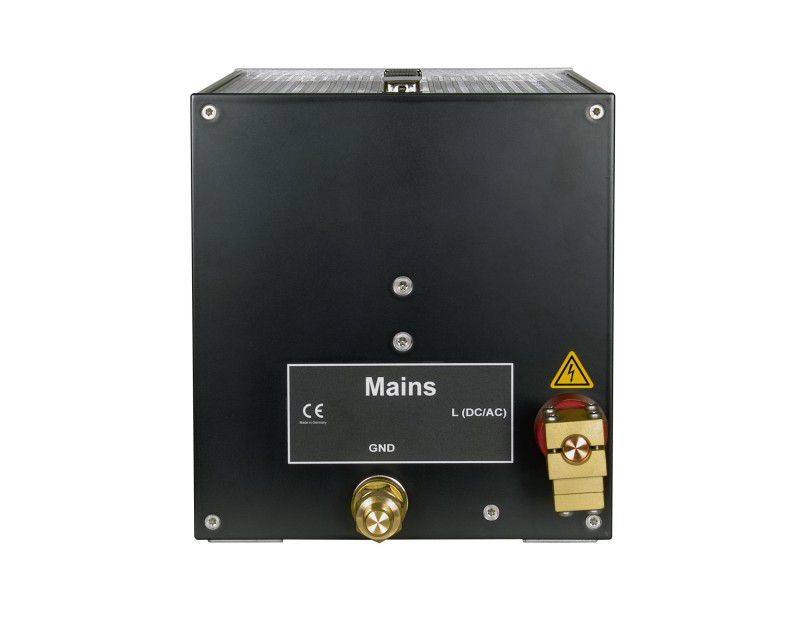

NNHV 8123-800



High Voltage LISN acc. to CISPR 25 Ed. 4 or BMW GS 95025-1

to measure the conducted disturbance voltage on shielded lines for (hybrid) electric vehicles (HEV, EV),

can be used for BCI with an external dummy load.

impedance (5µH) || 50 Ohm

800 A

1000 V (DC)

Backside with built in 0.1 microfarad capacitor to ground

N-jack

Normally used in pairs inside the enclosure HVSE 8601!



pdficon small Datasheet NNHV8123-800





Accessories for automotive LISN

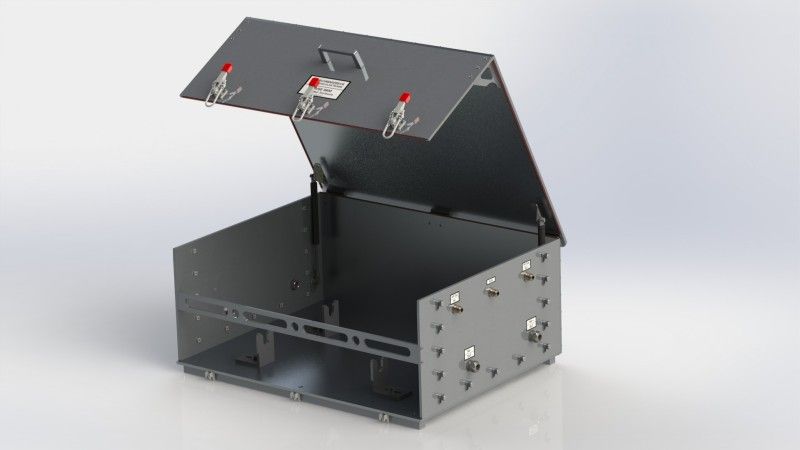

  • Schwarzbeck HVSE 8600 Shielded Enclosure for Automotive LISN
  • Schwarzbeck HVSE8600 Shielding Box for Automotive LISN
  • Schwarzbeck HVSE8600 Shielding Box

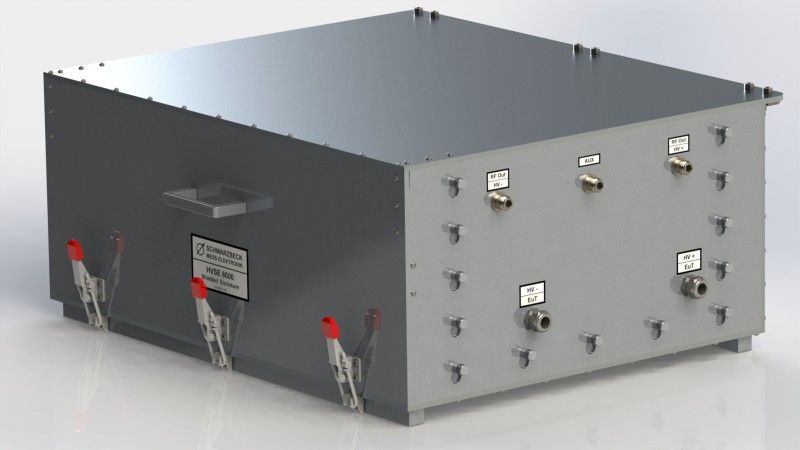

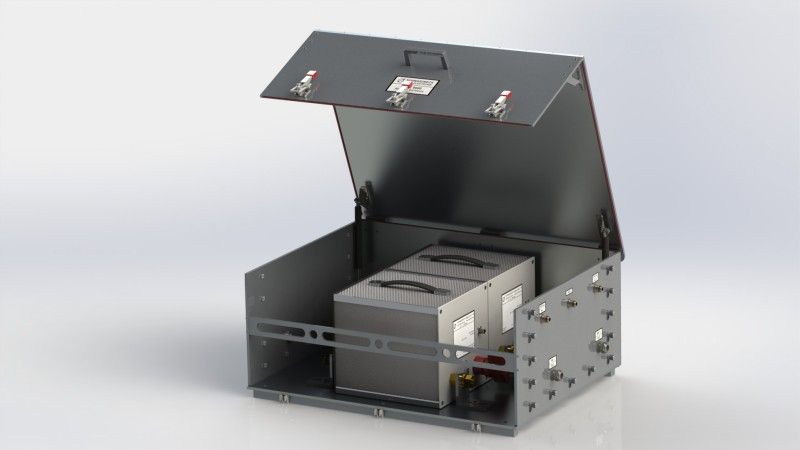

HVSE 8600 / HVSE 8601 Shielded Enclosure for Automotive LISN



The HVSE 8600 / HVSE 8601 Shielded Enclosure (Shielding Box) was designed to increase the shielding effectiveness of automotive LISN significantly, which is neccessary for measurements of electric- or hybrid vehicles.



Material: Aluminium



Shielding Effectiveness: typ. > 100 dB



HVSE 8600 is suitable for the following LISN types:

NNHV 8123,
NNHV 8123-200,
NNHV 8123-400

HVSE 8601 is suitable for NNHV 8123-800.



Further Information about the application of the shielded enclosure can be found in CISPR 25 Ed. 4 or e.g. in the manufacturer specific standard BMW GS 95025-1.



pdficon small Datasheet HVSE 8600

pdficon small Datasheet HVSE 8601

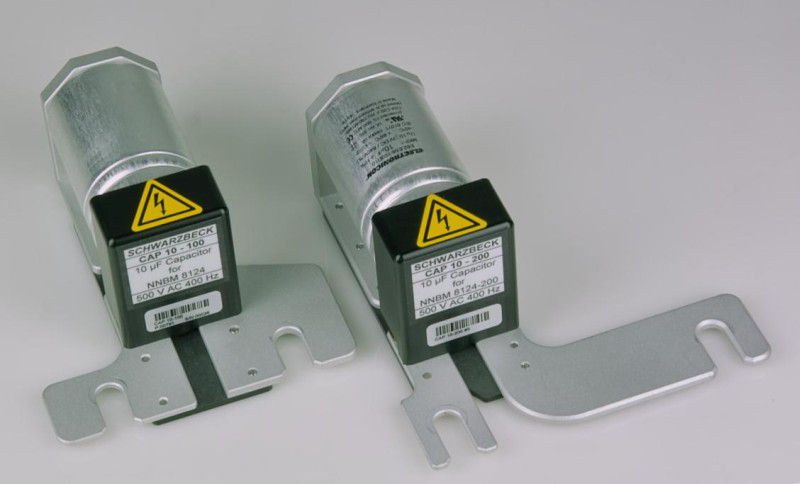

  • CAP10
  • CAP_10_8226-2

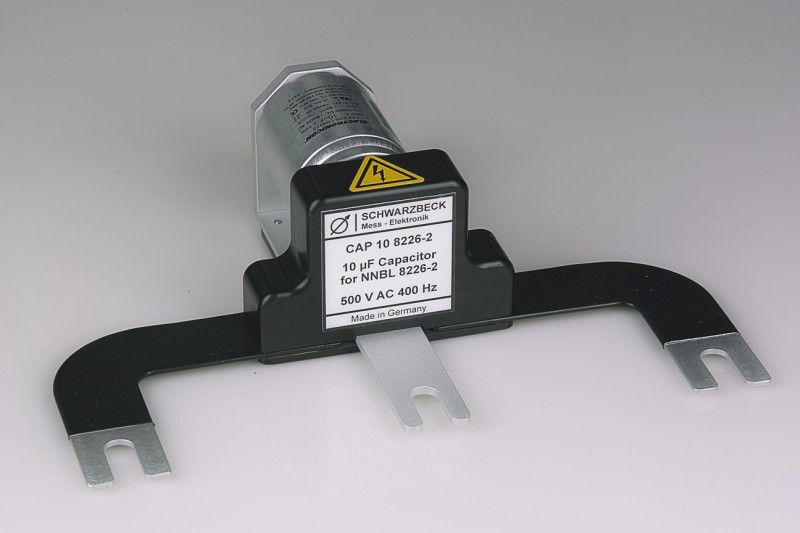

CAP 10 / CAP 10 8226-2



To be compliant to the standards DEF STAN 59 and DO 160 a 10 μF capacitor like the CAP 10 has to be connected to the mains connectors of the LISN.



pdficon small Datesheet CAP 10

pdficon small Datasheet CAP 10 8226-2








KA 812x



Calibration adapters for artificial mains networks AMN or LISN



pdficon small Datasheet KA 812x
