Accessories for LISN

  • CMDM 8700 B

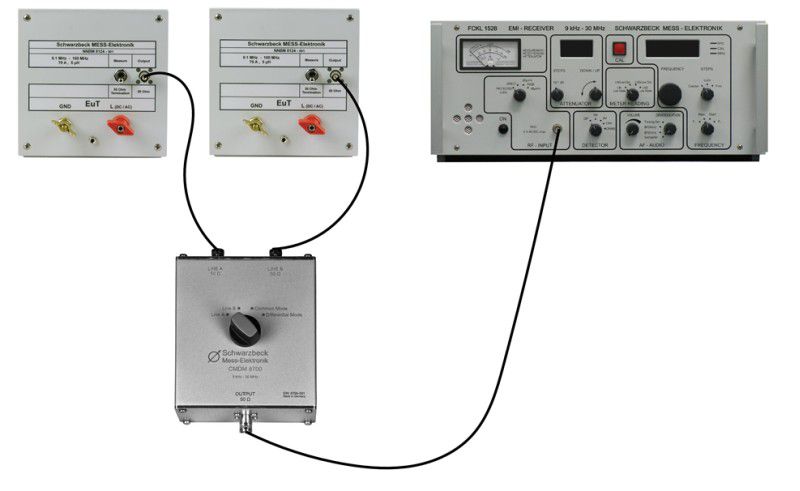

  • Schwarzbeck CMDM 8700 B - Typical measurement setup

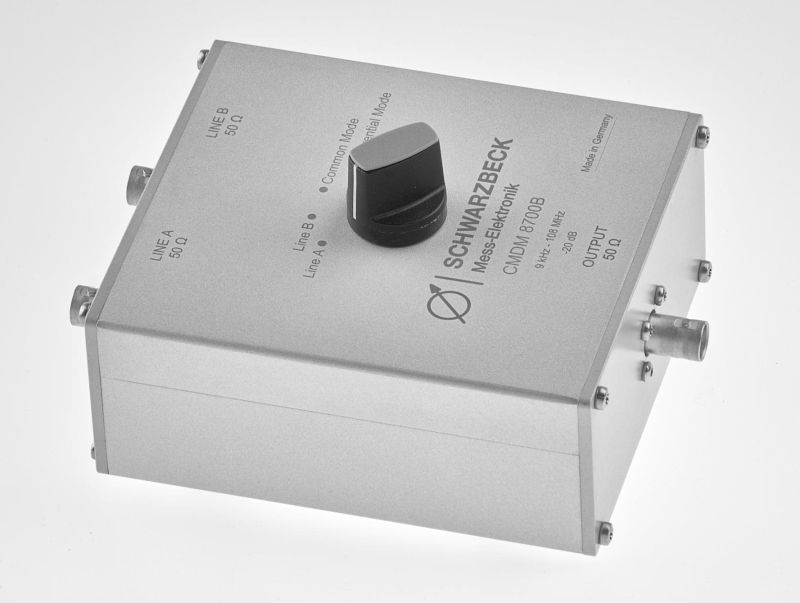

 CMDM 8700 Common mode / Differential mode switch



The measurement mode switch CMDM 8700 B expands the measurement possibilities of two V-LISN to T- and Delta-LISNs for the profound analysis of interference emissions.



Frequency range: 9 kHz - 108 MHz



Measurement modes: Line A, Line B, Common mode, Differential mode



Connectors: BNC (50 Ohm)



pdficon small Datasheet CMDM 8700 B




  • Schwarzbeck HVSE 8600 Shielded Enclosure for Automotive LISN
  • Schwarzbeck HVSE8600 Shielding Box for Automotive LISN
  • Schwarzbeck HVSE8600 Shielding Box



HVSE 8600 / HVSE 8601 Shielded Enclosure for Automotive LISN



The HVSE 8600 Shielded Enclosure (Shielding Box) was designed to increase the shielding effectiveness of automotive LISN significantly, which is neccessary for measurements of electric- or hybrid vehicles.



Material: Aluminium



Shielding Effectiveness: typ. > 100 dB



HVSE 8600 is suitable for the following LISN types:



NNHV 8123,
NNHV 8123-200,
NNHV 8123-400



HVSE 8601 is suitable for NNHV 8123-800



Further Information about the application of the shielded enclosure can be found in CISPR 25 Ed. 4 or e.g. in the manufacturer specific standard BMW GS 95025-1.



pdficon small Datasheet HVSE 8600

pdficon small Datasheet HVSE 8601

pdficon small HV-Cable Assembly






KA 812x



Calibration adapters for artificial mains networks AMN or LISN



pdficon small Datasheet KA 812x








Wiring accessories for LISN



Wing terminals

hook and ring type cable lugs

and connecting accessories for LISN



pdficon small Wiring accessories for LISN






CEKON



CEKON CEE three- phase current connector plug jack 16 A and 32 A.



Datasheet CEKON






SCHUKO



Adapter Schuko plug, receptacle for Great Britain, Singapore,

Hong Kong, Switzerland, Australia, New Zealand, USA, Canada,

Japan, Taiwan...



Datasheet SCHUKO

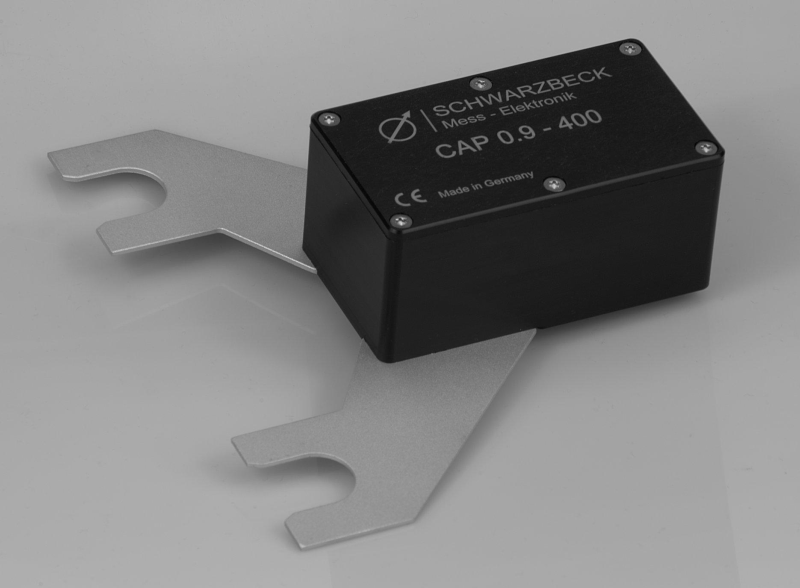

  • CAP09-400 - 0.9 µF Capacitor for NNHV LISN


CAP 0.9-400



In order to be compliant to the standards ECE R10.06, CISPR 12 and PSA (which require a capacitance of in total 1 uF parallel to a resistance of 1 MΩ at the input side of the LISN) a 0.9 μF capacitor like the CAP 0.9-400 has to be connected to the mains terminals of the NNHV 8123-400 or NNHV 8123-800 LISN.



pdficon small Datasheet CAP 0.9-400





  • CAP10
  • CAP_10_8226-2



CAP 10 / CAP 10 8226-2



To be compliant to the standards DEF STAN 59, DO 160 or MIL 461F ( Method CS 101-4; CS106-3) a 10 μF capacitor like the CAP 10 has to be connected to the mains connectors of the LISN.



pdficon small Datasheet CAP 10

pdficon small Datasheet CAP 10 8226-2








Artificial Hand



Artificial hand according to CISPR 16-1-2 (RC combination 510 Ω + 220 pF) in housing with banana plug and copper foil.



pdficon small Datasheet Artificial Hand
