Attenuators and Pulse Limiters

Details



DGA 9552 N

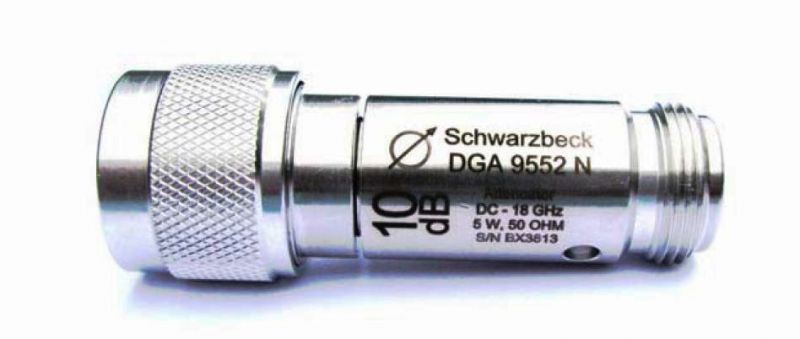

  • Schwarzbeck Attenuator DGA 9552 N


DGA 9552 N is a bidirectional attenuator, i.e. the attenuation and power capability specification is valid for both directions.

There is a large variety of applications for this attenuator: The measuring range of a spectrum analyzer can be increased. Any kind of meter can be protected against overload; it can be used to control the linearity of a meter reading. It can minimize measurement uncertainty caused by mismatched impedances. During an EMI receiver calibration an attenuator directly at the pulse generator output is inevitable.



Every DGA 9552 N is delivered with an individual calibration of the attenuation.

Calibration data of the VSWR is available on request.

[Case optionally available]



 Frequency Range:

DC ... 18 GHz
 Impedance:

50 Ω
 Connectors:

precision type N, acc. to MIL-STD-348
 Attenuation:

3, 6, 10, 20, 30, 40 dB

 Length:

56.4 mm

 Max. Power:





5 W / 25 °C, 4 W / 45 °C, 3 W / 65 °C,
2 W / 85 °C, 1 W / 105 °C
1 kW peak (5 μsec. pulse width, 0.25% duty cycle)



 VSWR:





less than 1.15 (DC – 4 GHz)
1.20 (4 – 8 GHz)
1.25 (8 – 12.4 GHz)
1.35 (12.4 – 18 GHz)


 Temperature Range:

-55 ... 105 °C
 Standard:

MIL-DTL-3933
 Body: Stainless steel

pdficon small Datasheet DGA 9552 N


Details



DGA 9553 BNC

NEW

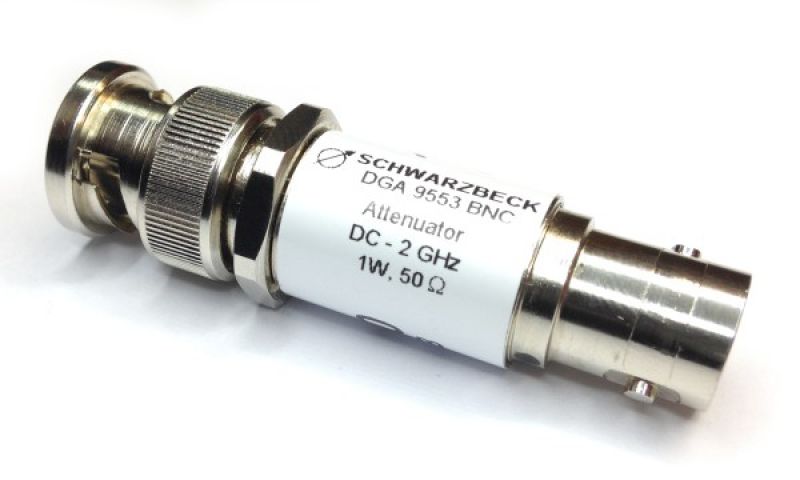

  • Schwarzbeck DGA 9553 BNC Attenuator


DGA 9553 BNC is a bidirectional attenuator, i.e. the attenuation and power capability specification is valid for both directions.

There is a large variety of applications for this attenuator: The measuring range of a spectrum analyzer can be increased. Any kind of meter can be protected against overload; it can be used to control the linearity of a meter reading. It can minimize measurement uncertainty caused by mismatched impedances.



Optional the attenuator can be delivered with an individual calibration of the attenuation.



Frequency Range: DC ... 2 GHz
Impedance: 50 Ω
Connectors: BNC
Attenuation: 3, 6, 10, 20, 30 dB
Length: 50 mm
Max. Power: 1 W
VSWR: <1.2
Temperature Range: -45 ... 100 °C
Body: Stainless steel

pdficon small Datasheet DGA 9553 BNC


Details



VTSD 9561 D

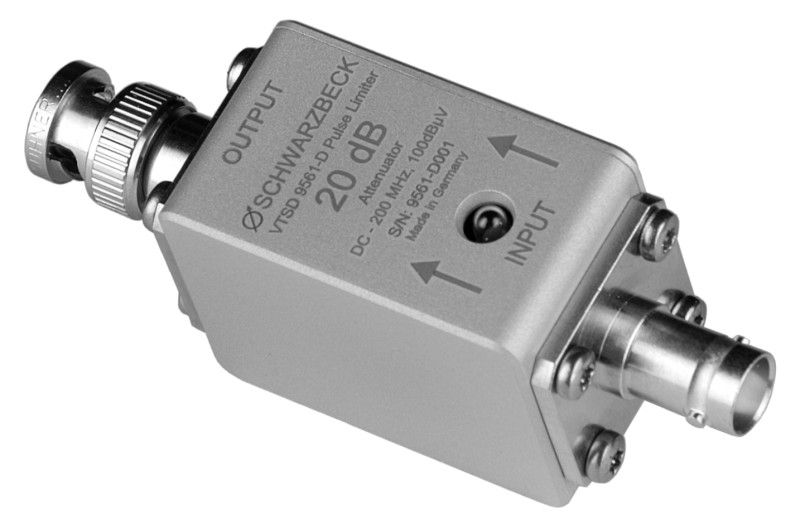

  • VTSD 9561D BNC Pulse Limiter

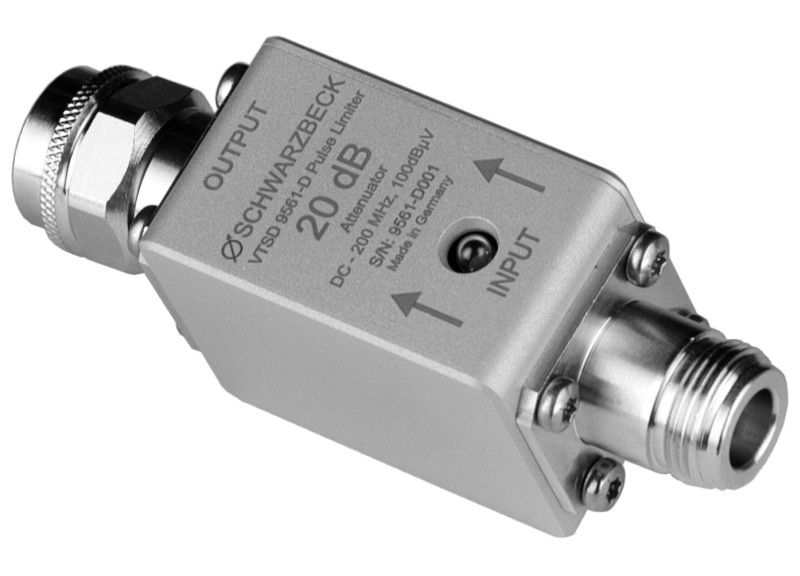

  • VTSD 9561D N Pulse Limiter


Diode Pulse Limiter with built-in 20 dB high power attenuator and fuse lamp to protect sensitive measuring equipment when measuring spectra with high energy. Thanks to the built-in fuse lamp serious overload situations of sensitive equipment can be recognized fast and reliably. A replacement bulb is placed inside the unit. The pulse limiter prevents expensive equipment defects. The very flat frequency response allows high measurement accuracy, even if only a few sample values are used for correction.



Frequency Range: DC ... 200 MHz
Impedance: 50 Ω
Insertion Loss: 20 dB +/- 0.5 dB
Input Connector female BNC or N
Output Connectior male BNC or N
Fuse Lamp Osram 2306
Replacement Lamp under Cover 6 V 0.03 A
Width: 28 mm
Height: 36 mm
Lenght: 88 mm
Weight: 150 g

pdficon small Datasheet VTSD 9561 D


Details



VTSD 9561 F

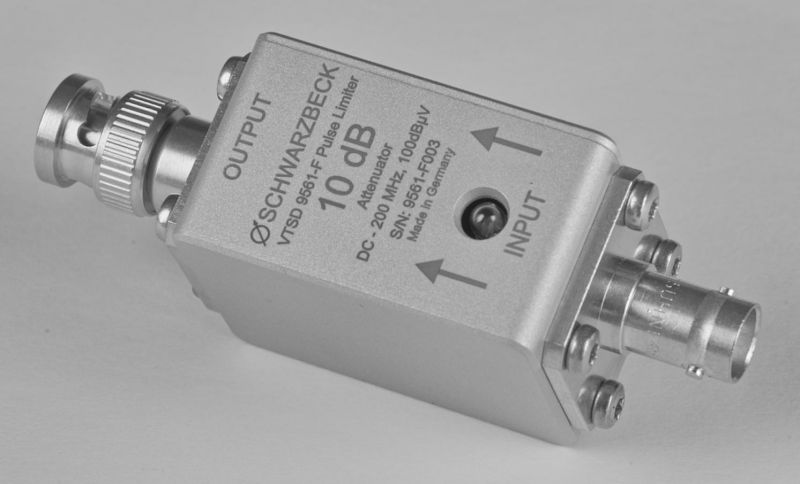

  • Schwarzbeck VTSD 9561-F BNC Pulse Limiter

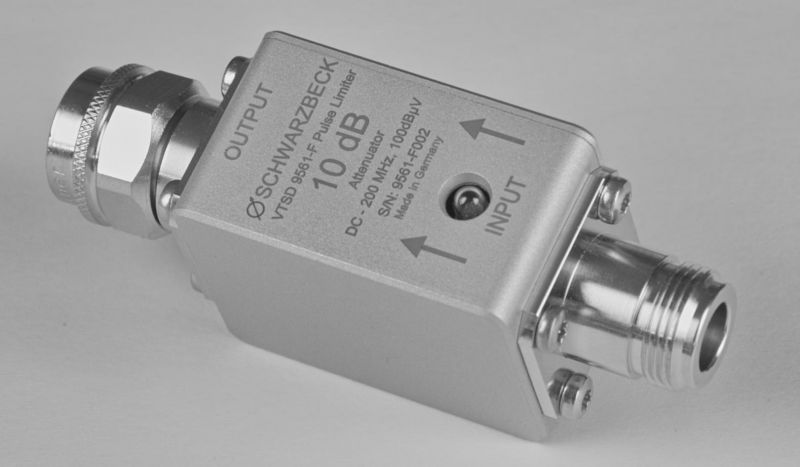

  • Schwarzbeck VTSD 9561-F N Pulse Limiter


Diode Pulse Limiter with built-in 10 dB high power attenuator and fuse lamp to protect sensitive measuring equipment when measuring spectra with high energy. Thanks to the built-in fuse lamp serious overload situations of sensitive equipment can be recognized fast and reliably. A replacement bulb is placed inside the unit. The pulse limiter prevents expensive equipment defects. The very flat frequency response allows high measurement accuracy, even if only a few sample values are used for correction.



Frequency Range: DC ... 200 MHz
Voltage Range withoute Clipping: < 100 dBµV
Impedance: 50 Ω
Insertion Loss: 10 dB +/- 0.5 dB
Frequency Response: <+/- 0.5 dB
Input Connector female: BNC or N
Output Connectior male: BNC or N
Fuse Lamp: Osram 2306
Replacement Lamp under Cover 6 V 0.03 A
Width: 28 mm
Height: 36 mm
Lenght: 88 mm
Weight: 150 g

pdficon small Datasheet VTSD 9561 F


Details



VTSD 9562







Bandpass and Limiter for Partial Discharge Measurements.



Frequency Range: 150 kHz ... 1 MHz
Pass band attenuation: 0.3 dB typ.
Stop band attenuation: 90 kHz; 1.8 MHz /20 dB
65 kHz; 2.8 MHz /40 dB
Impedance: 50 Ω
Input Connector female: BNC
Output Connectior male: BNC
Switching: Bypass / Limiter switchable by toggle switch

pdficon small Datasheet VTSD 9562


Details



VTSD 9563

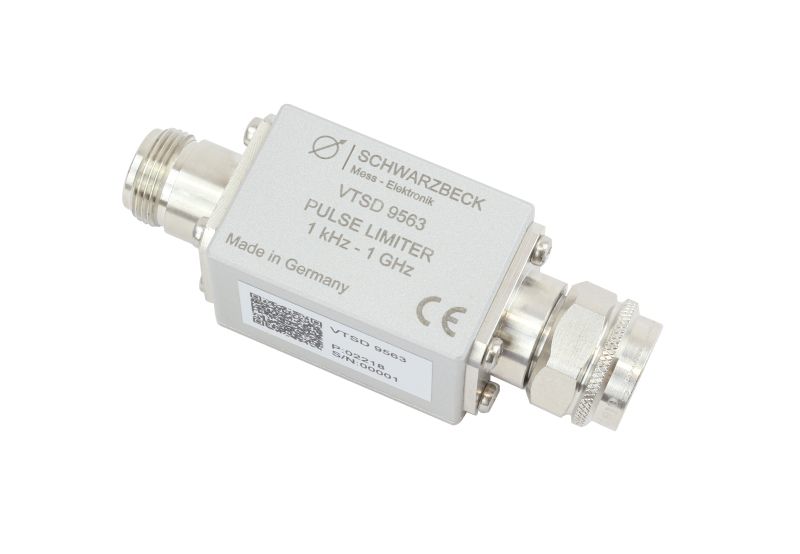

  • VTSD 9563 - Pulse Limiter





The VTDS 9563 pulse limiter is used to protect sensitive inputs of RF measuring instruments, e.g. measuring receivers or spectrum analysers.



Nominal Frequency Range: 1 kHz ... 1 GHz
Useable Frequency Range: 0.1 kHz ... 4 GHz
Insertion Loss
(2 kHz < f < 2 GHz):		 <1.0 dB, typ. <0.7 dB
VSWR
(0.1 MHz < f < 1 GHz):		 < 1.2
Clipping: typ. 113 dBµV / +6 dBm
- 1 dB Compression: typ. 122 dBµV / +15 dBm
Max. cont. Power: 10 W (+40 dBm)
Max. Peak Power: 100 W (<1 µs, < 1:1000)
Input Connector: N - female
Output Connector: N - male
Length x Width x Height: 85 x 27 x 27 mm
Weight: 150 g

pdficon small Datasheet VTSD 9563


Details



DC Block 500

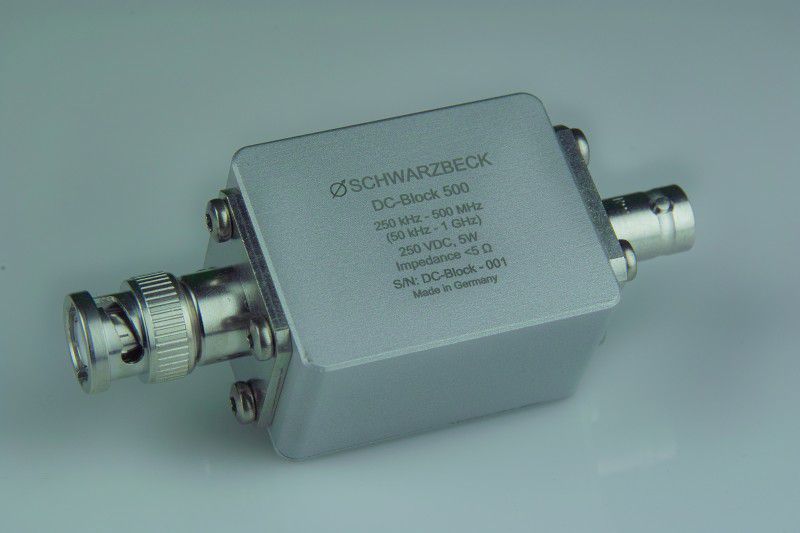

  • Schwarzbeck CD-Block 500


DC blocking Capacitor



Frequency Range:

 250 kHz ... 500 MHz
(50 kHz ... 1 GHz)
Input Connector female BNC
Output Connectior male BNC
Max. Voltage
Line - Ground		 250 V DC

Insertion Loss
Input - Output
250 kHz - 500 MHz

 <0.42 dB

Series Impedance:

 <5 Ω
Width: 90 mm
Height: 28 mm
Lenght: 35 mm
Weight: 103 g
acc. to Standard DIN ISO 11452-7

pdficon small Datasheet DC Block 500
