Preamplifiers

BBV 9743 B - Broadband Preamplifier BBV 9744 - Broadband Preamplifier BBV 9745 - Broadband Preamplifier BBV 9748 - Broadband Preamplifier BBV 9718 D - Microwave Broadband Preamplifier BBV 9719 - Microwave Broadband Preamplifier BBV 9721 - Microwave Broadband Preamplifier



BBV 9743 B - Broadband Preamplifier

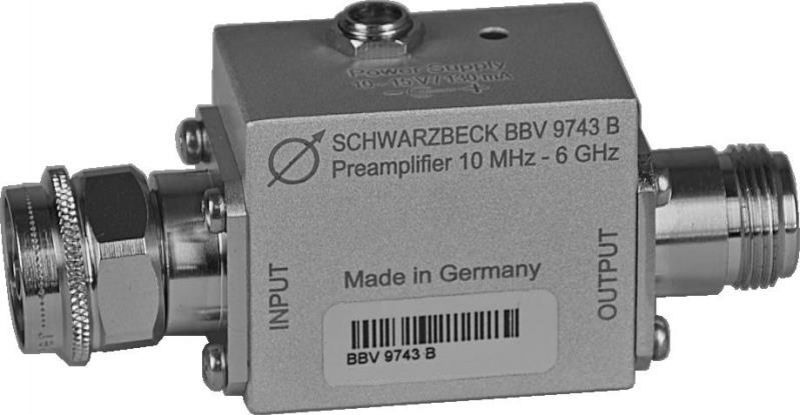

  • BBV9743B

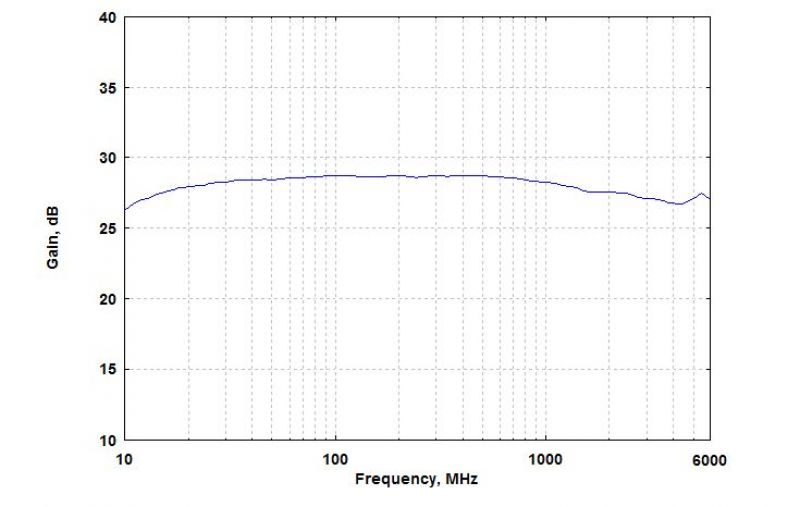

  • Schwarzbeck BBV 9743 B - Typical Gain




Frequency range (nominel):

 10 MHz - 6 GHz

Noise figure:

 typ. <2.7 dB (1.0 GHz)

Gain:

 typ. +28 dB

Amplitude flatness:

 < +/- 3 dB

1 dB compression point at input:

 > -18 dBm
 (89 dBµV)

Impedance:

 50 Ω



VSWR input / output:

 < 2 : 1



Ambient temperature:

 -10°C ... +60°C

Power supply:

 + 10-15 V
 120 mA

Material of the housing:

 Aluminium

Housing dimensions:

 42 x 35 x 27 mm

Overall dimensions:

 82 x 38 x 27 mm

Weight:

 150 g



  Datasheet BBV 9743 B






BBV 9744 - Broadband Preamplifier

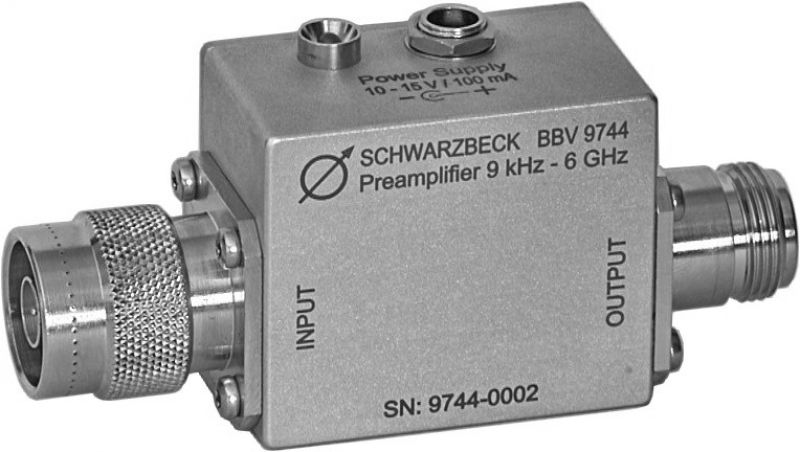

  • Schwarzbeck BBV 9744 - Broadband Coaxial Preamplifier

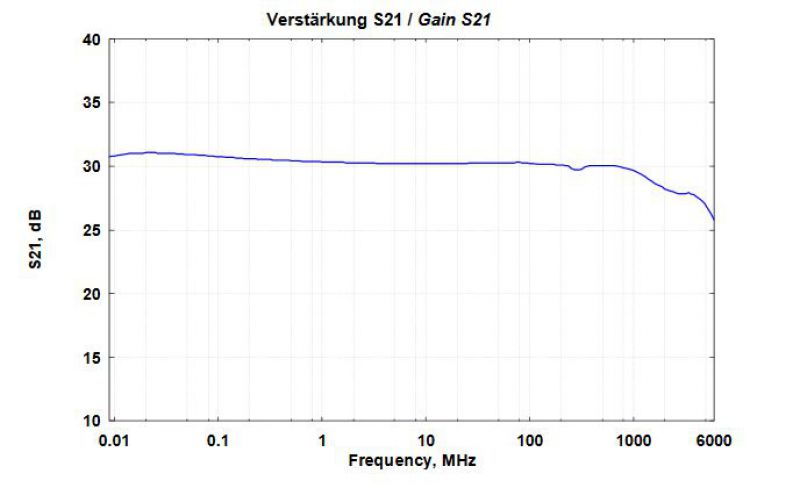

  • Schwarzbeck BBV 9744 - Typical Gain




Frequency range (nominel):

 9 kHz - 6 GHz

Noise figure:

 typ. 2.5 dB (1.0 GHz)

Gain:

 typ. +28 dB

Amplitude flatness:

 typ. < +/- 3 dB

1 dB compression point at input:

 > -20 dBm
 (87 dBµV)

Impedance:

 50 Ω



VSWR input / output:

 typ. < 2 : 1



Ambient temperature:

 -10°C ... +60°C

Power supply:

 + 10-15 V
 120 mA

Material of the housing:

 Aluminium

Housing dimensions:

 42 x 35 x 27 mm

Overall dimensions:

 82 x 38 x 27 mm

Weight:

 160 g



  Datasheet BBV 9744






BBV 9745 - Broadband Preamplifier

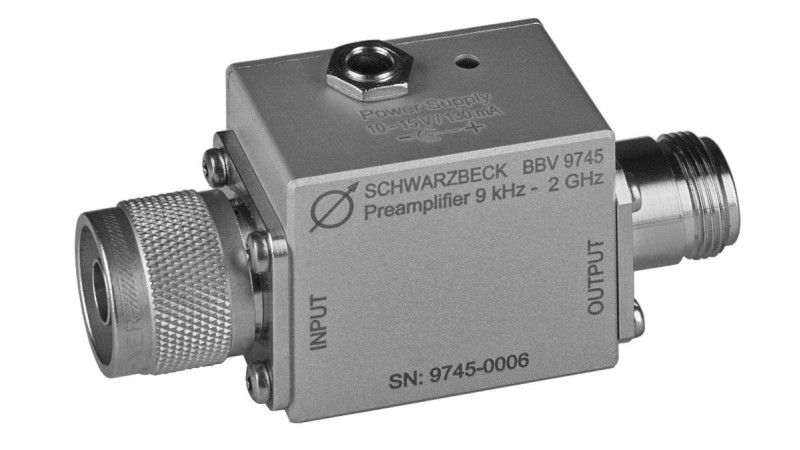

  • BBV 9745 - Broadband Coaxial Preamplifier

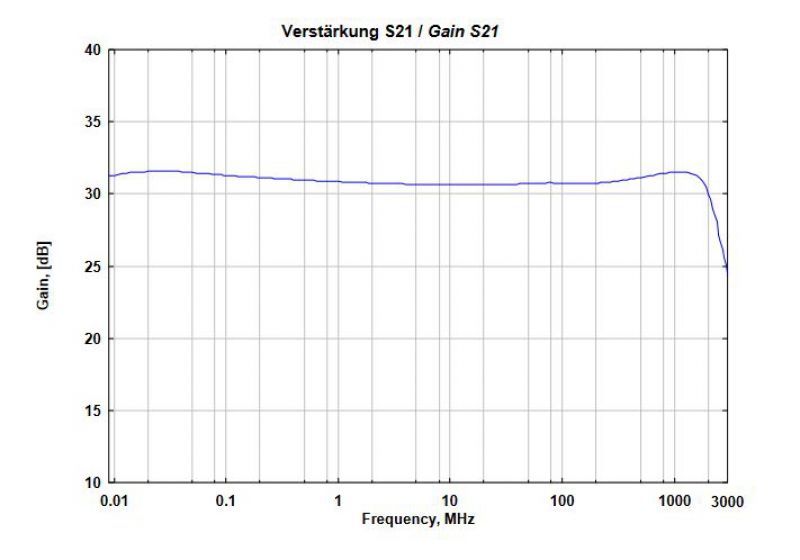

  • BBV 9745 - Typical Gain




Frequency range (nominel):

 9 kHz - 2 GHz

Noise figure:

 typ. 2.5 dB (1.0 GHz)

Gain:

 typ. +30 dB

Amplitude flatness:

 < +/- 3 dB

1 dB compression point at input:

 > -20 dBm
 (87 dBµV)

Impedance:

 50 Ω



VSWR input / output:

 < 2 : 1



Ambient temperature:

 -10°C ... +60°C

Power supply:

 + 12 (+/-2V)
 120 mA

Material of the housing:

 Aluminium

Housing dimensions:

 42 x 35 x 27 mm

Overall dimensions:

 82 x 38 x 27 mm

Weight:

 150 g



  Datasheet BBV 9745






BBV 9748 - Broadband Preamplifier

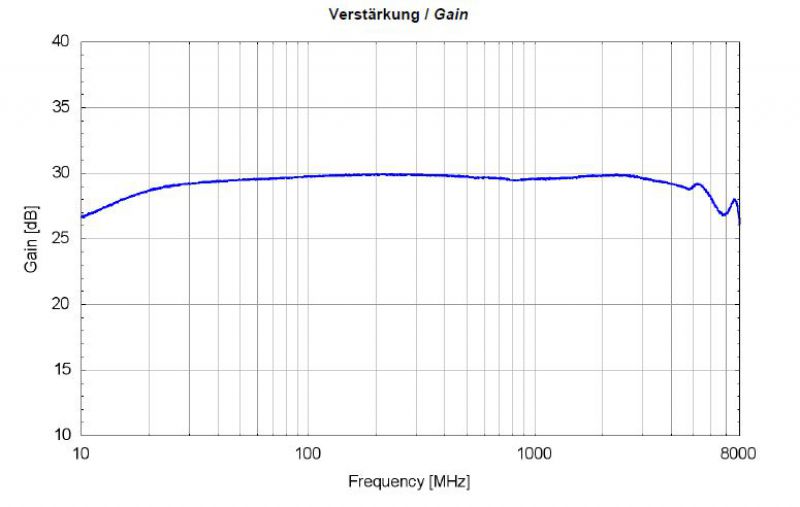

  • BBV 9748 - Typical Gain

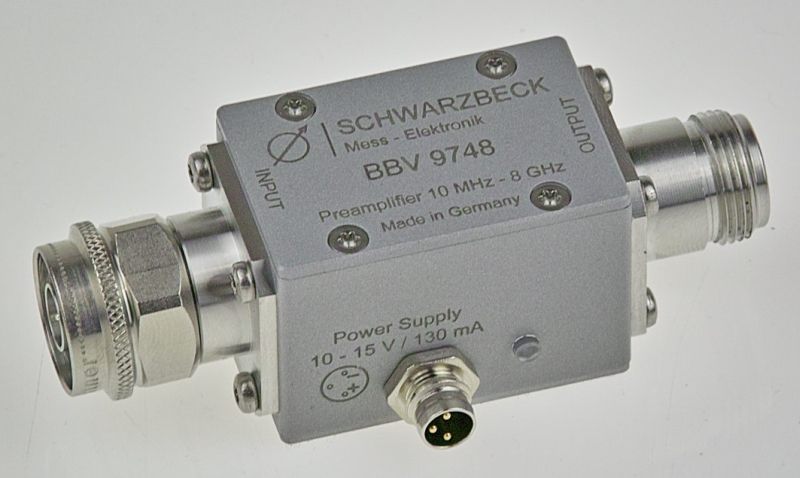

  • BBV 9748




Frequency range (nominel):

 10 MHz - 8 GHz

Noise figure:

 typ. 2.7 dB (1.0 GHz)

Gain:

 typ. 29 dB

Amplitude flatness:

 < +/- 3 dB

1 dB compression point at input:

 > -17 dBm


Impedance:

 50 Ω



VSWR input / output:

 < 2 : 1



Ambient temperature:

 -10°C ... +60°C

Power supply:

 +10-15 V
 120 mA

Material of the housing:

 Aluminium

Housing dimensions:

 42 x 28 x 29 mm

Overall dimensions:

 85 x 36 x 29 mm

Weight:

 130 g



  Datasheet BBV 9748






BBV 9718 D - Microwave Broadband Preamplifier

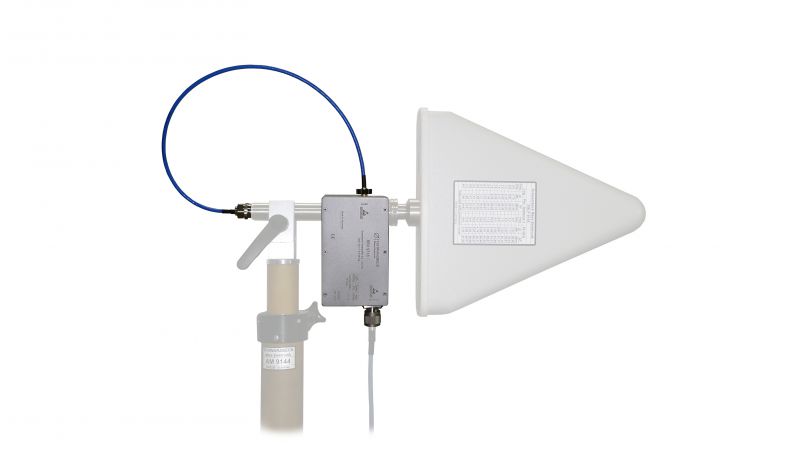

  • BBV 9718 D
  • BBV 9718 D

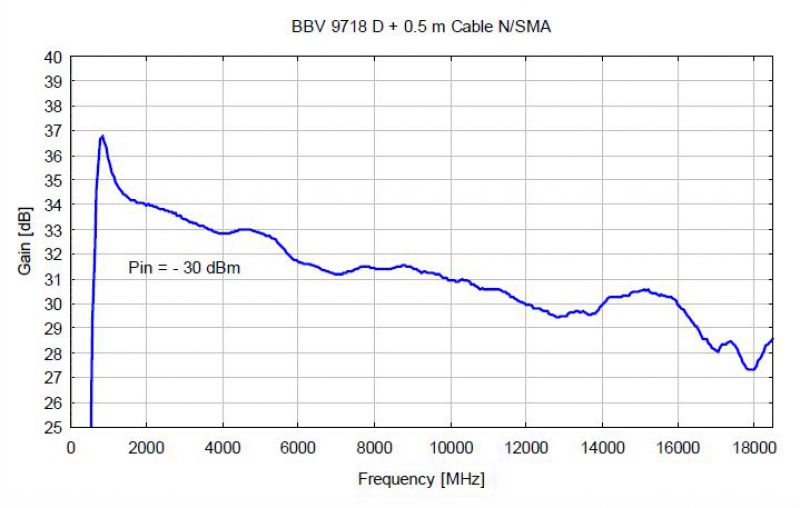

  • Gain - BBV 9718 D


Low Noise Low Power Wideband Amplifier for increasing sensitivity at fieldstrengthmeasurements and for general attenuation measurements up to 18 GHz. Due to the built-in rechargeable battery, operation without power supply is possible for approx. 8h.



Nominal frequency range:

 1 - 18 GHz

Useable frequency range:

 0.5 - 20 GHz

Connectors:

 50 Ω N/SMA

Mounting tube:

 d=22 mm

Noise figure:

 2 dB

Gain:

 typ. 30 dB +/- 5 dB

SWR typ.:

 <2

Max. Input Power:

 -10 dBm (97 dBµV)

Dimensions:

 155 x 80 x 67 mm

Weight:

 ~1.0 kg




Datasheet BBV 9718 D






BBV 9719 - Microwave Broadband Preamplifier

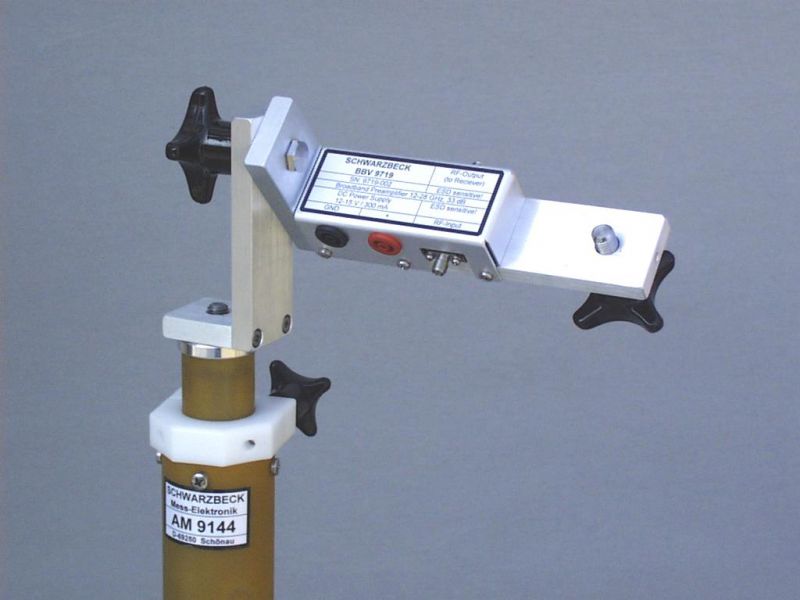

  • BBV 9719 - Broadband Preamplifier

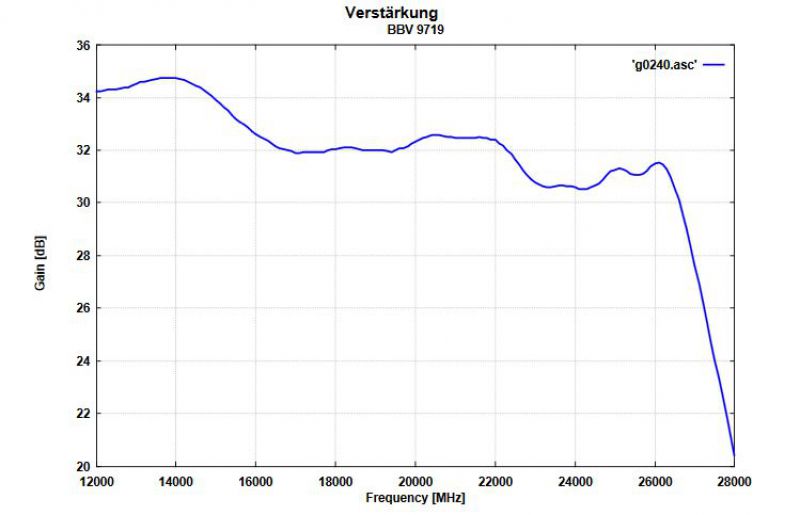

  • BBV 9719 - Typical Gain




Frequency range (nominel):

 18 - 26.5 GHz

Useable frequency range:

 12 - 28 GHz

Gain:

 typ. 33 dB +/-2 dB

Gain min.:

 30 dB

SWR typ.:

 <2

Max. input power:

 -20 dBm (87 dBµV)

1 dB Compression:(at output)

 >+17 dBm (124 dBµV)

Noise Figure:

 3.5 dB

Connectors:  50 Ω SMA
Supply Voltage:  12 V - 15 V DC
Current Consumption:  250-300 mA
Power Supply via female Banana sockets:  4 mm

Dimensions:

 210 x 100 x 60 mm

Weight:

 150 g



Including short cable with SMA plugs to connect the BBV 9719 with the antenna (for example BBHA 9170)


  Datasheet BBV 9719



Options:

Option Akku: Rechargeable battery pack for BBV 9718 or 9719.

Option ALCS 2-24A: Battery charger ALCS 2-24A for rechargeable battery pack.

Option PS: Power supply for BBV 9718 or 9719.








BBV 9721 - Microwave Broadband Preamplifier

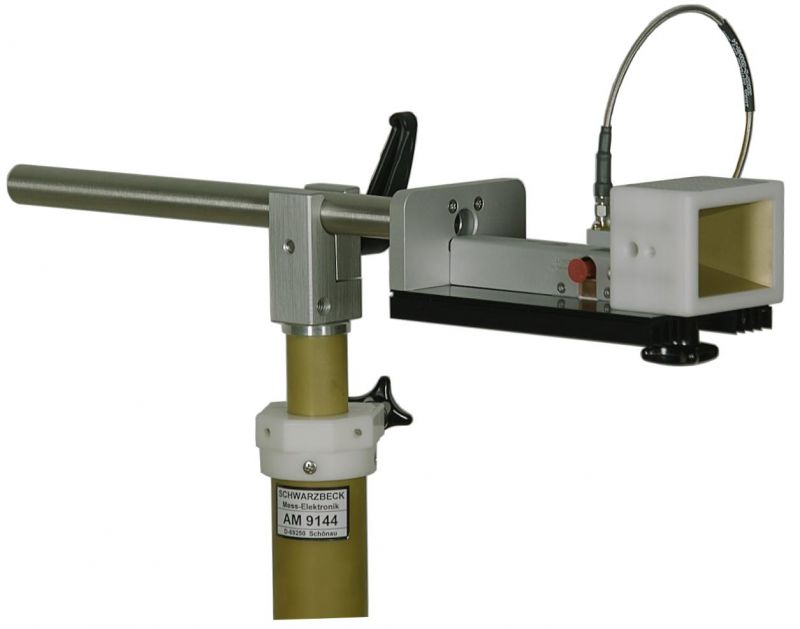

  • BBV 9721 - Broadband Coaxial Preamplifier

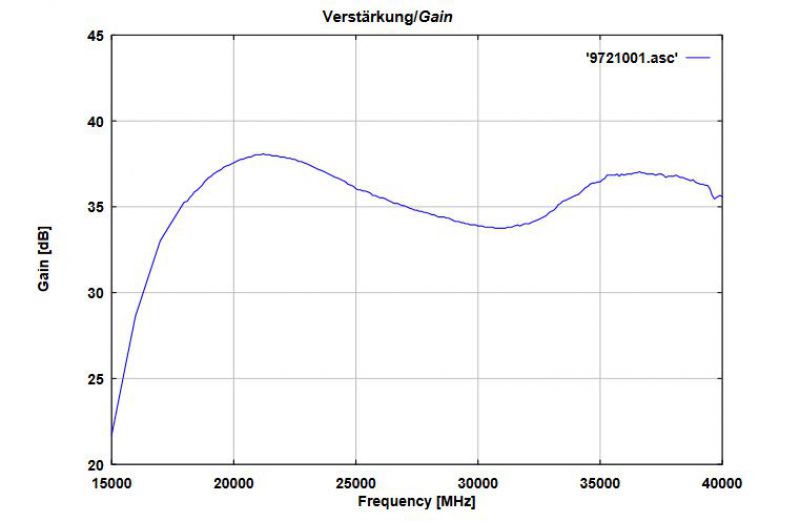

  • BBV 9721 - Typical Gain


The BBV 9721 is a low noise low power wideband preamplifier to increase sensitivity during field strength-measurements and for general attenuation measurements up to 40 GHz.





Frequency range (nominel):

 18 - 40 GHz

Gain:

 typ. 35 dB +/-4 dB

Gain min.:

 27 dB

SWR typ.:

 <2.6

Max. input power:

 -20 dBm (87 dBµV)

1 dB Compression:(at output)

 >+15 dBm (122 dBµV)

Noise Figure:

 5.5 dB

Connectors:  2.92 mm 50 Ω
Power Supply 1:  + 8 V / 400 mA DC
Power Supply 2:  - 8 V / 50 mA DC
Power Supply via female Banana sockets:  4 mm

Dimensions:

 370 x 95 x 65 mm

Weight:

 860 g



Including short cable with 2.92 plugs to connect the BBV 9721 with the antenna (for example BBHA 9170)


  Datasheet BBV 9721





Options:

Option PS 9721: Power supply unit for BBV 9721 including cables with secuity plugs can be used for 110 V and 230 V

Datenblatt PS 9721



Option PS 9721 Battery: Power supply unit with integrated accumulator battery for BBV 9721 including cables with secuity plugs can be used for 110 V and 230 V

Datenblatt PS 9721 Battery
