Striplines / TEM-Cells



  • Schwarzbeck TEMZ 5231 Standard
  • Schwarzbeck TEMZ5231 Foldaway

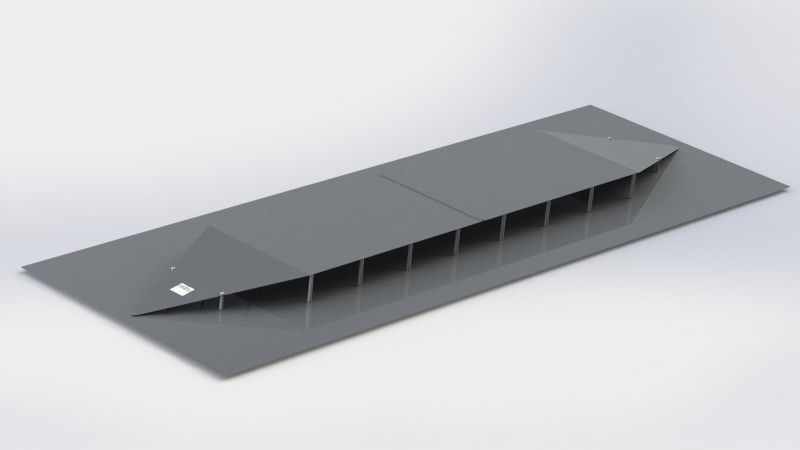

TEMZ 5231



50 Ohm Stripline according to ISO 11452-5 for automotive testing

septum with cylindrical rods

4.3 x 1.5 x 0.15 m

N-connectors

wooden base construction (top view, side view) and termination required



pdficon small Datasheet TEMZ5231



Options:

Opt. Termination 150 W:



50 Ohm termination, N-jack,150 Watt, connecting cable for TEMZ 5231




Opt. Termination 500 W:



50 Ohm termination, N-jack, 500 Watt, connecting cable for TEMZ 5231

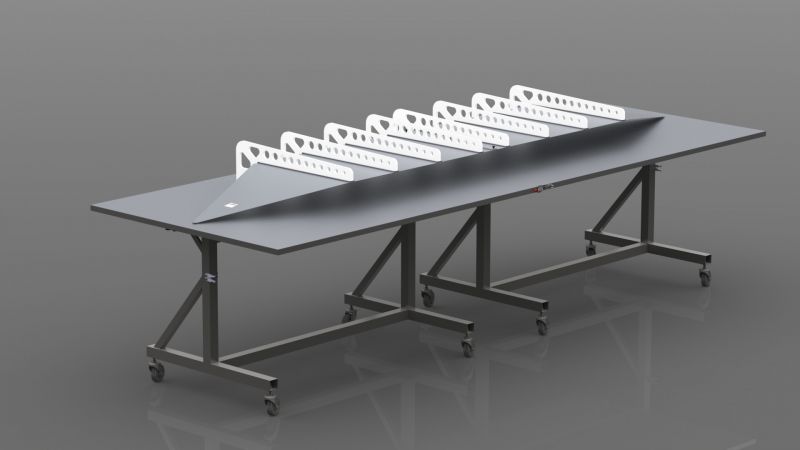

Opt. Foldaway:



Instead of cylindrical rods to hold the septum there will be side arms. The cell can be folded away vertically. A stainless steel construction with caster wheels supports the cell. Must be ordered together with TEMZ 5231, cannot be refitted.



pdficon small Datasheet Opt. Foldaway







  • Schwarzbeck TEMZ 5232 Stripline 90 Ohm

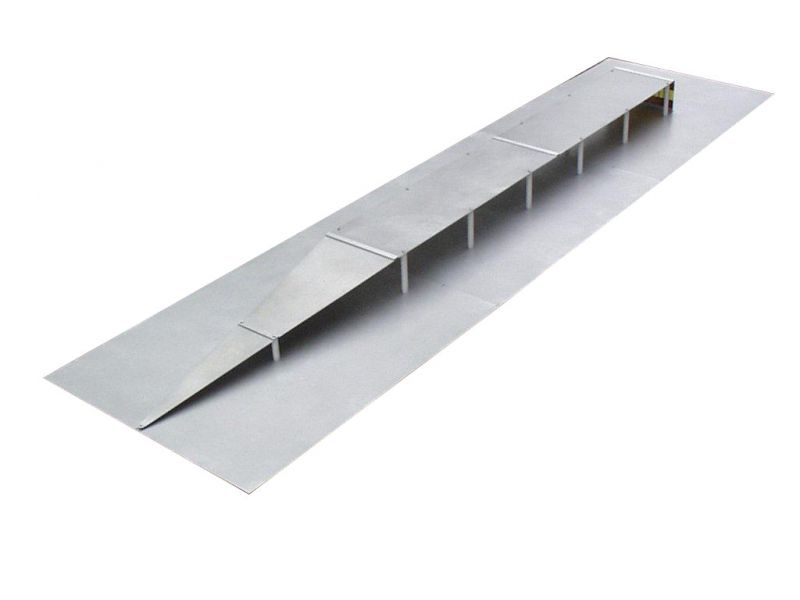

TEMZ 5232





90 Ohm Stripline

according to ISO 11452-5 for automotive testing

3.5 x 0.9 x 0.15 m

N-connector

built-in termination 90 Ohm

50 W

wooden base construction required



pdficon small Datasheet TEMZ5232







  • TEMZ_5233

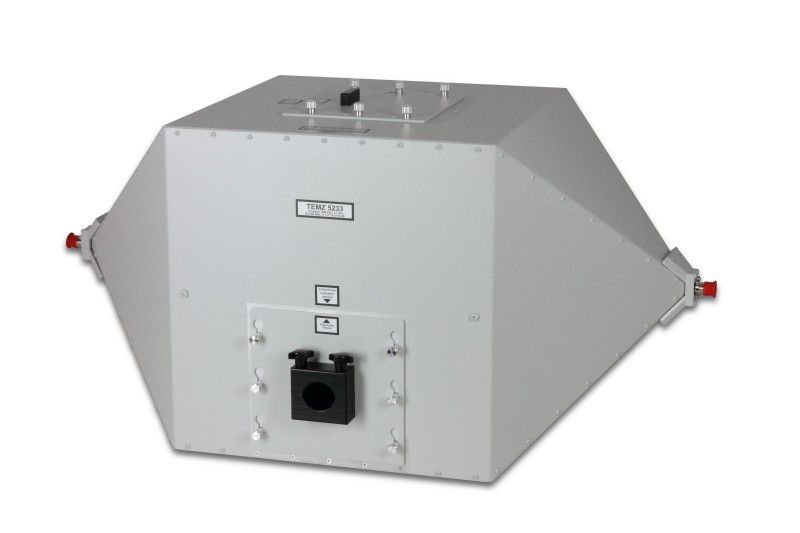

 TEMZ 5233



Closed, unsymmetrical 50 Ohm strip line

DC - 420 (600) MHz

Crawford TEM Cell for E- field probe and H-field probe calibration

and for immunity testing

ISO 11452-3, IEEE 1309 und EN 61000-4-20



pdficon small Datasheet TEMZ5233






 NEW

  • TEMZ 5234
  • TEMZ 5234_1
  • TEMZ 5234_2

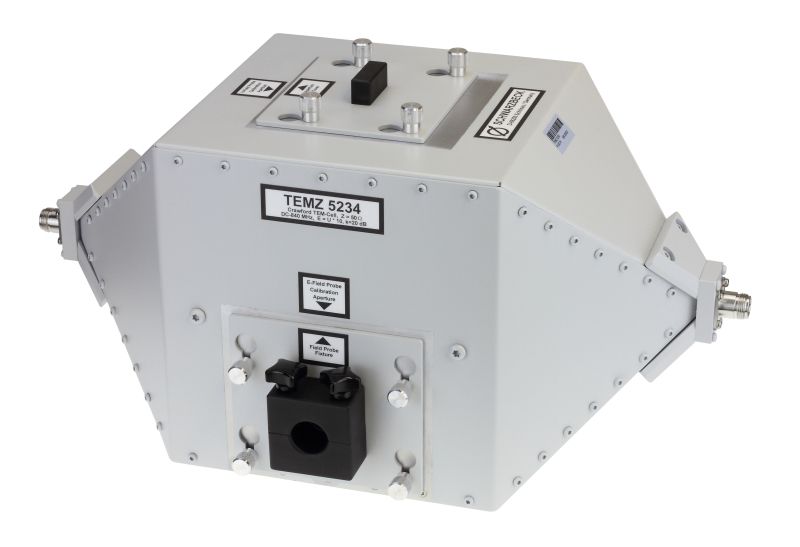

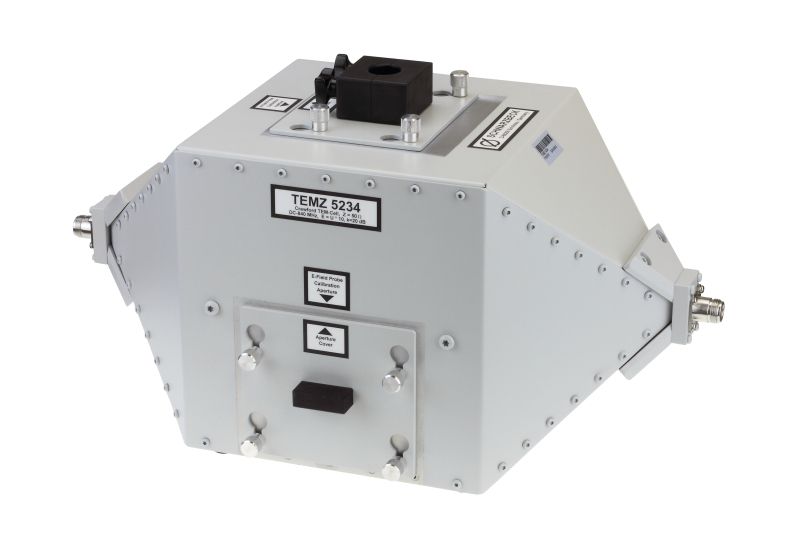

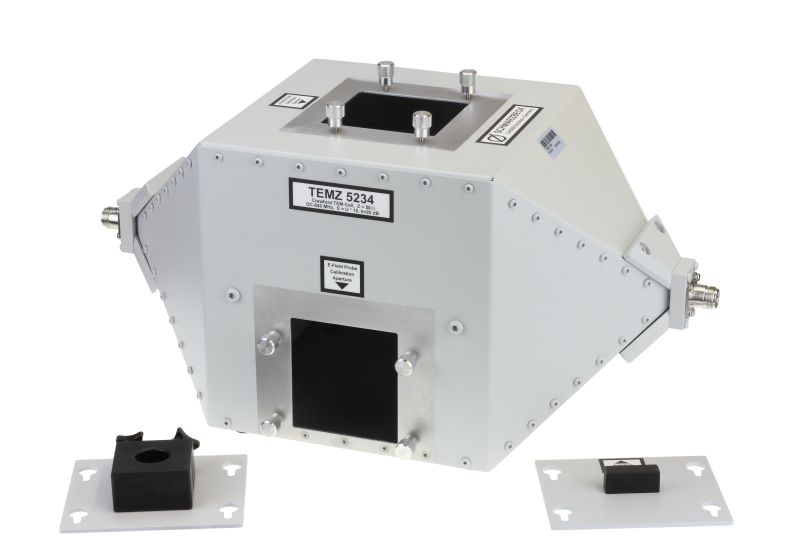

 TEMZ 5234 - TEM Zelle



Closed, unsymmetrical 50 Ω stripline (also called Crawford-TEM-Cell or Transverse ElectroMagnetic cell) for E- and H-field probe calibration and immunity testing of components. The TEMZ 5233 complies to the requirements of ISO 11452-3, IEEE 1309 and EN 61000-4-20.





Material:  Aluminium
Nominal Frequency Range (TEM-Mode):  DC - 840 MHz
Usable Frequency Range (TEM and higher modes):  DC - 1200 MHz
Septum Height:  100 mm
Aperture:  80 x 75 mm
Nominal Impedance:  50 Ω
Standing Wave Ratio SWR typical:  <1.05
Standing Wave Ratio SWR max.:  < 1.2
Voltage / Fieldstrength relation:  1 V = 10 V/m
Conversion Ratio Voltage ->Fieldstrength:  +20 dB/m
Max. Input Power (with suitable termination):  200 W
Maximum fieldstrength:  1000 V/m
Transmission S21:  < 0.1 dB
Connectors:  N-female
Breite:  245 mm
Width x Length x Thickness:  232 x 450 x 230 mm
Weight:  2.0 kg





pdficon small Datasheet TEMZ5234
