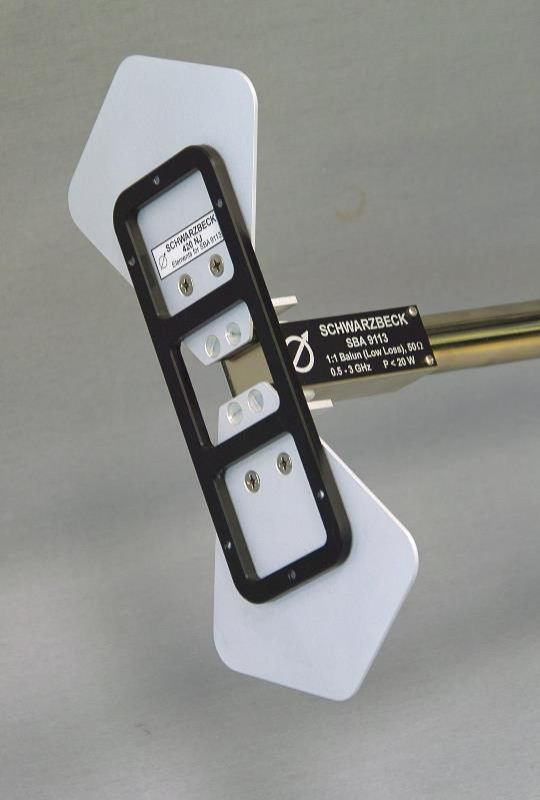

Elements for radiated immunity caused by hand portable transmitters
with SBA 9113 or SBA 9113 mini version for the Ford standard RI115 (Ford EMC CS 2009)
|
Required balun:
|
SBA 9113 or SBA 9113 Mini Version
|
|
Connector:
|
N
|
|
Frequency range:
|
370 MHz ... 2.7 GHz
|
|
Nominal impedance:
|
50 Ω
|
|
Maxumum input power:
|
20 W
|
|
VSWR:
|
< 6 (0.7 GHz < f < 1.8 GHz) < 5 (1.8 GHz < f < 2.7 GHz)
|
|
Material:
|
Aluminium
|
|
Element size:
|
240 x 109 x 2 mm
|
|
Weight:
|
135 g
|
|
recomended space:
|
5 - 50 mm
|
|
Option:
|
Spacer 50 mm
|
|
|
Other Spacer on request
|
Datasheet 420 NJ
Datasheet SBA 9113
Option:
Opt: Spacer 50
Spacer made of Polystyrene to set the 420 NJ elements test distance to 50 mm.
|
