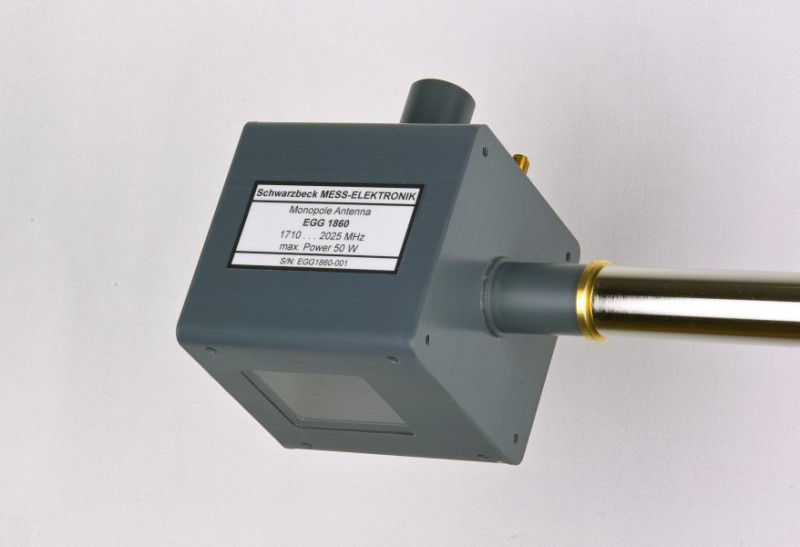

The antenna EGG 1860 is a monopole antenna located in a PVC-housing for automotive immunity testing on component level. This antenna type is proposed in the standard ISO 11452-9.


The antenna construction stems from IETR Institute d'Electronique et de Telecommunications de Rennes.


Frequency Range: 1710...2025 MHz
Polarisation: linear
Pattern Type: omnidirectional
Permissible Power: 50 W
Connector: Type SMA female
Impedance: 50 Ohms nominal
Length: 80 mm
Width: 80 mm
Hight: 85 mm
Weight: 300 g

22 mm diameter tube, L = 30 mm
