VAMP 9243



VAMP 9243

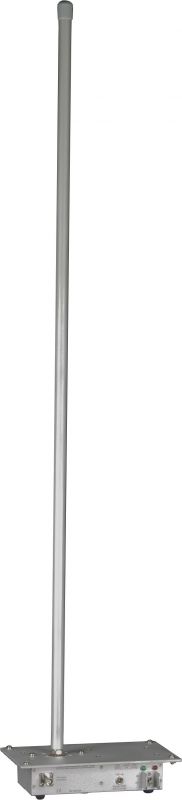

  • Schwarzbeck VAMP9243 Vertikal Active Rod Antenna
  • Schwarzbeck Option MIL461_bonding_kit for VAMP 9243


The VAMP 9243 is a vertikal active rod antenna with reduced noise floor.



Frequency Range: 9 kHz - 30 MHz
Polarisation: linear
Pattern Type: omnidirektional
Connector: BNC
Impedance: 50 Ohm nominell
Dimensions Amplifier:
Length: 180 mm
Width: 80 mm
Hight: 40 mm
Length Rod: 1 m
Weight: 900 g
Mounting:

1/4", 3/8"



With mounting nut for AM 9144 and rechargeable battery



pdficon small Datasheet VAMP 9243



Options:

Opt. GP: Aluminium-Groundplane, 0.6 x 0.6 m



Opt. ACS 410: Charger ACS 410

Opt. VT: 20 dB plug in divider to measure high field strength
[picture]



Opt. CA 9243: Calibration Adapter for VAMP 9243



pdficon small Opt. CA 9243

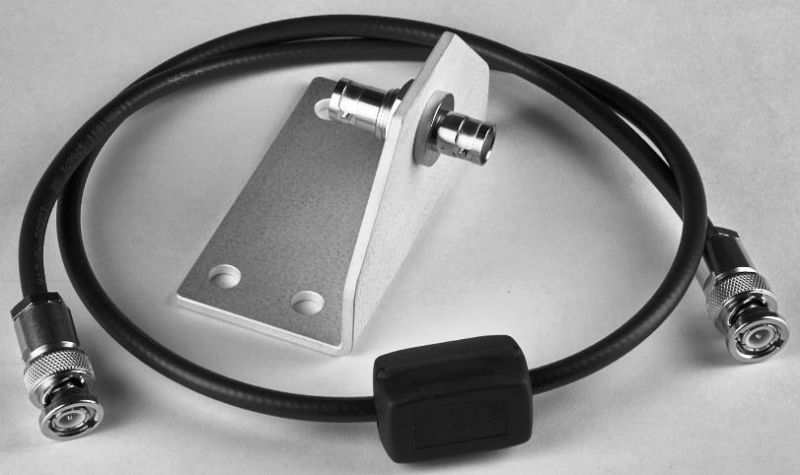

Opt. MIL461F bonding kit:

Bonding kit for VAMP 9243 acc. MIL-STD-461F consisting of a BNC

cable double shielded ca. 70 cm, with braid

current blocking ferrite in the center, elbow aluminium angle

with BNC bulkhead adapter.


 pdficon small Opt. MIL 461F Bonding Kit
