FDAI 155 - Folded Dipole Antenna 155 MHz



NEW

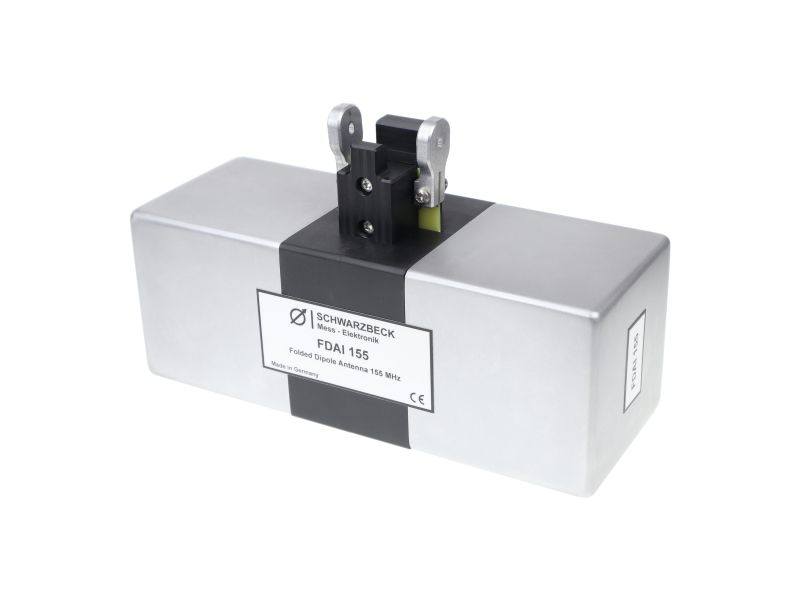

  • FDAI_155

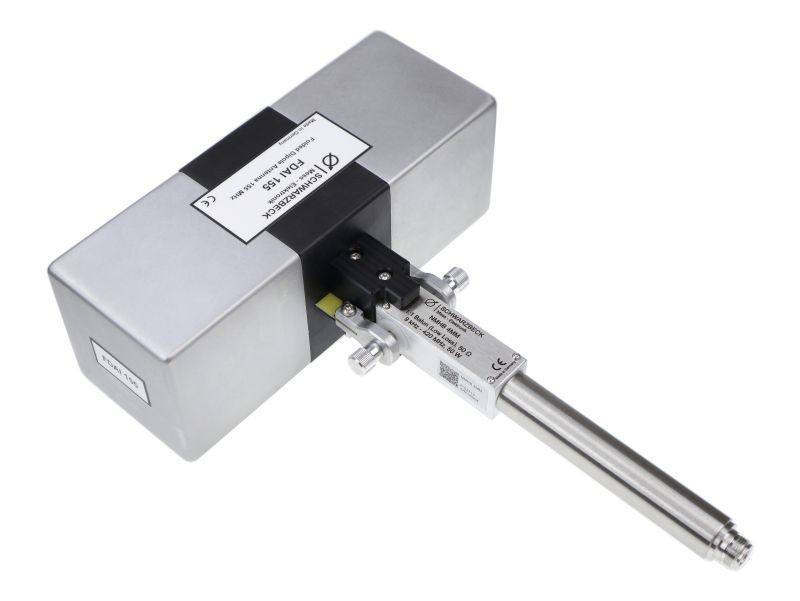

  • FDAI_155_with_NMHB_4MM


The FDAI 155 Radiating Elements are fed by the Low Loss Broadband Balun NMHB 4MM. The main application of the FDAI 155 is the immunity test against handheld transmitters according to ISO 11452-9 (Annex C.5) in the frequency range between 151 MHz and 160 MHz.Typical test distances are 5 cm between the EuT-surface and the FDAIsurface (Close Proximity Immunity Tests).





Usable Frequency Range: 151 - 160 MHz
Nominal Impedance: 50 Ω
Standing Wave Ratio SWR typical: < 2
Max. Input Power: 50 W
Symmetrical Terminals: M4
Length: 89 mm
Width: 240 mm
Height: 140 mm
Weight: 0.9 kg
Recommended Accessories:

NMHB 4MM
FDAI Spacer 50
CCA FDAI



Datasheet FDAI 155
