FDAI 222 - Folded Dipole Antenna 222 MHz



NEW

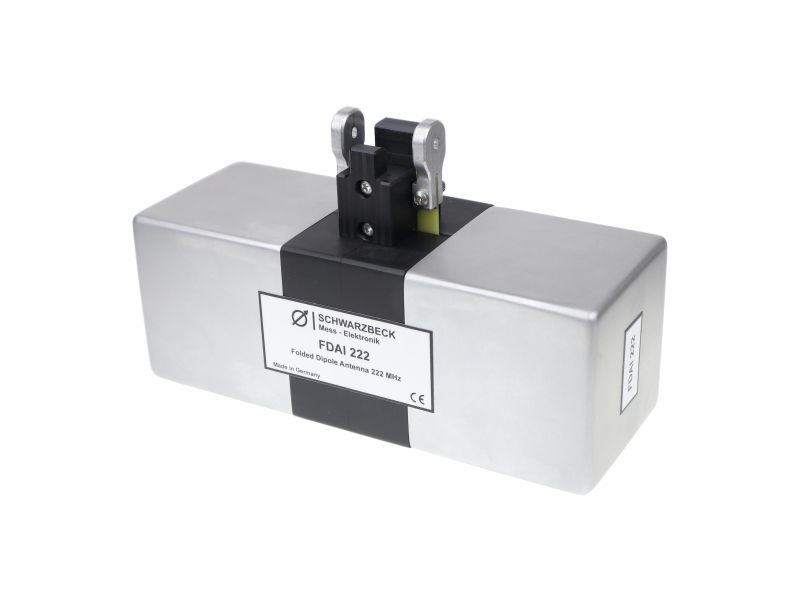

  • FDAI_222

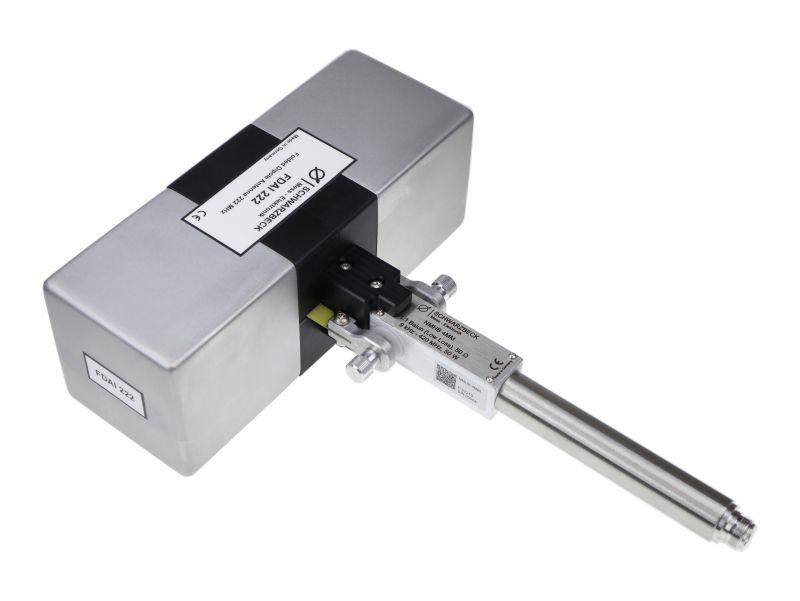

  • FDAI_222_with_NMHB_4MM


The FDAI 222 Radiating Elements are fed by the Low Loss Broadband Balun NMHB 4MM. The main application of the FDAI 222 is the immunity test against handheld transmitters according to ISO 11452-9 (Annex C.5) in the frequency range between 215 MHz and 246 MHz.Typical test distances are 5 cm between the EuT-surface and the FDAIsurface (Close Proximity Immunity Tests).





Usable Frequency Range: 215 - 246 MHz
Nominal Impedance: 50 Ω
Standing Wave Ratio SWR typical: < 2
Max. Input Power: 50 W
Symmetrical Terminals: M4
Length: 89 mm
Width: 240 mm
Height: 140 mm
Weight: 0.9 kg
Recommended Accessories:

NMHB 4MM
FDAI Spacer 50
CCA FDAI



Datasheet FDAI 222
