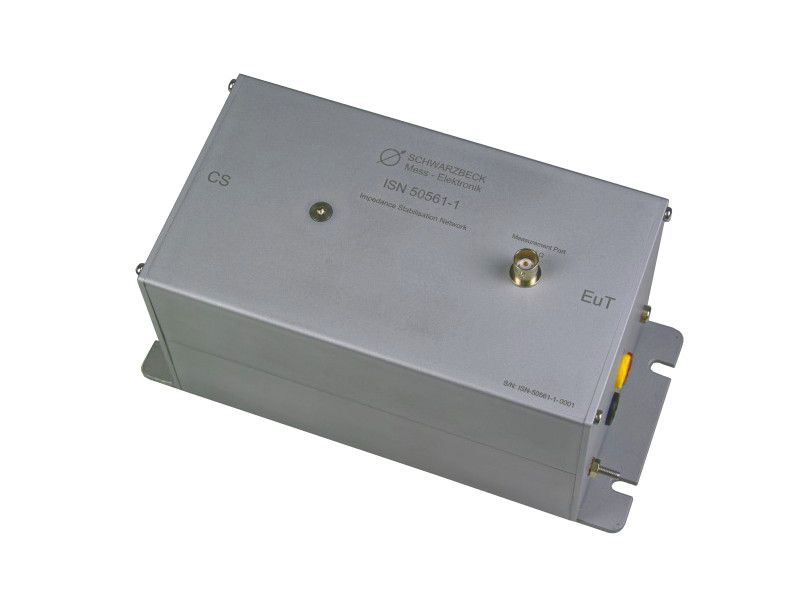

ISN 50561-1 is an impedance stabilization network (ISN) for measurements of asymmetrical disturbance voltage of power line communication equipment.



This ISN is built according to the standard EN 50561-1:2012, Annex B, Figure B.1.



Frequency range:

1.6 MHz ... 30 MHz

Max. current:

16 A

Max. operating voltage:

250 VAC @50/60 Hz

Proof voltage L / N to housing:

>1000 VDC

Measurement port:

BNC jack 50 Ω

Connectors EuT, CS:

4 mm safety laboratory jacks

Length:

225 mm

Width:

120 mm

Hight:

105 mm

Weight: ~1300 g

pdficon small Datasheet ISN 50561-1



pdficon small Overview PLC Measurement-System EN 50561-1
