STLP 9128 E - Stacked Log Periodic Antenna

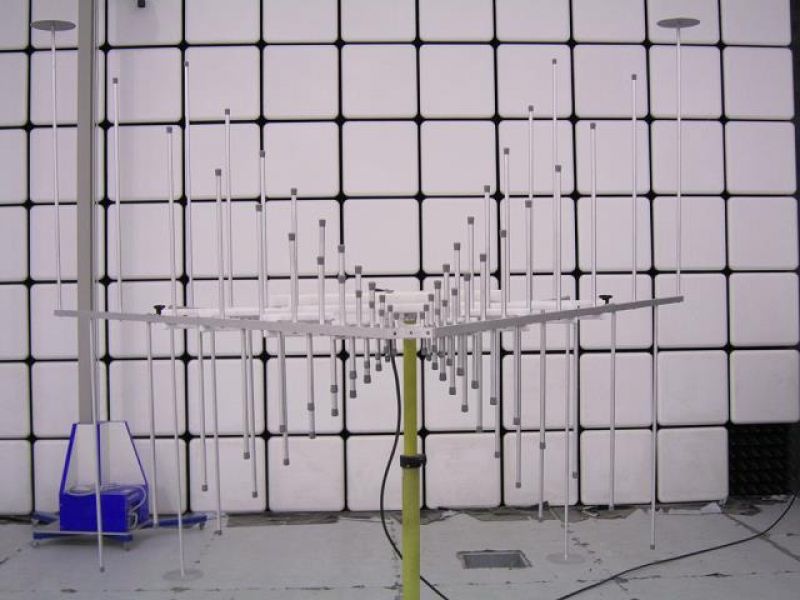

  • Schwarzbeck STLP9128E


The stacked Log Periodic Dipole Antenna (Stacked LPDA) consists of two ordinary Log.-Per. structures. The excellent characteristics (flat gain over a large bandwidth, low SWR) of the ordinary LPDA designs could be maintained using the stacked LPDA design. The stacked design helps to focus the directional pattern of the H-plane somewhat, resulting in a typical gain improvement of 2.0 dB compared to an ordinary LP antenna. This is especially important for immunity testing, where a maximum fieldstrength and a good field uniformity is required. The beamwidth in the E-plane and the H-plane are nearly identical, providing an optimised illumination of the EuT with minimised ground reflection influence.Further the cross polar rejection of the STLP 9128 E is excellent. The fastlinks allows to disassemble the rear elements without any need for further tools within a few seconds. These fastlinks divide the antenna into five parts, which can be stored and transported easily.



Main Application: Generation of defined high field strength levels for radiated immunity testing.



Frequency Range:

(65)80-1500(3000) MHz
Polarisation:

linear
Pattern Type:

directional
Material:

Aluminium
Max Power (7/16):

2 kW (const.)
3 kW (intermitt.)
Max Power (N):

1 kW (const.)
1.5 kW (intermitt.)
Connector:

Type 7/16 female
Type N female
Impedance: 50 Ohms nominal


Length: 1660 mm
Width: 2160 mm
Height 1940 mm
Weight: 10.0 kg
Mounting: 22 mm diameter tube







[fastlinks.pdf] for quick removal of the rear parts of the antenna.



Recommended Adapter: AA 9209.





Datasheet STLP 9128 E

Radiation Pattern

Short Measuring Distances

VSWR

Assembly of STLP Antennas
