STLP 9148 - Stacked Microwave Log-Periodic Antenna

STLP 9148 - Stacked Microwave Log-Per Antenna

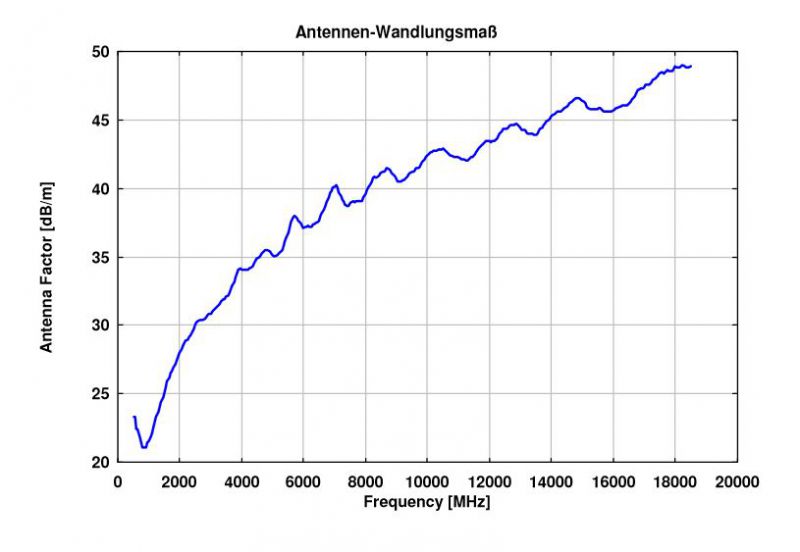

  • STLP 9148 - Typical Antenna Factor

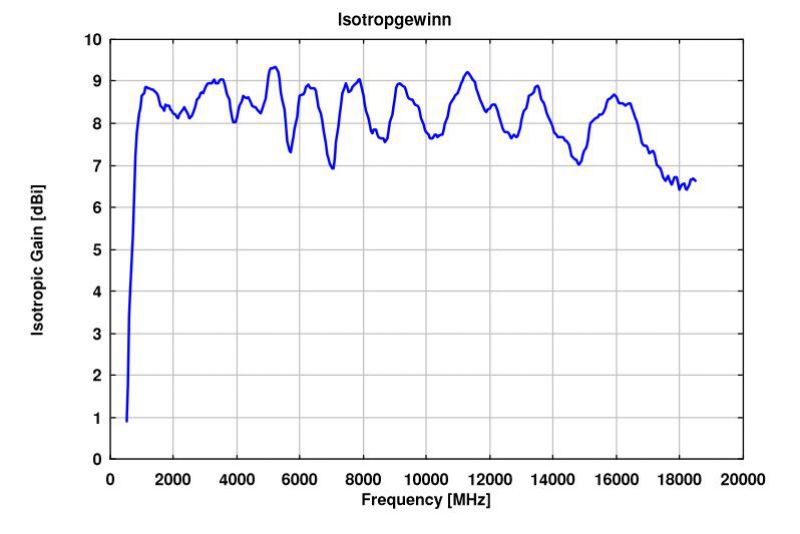

  • STLP 9148 - Typical Antenna Gain

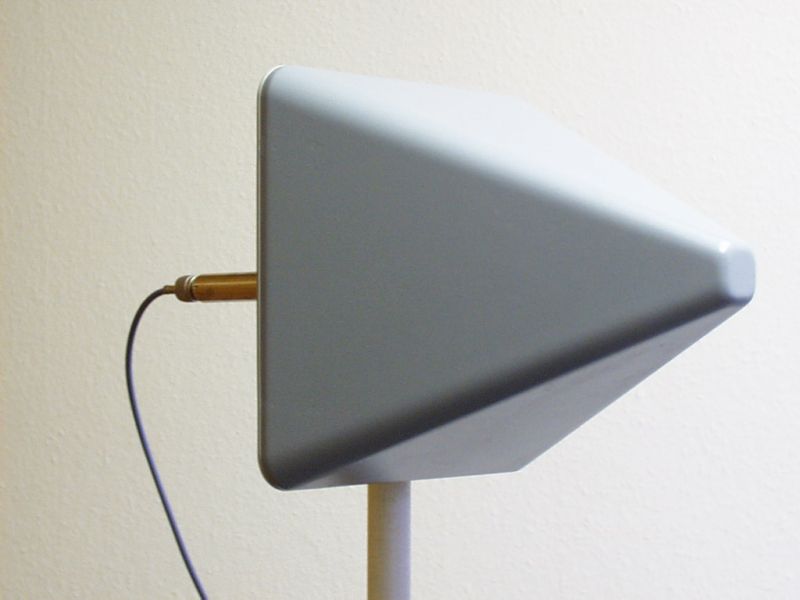

  • Schwarzbeck STLP9148 stacked log. periodic antenna

Stacked Logarithmic-Periodic Broadband Antenna for Linear polarised RX- and TX-applications in the microwave frequency range.



Frequency Range:

(0.7)1-18 (20) GHz

Polarisation:

linear

Pattern Type:

directional

typ. Gain:

9 dBi

   Max. Input Power:

50 W

   Connector:

Type N female

Impedance: 50 Ohms nominal



Length: 490 mm
Width: 270 mm
Height: 270 mm
Weight: 1.2 kg
Mounting: 22 mm diameter tube



pdficon small Datasheet STLP 9148

Radiation Pattern

Short Measuring Distances

Fieldstrength
