STLP 9128 F - Stacked Log Periodic Antenna

STLP 9128 F - Stacked Log Periodic Antenna

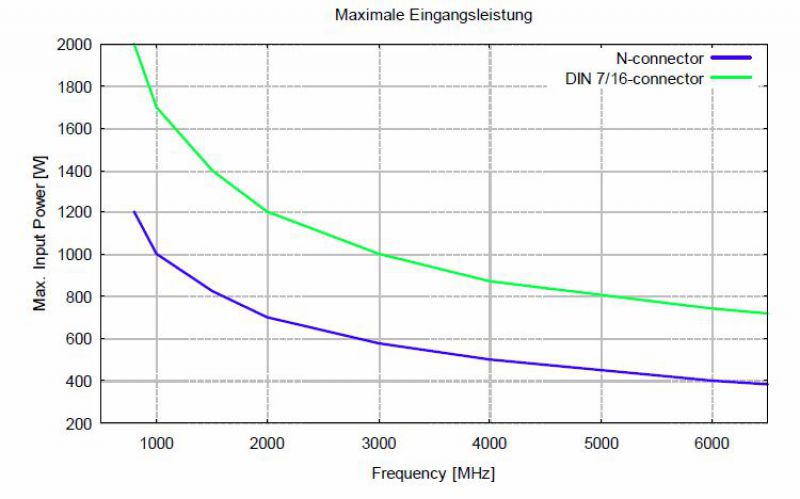

  • STLP 9128 F - Max. Input Power

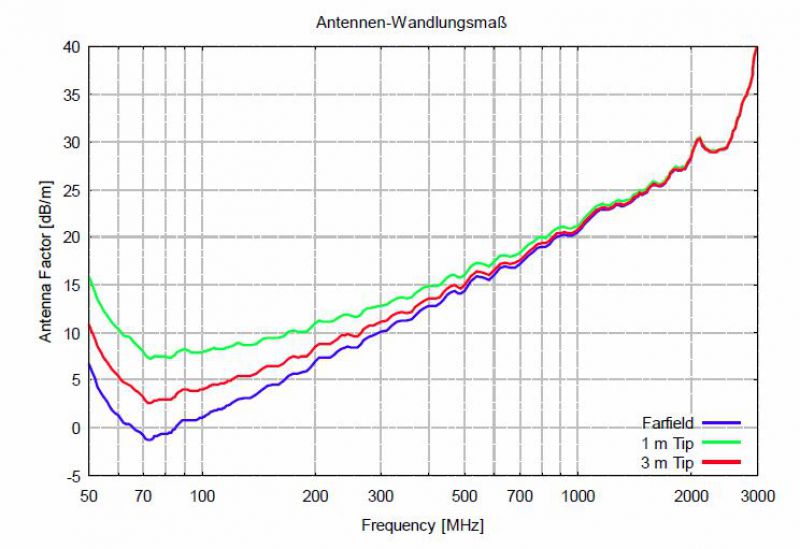

  • STLP 9128 F - Typical Antenna Factor

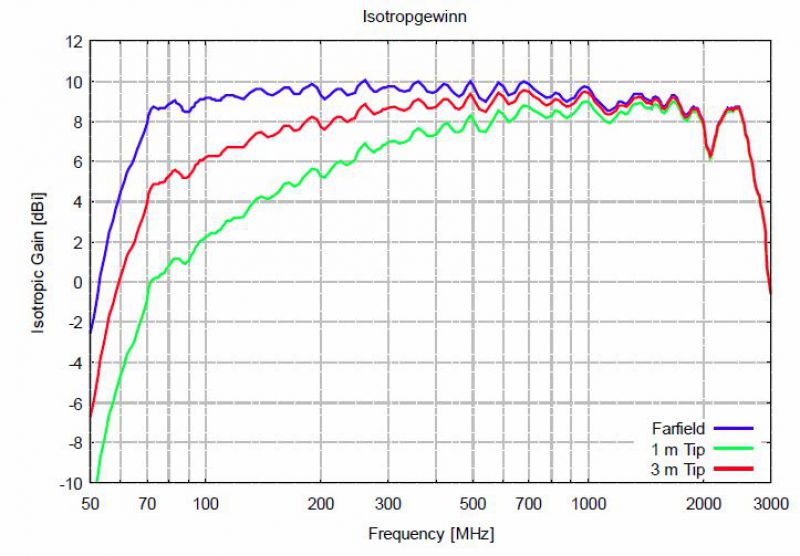

  • STLP 9128 F - Typical Antenna Gain

The stacked Log Periodic Dipole Antenna (Stacked LPDA) consists of two ordinary Log.-Per. structures. The excellent characteristics (flat gain over a large bandwidth, low SWR) of the ordinary LPDA designs could be maintained using the stacked LPDA design. The stacked design helps to focus the directional pattern of the H-plane somewhat, resulting in a typical gain improvement of 2.0 dB compared to an ordinary LP antenna. This is especially important for immunity testing, where a maximum fieldstrength and a good field uniformity is required. The beamwidth in the E-plane and the H-plane are nearly identical, providing an optimised illumination of the EuT with minimised ground reflection influence.Further the cross polar rejection of the STLP 9128 F is excellent. The fastlinks allows to disassemble the rear elements without any need for further tools within a few seconds. These fastlinks divide the antenna into five parts, which can be stored and transported easily.


Main Application: Generation of defined high field strength levels for radiated immunity testing.


Frequency Range:

(55)70-1500(3000) MHz



Pattern Type:




Max Power (7/16):

2 kW (const.)
3 kW (intermitt.)

Max Power (N):

1 kW (const.)
1.5 kW (intermitt.)


Type 7/16 female
Type N female

Impedance: 50 Ohms nominal


Length: 1950 mm
Width: 2260 mm
Height 2540 mm
Weight: 11.0 kg
Mounting: 22 mm diameter tube




[fastlinks.pdf] for quick removal of the rear parts of the antenna.


Recommended Adapter: AA 9209.
