NNLK 8130

Details



NNLK 8130 - Line Impedance Stabilisation Network

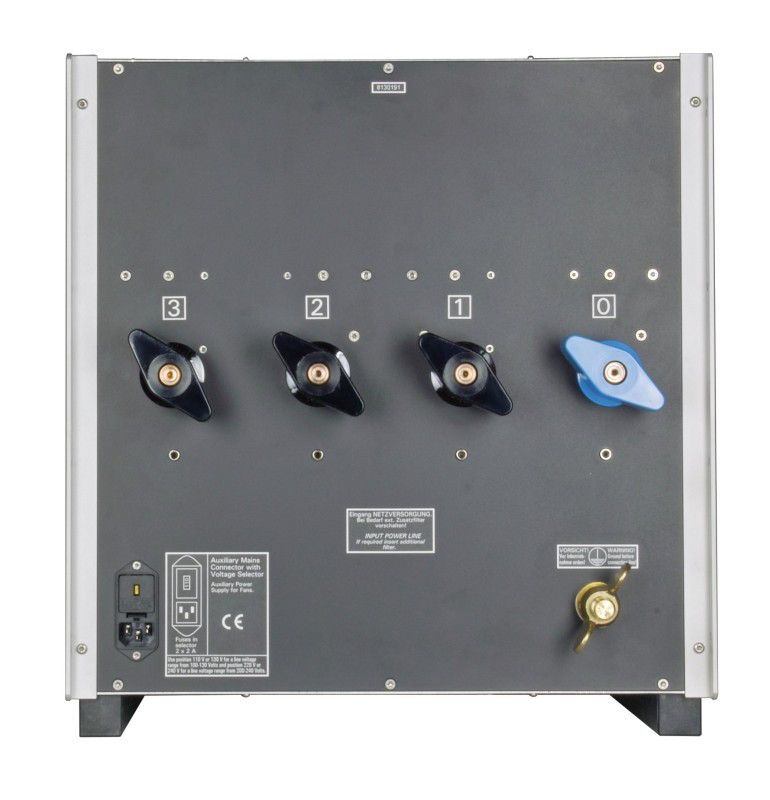

  • NNKL8130

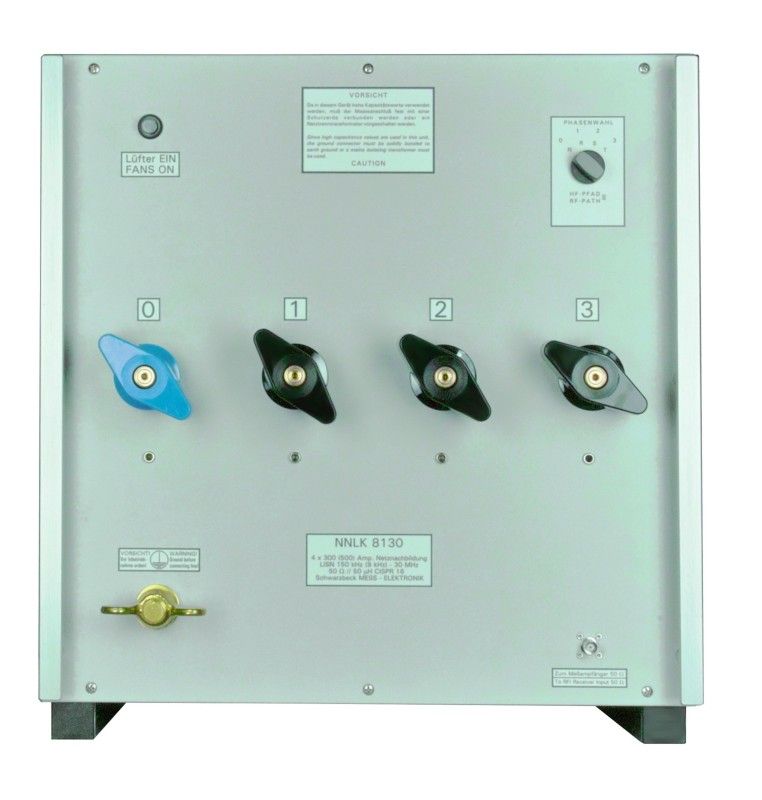

  • NNKL_8130




Topology: V-LISN
Frequency Range: (9 kHz) 150 kHz - 30 MHz
Impedance simulation: 50 µH || 50 Ω
Max. Voltage: 250 VAC 50/60 Hz
400 VDC
   Max. Current:  4 x 400 A  (with fans ON)
Mains terminals: 4 wing terminals
Terminals for E.u.T.: 4 wing terminals
Length: 738 mm
Width: 448 mm
Height: 473 mm

Weight:

 ~55 kg
Standard: CISPR 16-1-2



pdficon small Datasheet NNLK 8130

pdficon small Data



Optionen:

Opt. RC

Option RC for LISN: Remote Control with built in power supply. LISN can be controlled by R&S or Schwarzbeck code, including remote control cable for your receiver type (Please specify your receiver type!). LISN can be selected from the R&S receiver menu or in the EMC32 software like an R&S LISN. No programming of the user interface necessary. Functions: path selection and PE grounded or via choke.



pdficon small NNLK 8130 Opt. RC



Opt.400/700 V:

400/630 V Stern-/Dreieckspannung



Opt. TC

The temperature monitor modul which is optional available for the NNLK LISN warns the user optical and acoustical when the temperature gets too high. It controls the fans of the LISN temperature-dependent, too and thus prevents overheating. If a critical temperature is reached the temperature control modul indicates this optically and acoustically.



pdficon small NNLK 8130 Opt. TC
