NSLK 8163



NSLK 8163 - Line Impedance Stabilisation Network

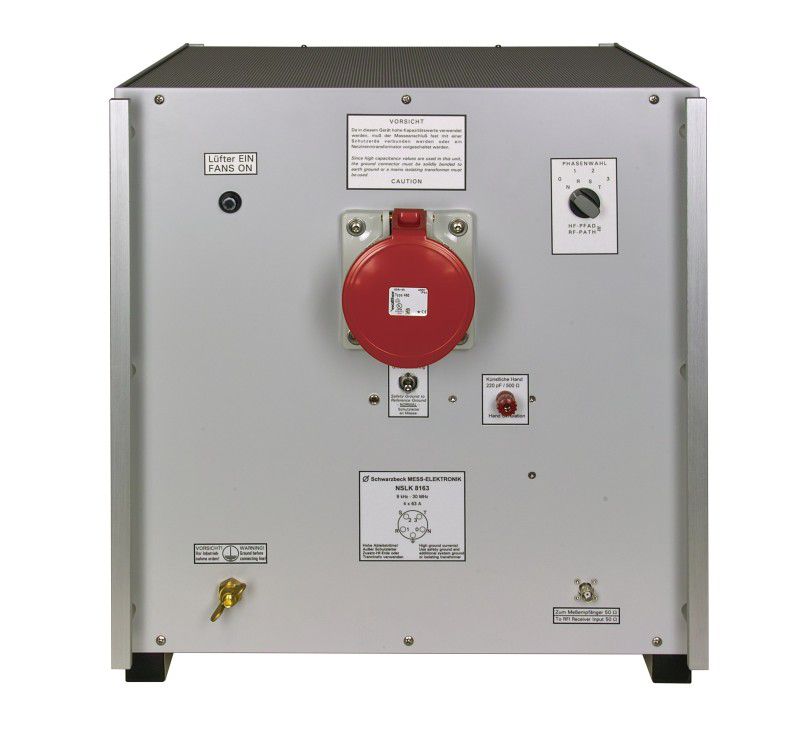

  • Schwarzbeck NSLK 8163 - Line Impedance Stabilisation Network

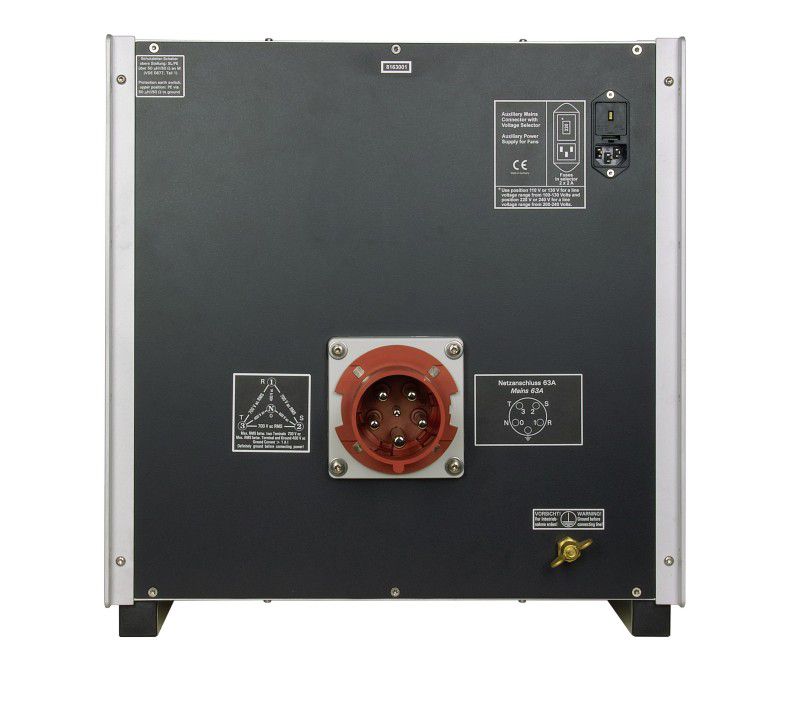

  • Schwarzbeck NSLK8163 - Line Impedance Stabilisation Network




Topology: V-LISN
Frequency Range: 9 kHz - 30 MHz
Pre-filter choke: 250 µH
Impedance simulation: 50 Ω || (50 µH + 5 Ω)
Max. continuous current CEE: 4 x 63 A
max. Voltage:

400 / 700 VAC
630 VDC

Supply cable: CEE plug (IEC 60309)
Connector for EuT: CEE socket (IEC 60309  3L+N+PE 63 A)
Connector for "artificial hand": 4 mm laboratory socket with screw terminal 6 mm,
not removable
Connector to EMI-receiver: BNC socked, 50 Ω
Length: 650 mm
Width: 450 mm
Height: 480 mm
Weight: 40.8 kg
Standard: CISPR 16-1-2



pdficon small Datasheet NSLK 8163



Options:

Opt. RC:

Option RC for LISN: Remote Control with built in power supply. LISN can be controlled by R&S or Schwarzbeck code, including remote control cable for your receiver type (Please specify your receiver type!). LISN can be selected from the R&S receiver menu or in the EMC32 software like an R&S LISN. No programming of the user interface necessary. Functions: path selection and PE grounded or via choke.



pdficon small NSLK 8163 Opt. RC
