UHALP 9108 A - Log Periodic Antenna

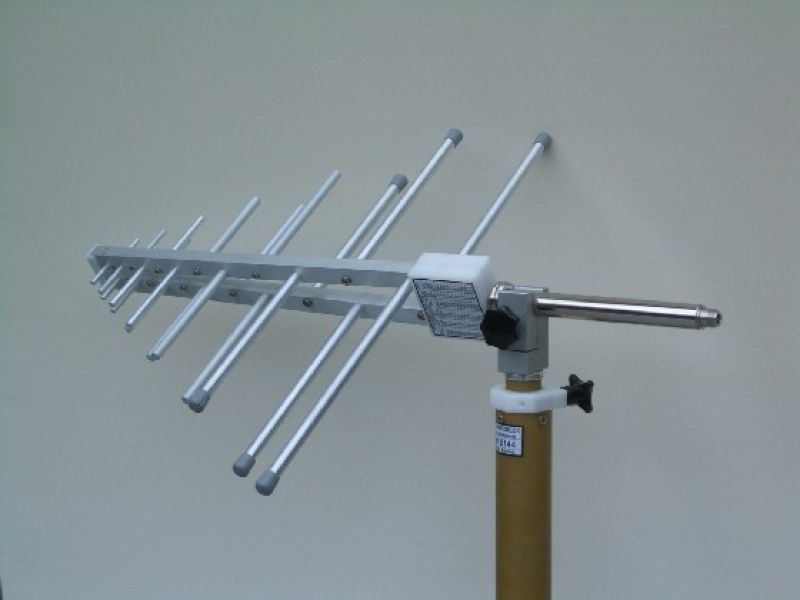

  • Schwarzbeck UHALP 9108A Log.-Periodic Antenna

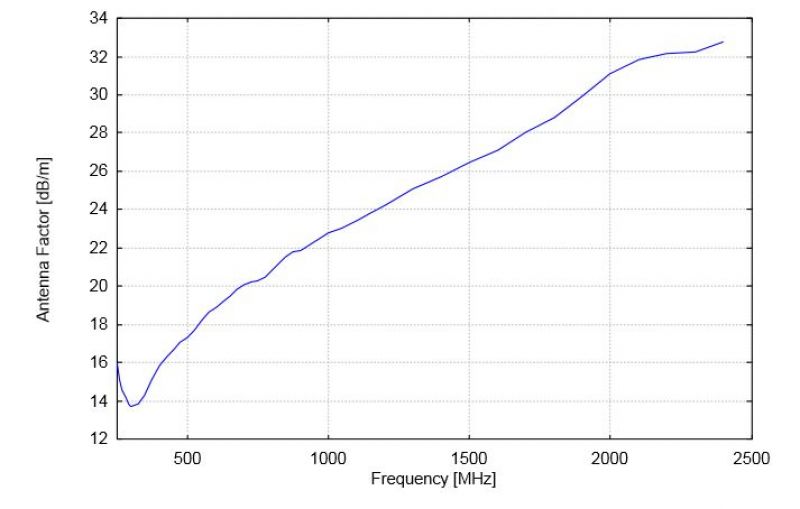

  • UHALP 9108 A - Typical Antenna Factor

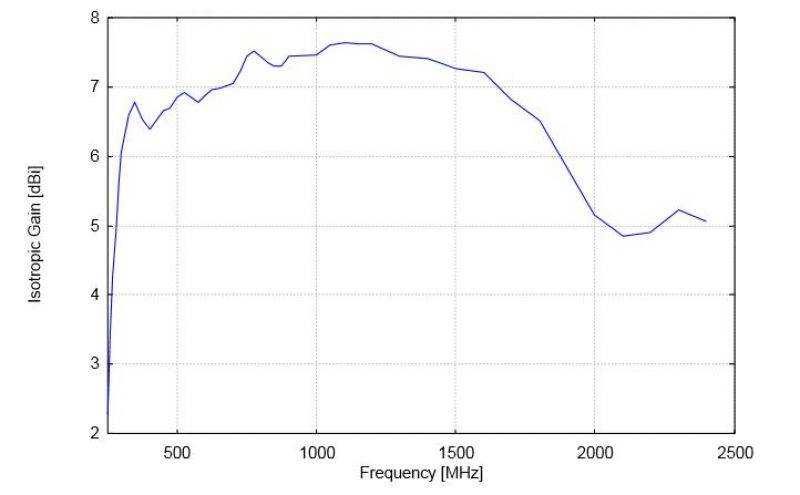

  • UHALP 9108 A - Typical Gain





Frequency Range:  250 - 2400 MHz
Polarisation:  linear
Pattern Type:  directional
Material:  Aluminium
Max Power: 1 kW
Connector: Type N female
Impedance: 50 Ω nominal
Length: 0.69 m
Width: 0.51 m
Weight: 1.35 kg
Mounting: 22 mm diameter tube



pdficon small Datasheet UHALP 9108 A

pdficon small Dimensions

Radiation Pattern

Short Measuring Distance

VSWR

Fieldstrength
