VULP 9118 C - Log Periodic Antenna

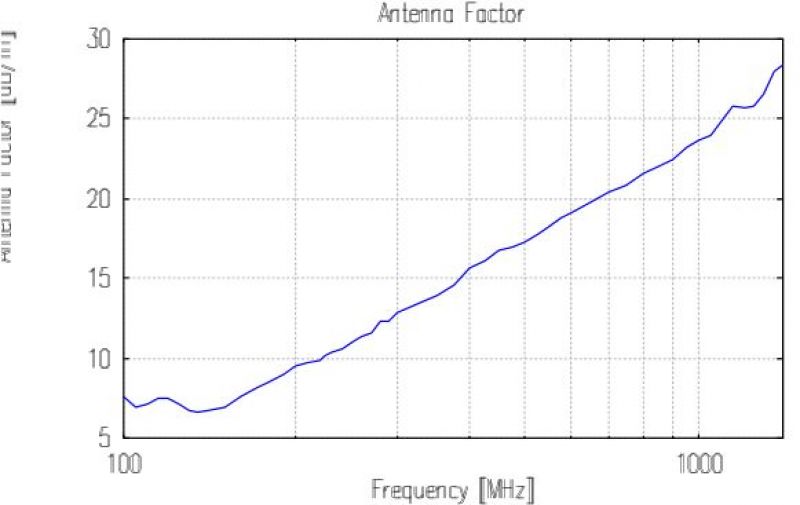

  • VULP 9118 C - Typical Antenna Factor

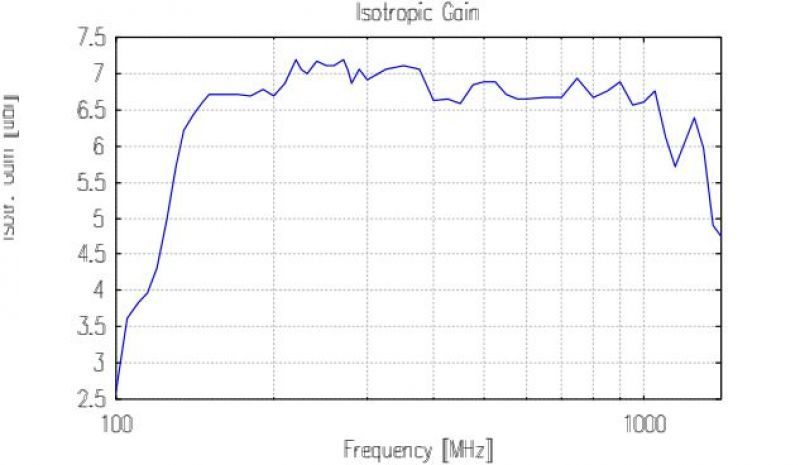

  • VULP 9118 C - Typical Antenna Gain
Frequency Range: 100 -1400 (2000) MHz
Polarisation: linear
Pattern Type: directional
Material: Aluminium
Max Power: 1 kW
Connector: Type N female
Impedance: 50 Ω nominal



Length: 1.39 m
Width: 1.20 m
Weight: 2.8 kg
Mounting: 22 mm diameter tube



Datasheet VULP 9118C

Dimensions

Radiation Pattern

VSWR
