VUSLP 9111 - Log Periodic Antenna



VUSLP 9111 - Log Periodic Antenna

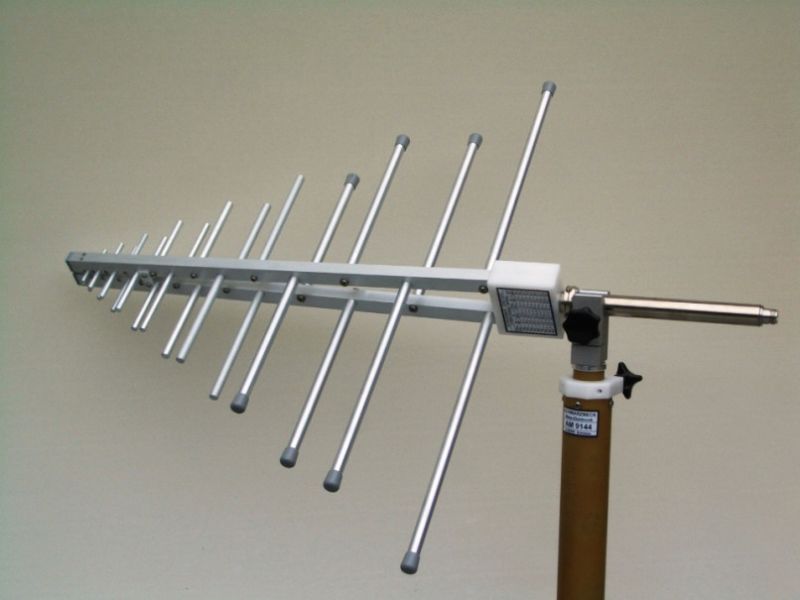

  • Schwarzbeck VUSLP9111

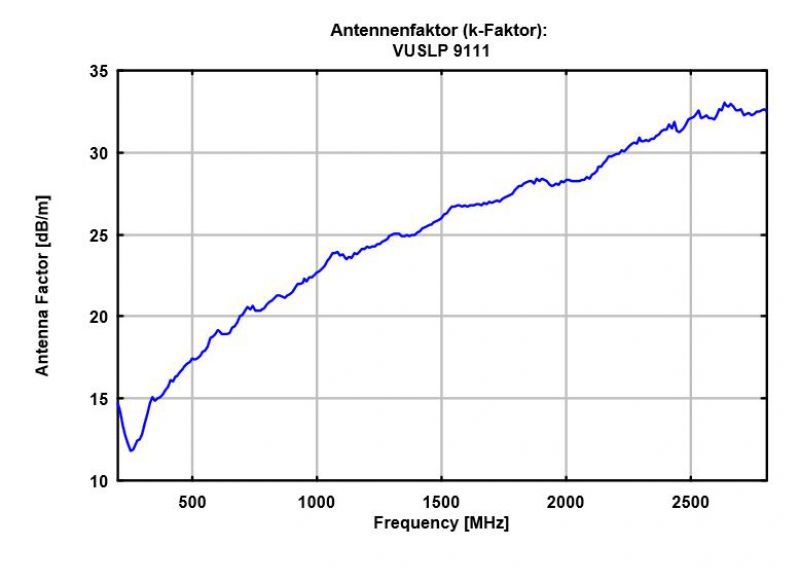

  • VUSLP 9111 - Typical Antenna Factor

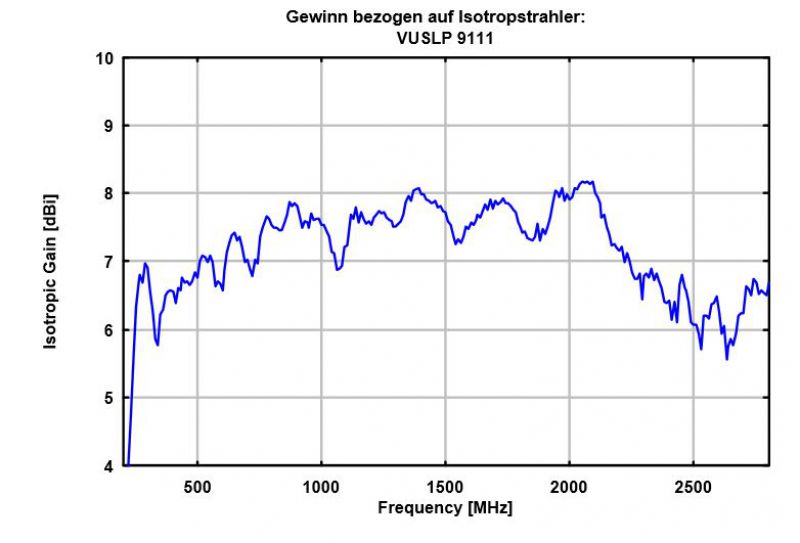

  • VUSLP 9111 - Typical Antenna Gain
Frequency Range:

(200) 230 - 2300 (4000) MHz

Polarisation: linear
Pattern Type: directional
Material: Aluminium
Max Power: 1 kW (230 MHz)
Connector: Type N female
Impedance: 50 Ω nominal



Length: 0.80 m
Width: 0.65 m
Height: 0.08 m
Weight: 1.6 kg



Datasheet VUSLP 9111

Radiation Pattern

Short Measuring Distance

VSWR

Fieldstrength
