USLP 9143 - Log Periodic Antenna

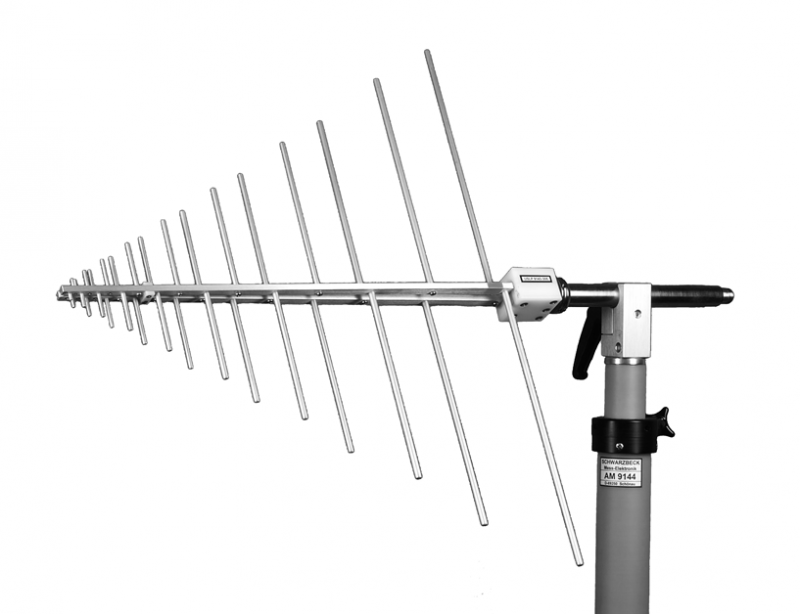

  • Schwarzbeck USLP 9143 log.-periodic antenna

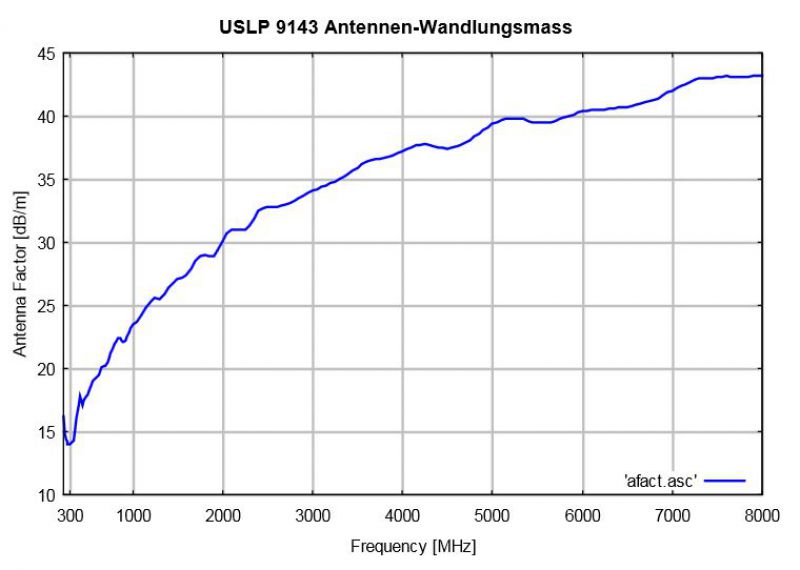

  • USLP 9143 - Typical Antenna Factor

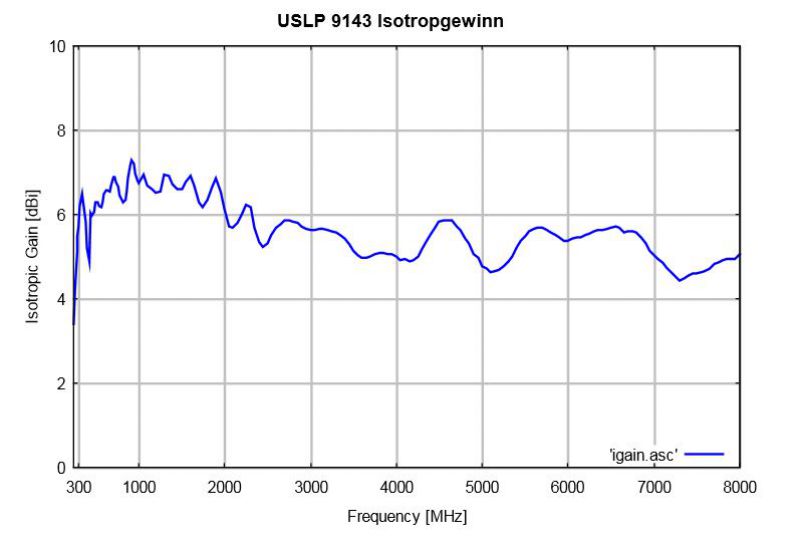

  • USLP 9143 - Typical Antenna Gain
Frequency Range:

(250) 300 MHz - 7 (8) GHz

Polarisation: linear
Pattern Type: directional
Material: Aluminium
Max Power: 200 W (<500 MHz)
Connector: Type N female
Impedance: 50 Ω nominal



Length: 0.69 m
Width: 0.55 m
Height: 0.05 m
Weight: 1.1 kg
Mounting: 22 mm tube
Recommended Adapter: AA 9203 / AA 9202



Datasheet USLP 9143

Dimensions

Radiation Pattern

Short Measuring Distance

pdficon small VSWR

pdficon small Fieldstrength
