ESLP 9145 - Microwave Log Periodic Antenna

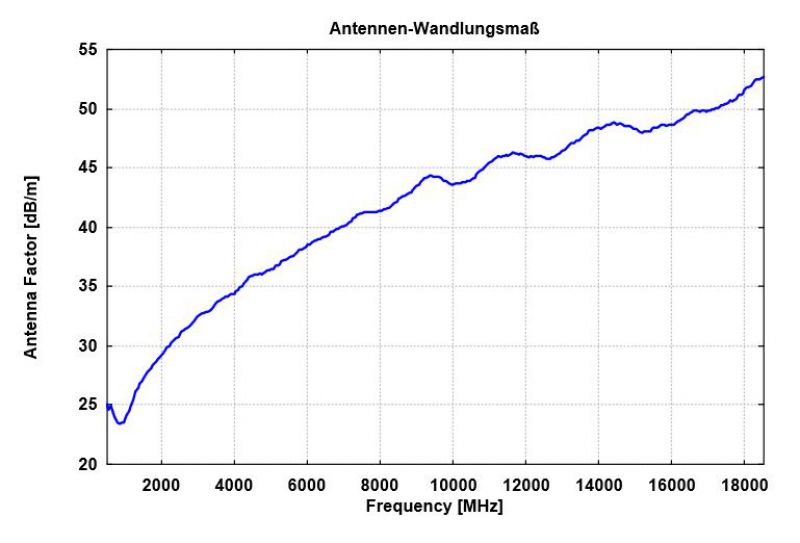

  • ESLP 9145 - Typical Antenna Factor

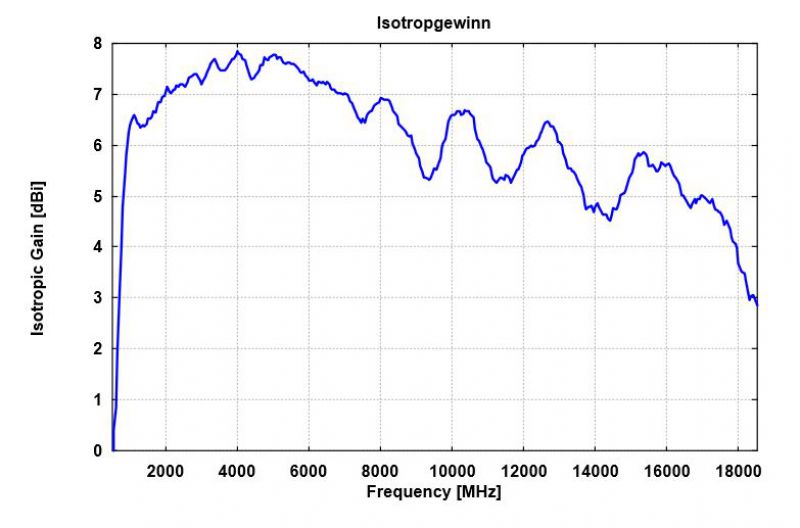

  • ESLP 9145 - Typical Antenna Gain

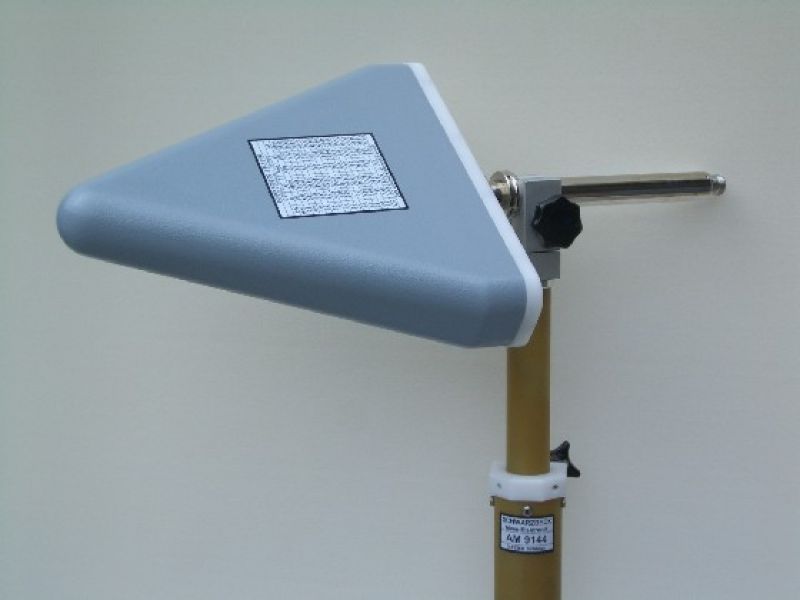

  • Schwarzbeck ESLP 9145 log.-periodic antenna





Frequency Range:

(0.7) 1 - 18 (20) GHz

Polarisation: linear
Pattern Type: directional
Max Power: 20 W
Connector: Type N female
Impedance: 50 Ω nominal



Length: 0.50 m
Width: 0.24 m
Height: 0.04 m
Weight: 0.9 kg
Mounting: 22 mm tube
Recommended Adapter: AA 9203 / AA 9202



A new low attenuation cover allows measurements with radome.

For older models with S/N<184 check manual!



Datasheet ESLP 9145

Radiation Pattern

VSWR

Fieldstrength
