BBHA 9120 J - Broadband High Gain Horn Antenna

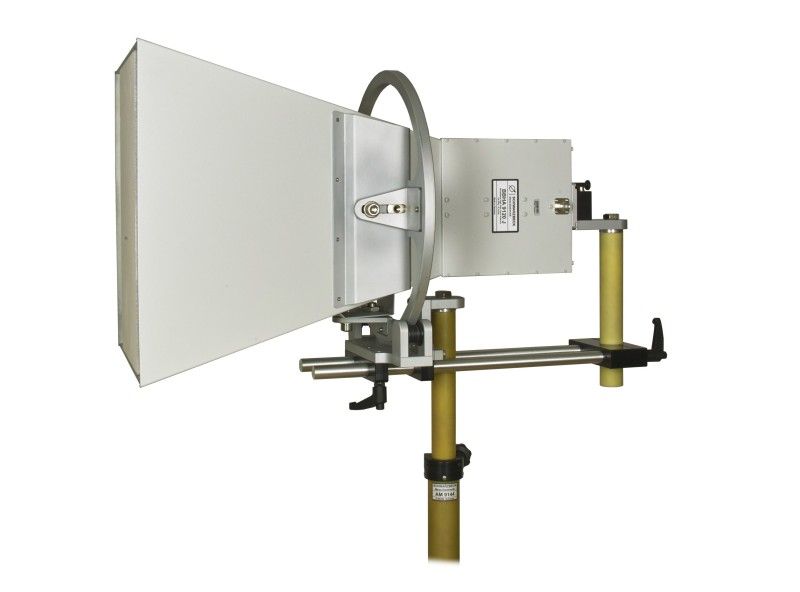

  • BBHA 9120 J - High Gain Horn Antenna with PDG 9211 - Polarisations Swivel Fixture

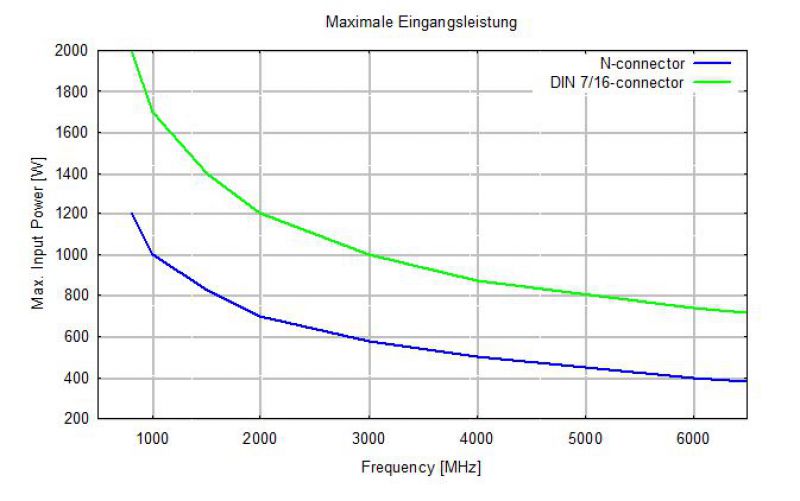

  • BBHA 9120 J - Max. Input Power

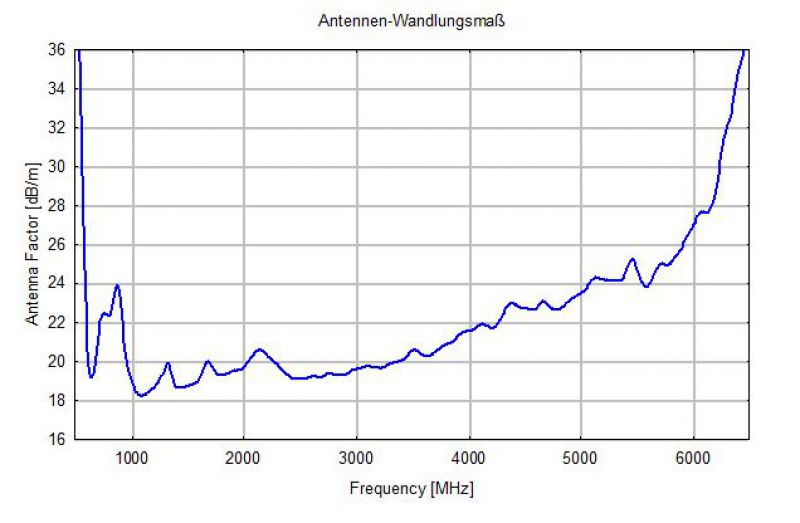

  • BBHA 9120 J - Typical Antenna Factor

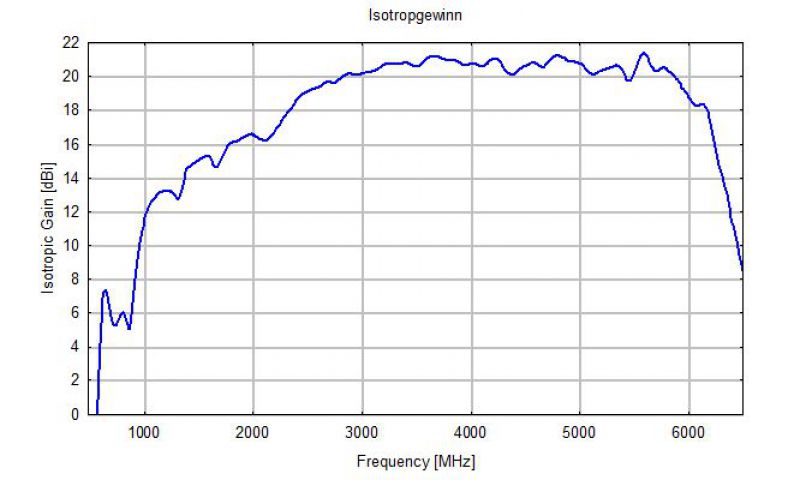

  • BBHA 9120 J - Typical Gain

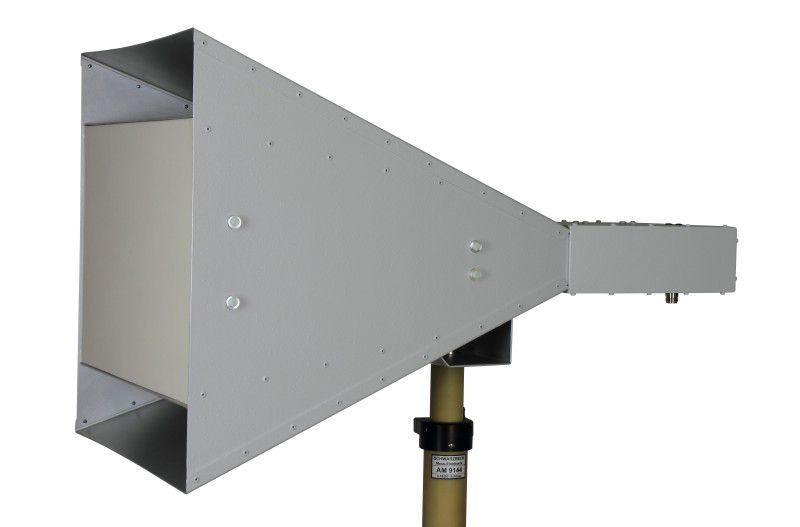

  • BBHA 9120 J



The broadband horn antenna BBHA 9120 J is a linear polarized high gain antenna for the frequency range 800 MHz to 6.2 GHz. The gain increases from 11 dBi at 1GHz up to more than 20 dBi at higher frequencies.







Frequency Range, nominal: 800 MHz - 6.2 GHz
Polarisation: linear
Pattern Type: directional
Material: Aluminium
Max Power: see diagram
Connector: N (optional 7/16)
Impedance: 50 Ω nominal
Length: 680 mm
Width: 435 mm
Height: 440 mm
Weight: 7.6 kg
Mounting: Center Mount 3/8" + M12
Recommended Accessories: PDG 9211 - Polarisation Swivel Fixture





Datasheet BBHA 9120 J



Radiation Pattern



Fieldstrength
