BBHA 9120 LF - Double Ridged Broadband Horn Antenna

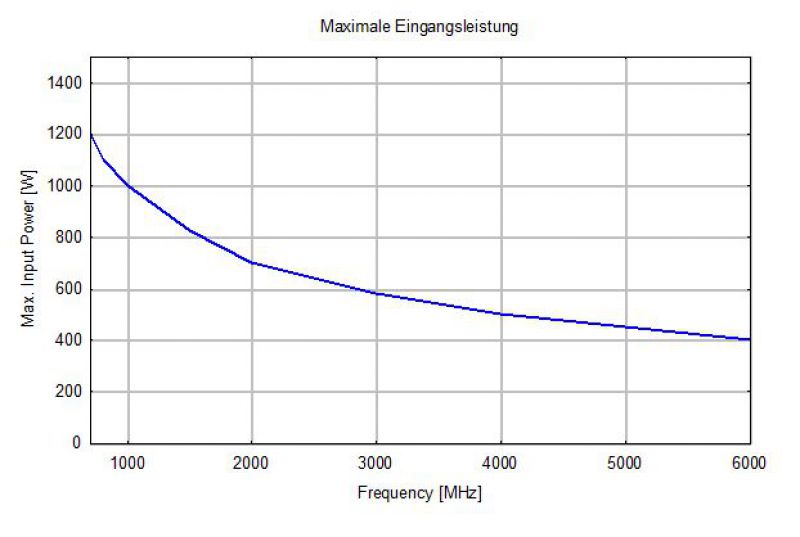

  • BBHA 9120 LF - Max. Input Power

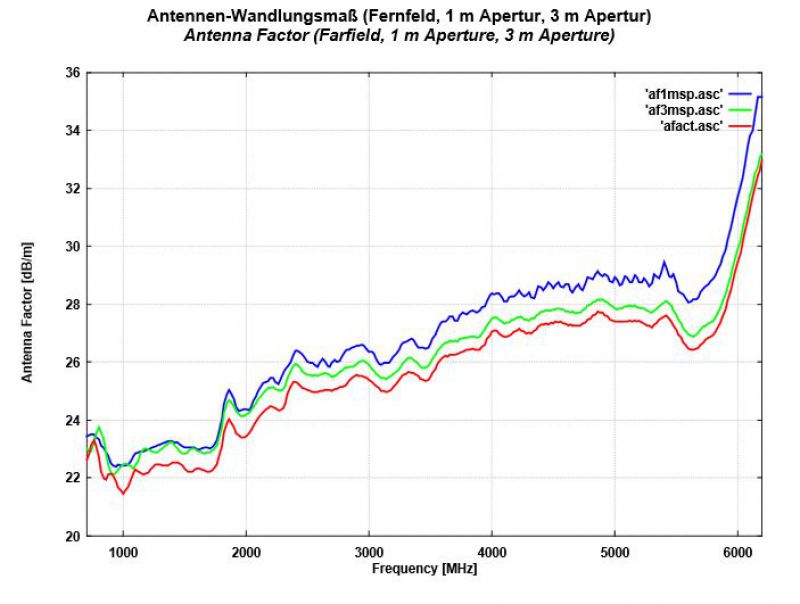

  • BBHA 9120 LF - Typical Antenna Factor

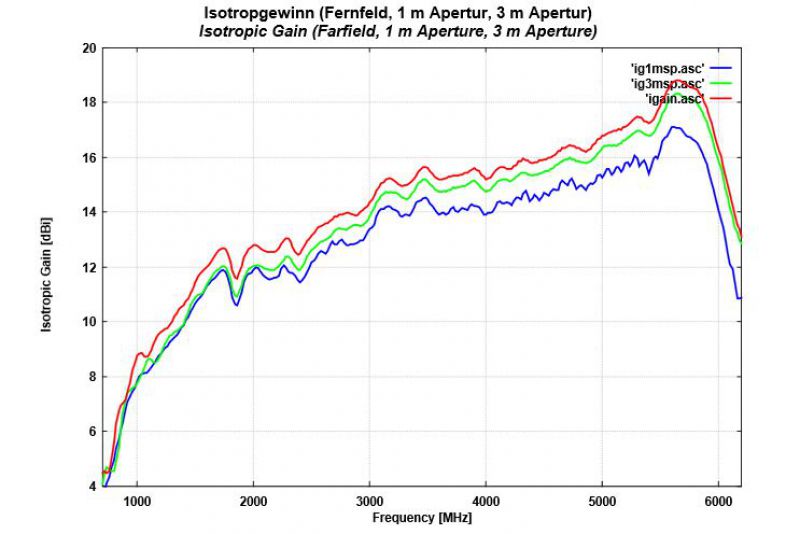

  • BBHA 9120 LF - Typical Gain
  • BBHA 9120 LF

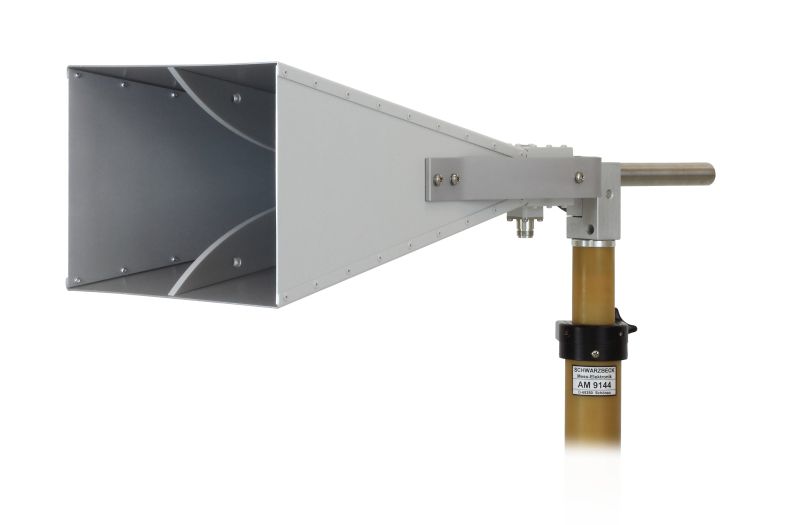

The broadband horn antenna BBHA 9120 LF is a linear polarized double ridged horn antenna for the frequency range 0.7 GHz to 6 GHz.





Frequency Range, nominal: 0.7 GHz - 6 GHz
Polarisation: linear
Pattern Type: directional
Material: Aluminium
Max Power:

see diagramm

Connector: N - female
Impedance: 50 Ω nominal
Length: 420 mm (620 mm)
Width: 270 mm
Height: 185 mm
Weight: 2.3 kg
Mounting: 22 mm tube



Datasheet BBHA 9120LF



Radiation Pattern
