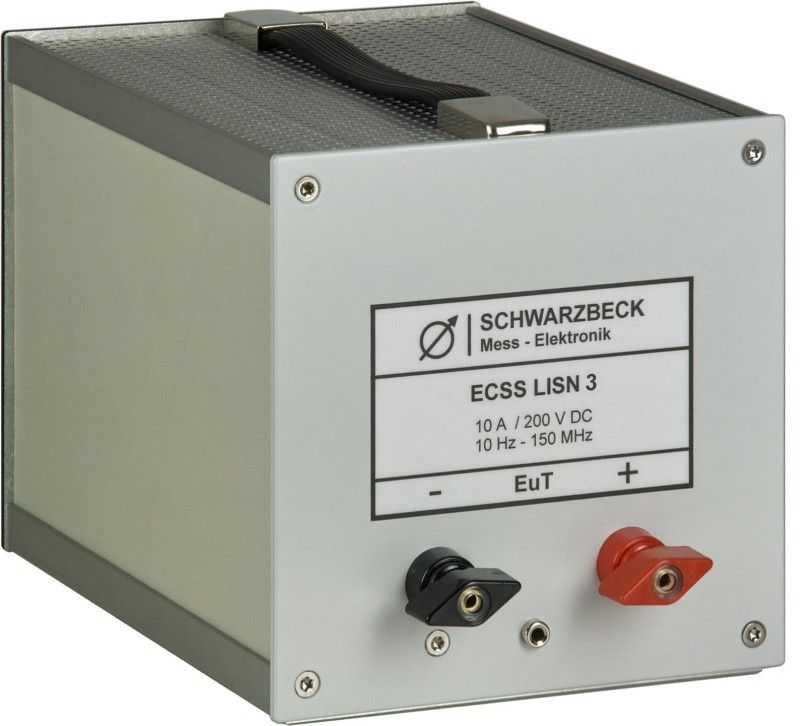

The ECSS LISN 3 was developed following the „European Cooperation for Space Standardisation“. The ECSS LISN 3 is used for DC mains lines. The impedance characteristic of each path is basically realized by an inductor in parallel with the 50 Ohm resistor: 0.7 μH || 50 Ω.



Frequency Range: 10 Hz - 150 MHz
Max. cont. current: 10 A
Max. current (limited time): 15 A
Max. voltage (DC): 200 V
Impedance: (0.7 µH ) || 50 Ω
DC-Recistance mains-EuT: 50 mΩ
EuT connectors: screw terminals M7x0.75
unscrewable with 4 mm jacks
Dimensions (WxHxD): 160 x 165 x 210 mm
Weight 2.4 kg
Standard: ECSS-E-ST-20-07 Rev1
