BBV 9745 - Broadband Preamplifier



BBV 9745 - Broadband Preamplifier

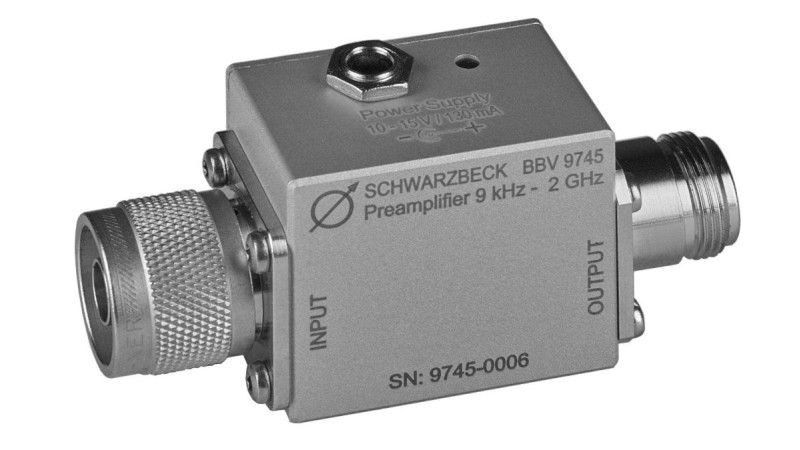

  • BBV 9745 - Broadband Coaxial Preamplifier

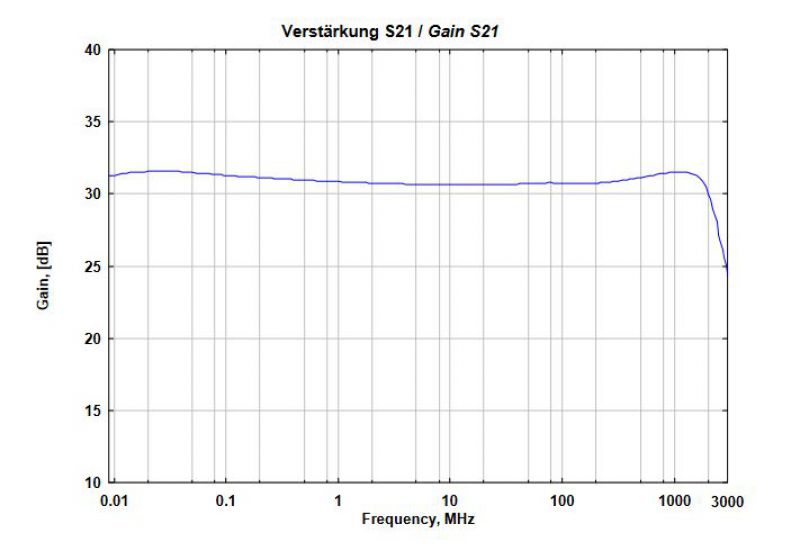

  • BBV 9745 - Typical Gain




Frequency range (nominel):

 9 kHz - 2 GHz

Noise figure:

 typ. 2.5 dB (1.0 GHz)

Gain:

 typ. +30 dB

Amplitude flatness:

 < +/- 3 dB

1 dB compression point at input:

 > -20 dBm
 (87 dBµV)

Impedance:

 50 Ω



VSWR input / output:

 < 2 : 1



Ambient temperature:

 -10°C ... +60°C

Power supply:

 + 12 (+/-2V)
 120 mA

Material of the housing:

 Aluminium

Housing dimensions:

 42 x 35 x 27 mm

Overall dimensions:

 82 x 38 x 27 mm

Weight:

 150 g



  Datasheet BBV 9745
