BBV 9719 - Microwave Broadband Premplifier



BBV 9719 - Microwave Broadband Preamplifier

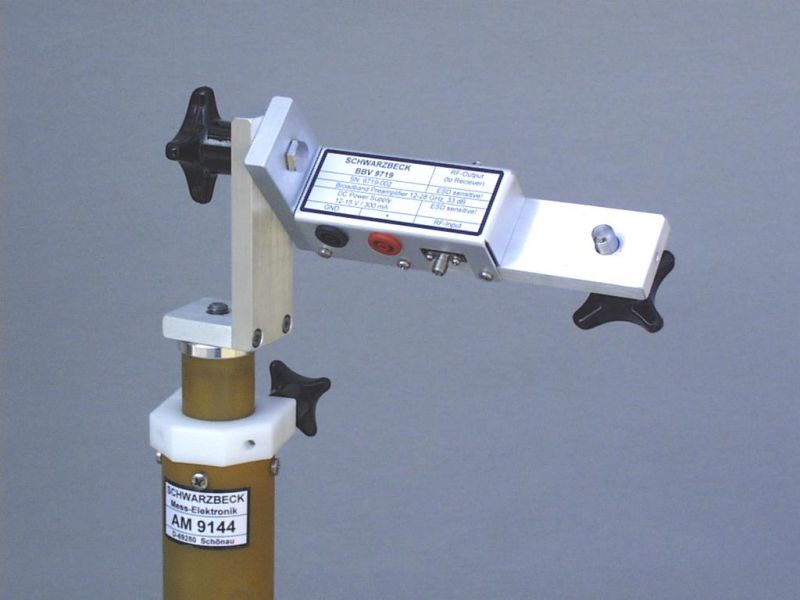

  • BBV 9719 - Broadband Preamplifier

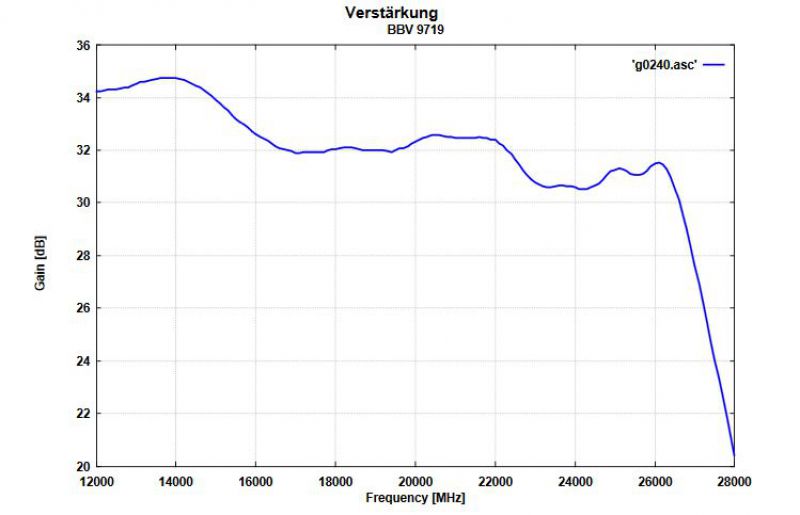

  • BBV 9719 - Typical Gain




Frequency range (nominel):

 18 - 26.5 GHz

Useable frequency range:

 12 - 28 GHz

Gain:

 typ. 33 dB +/-2 dB

Gain min.:

 30 dB

SWR typ.:

 <2

Max. input power:

 -20 dBm (87 dBµV)

1 dB Compression:(at output)

 >+17 dBm (124 dBµV)

Noise Figure:

 3.5 dB

Connectors:  50 Ω SMA
Supply Voltage:  12 V - 15 V DC
Current Consumption:  250-300 mA
Power Supply via female Banana sockets:  4 mm

Dimensions:

 210 x 100 x 60 mm

Weight:

 150 g



Including short cable with SMA plugs to connect the BBV 9719 with the antenna (for example BBHA 9170)


  Datasheet BBV 9719



Options:

Option Akku: Rechargeable battery pack for BBV 9718 or 9719.

Option ALCS 2-24A: Battery charger ALCS 2-24A for rechargeable battery pack.

Option PS: Power supply for BBV 9718 or 9719.
