BBV 9748 - Broadband Preamplifier



BBV 9748 - Broadband Preamplifier

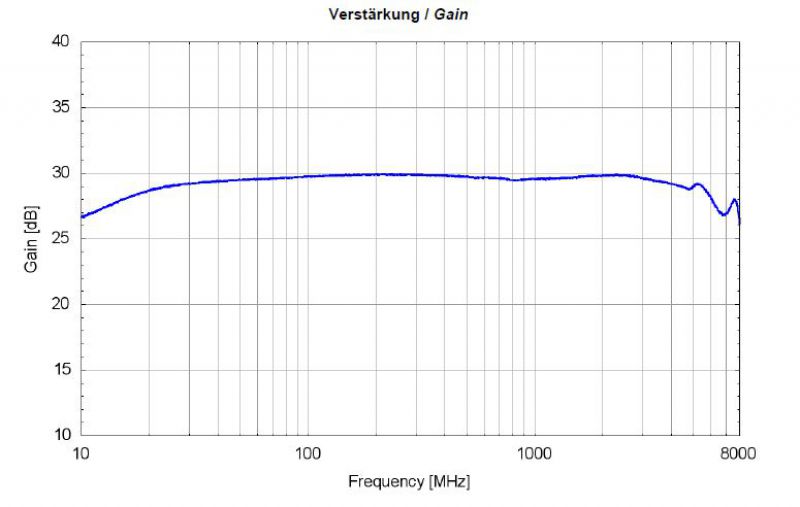

  • BBV 9748 - Typical Gain

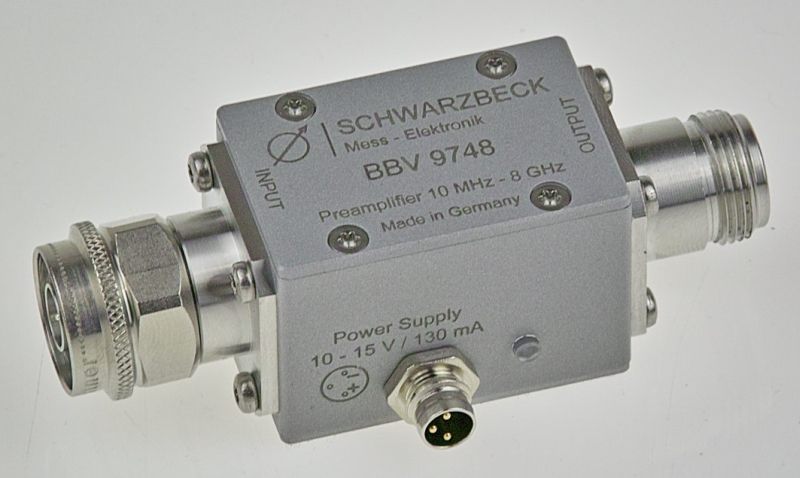

  • BBV 9748




Frequency range (nominel):

 10 MHz - 8 GHz

Noise figure:

 typ. 2.7 dB (1.0 GHz)

Gain:

 typ. 29 dB

Amplitude flatness:

 < +/- 3 dB

1 dB compression point at input:

 > -17 dBm


Impedance:

 50 Ω



VSWR input / output:

 < 2 : 1



Ambient temperature:

 -10°C ... +60°C

Power supply:

 +10-15 V
 120 mA

Material of the housing:

 Aluminium

Housing dimensions:

 42 x 28 x 29 mm

Overall dimensions:

 85 x 36 x 29 mm

Weight:

 130 g



  Datasheet BBV 9748
