  • FMZB 1525

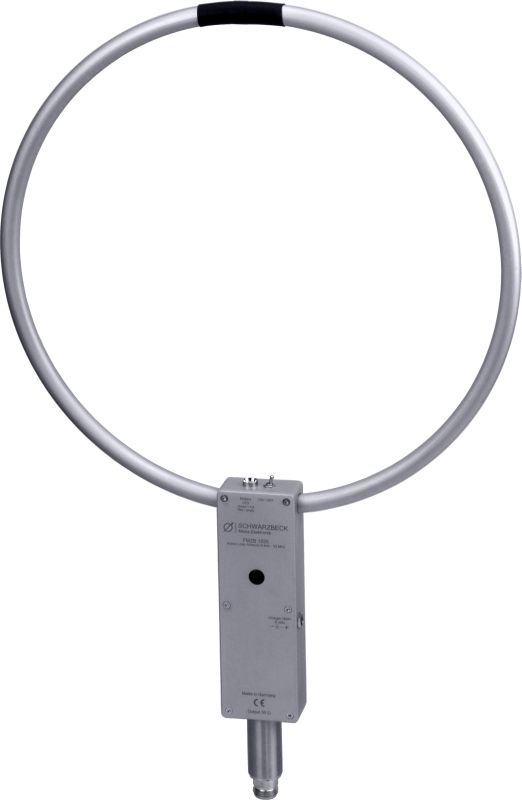

The FMZB 1525 is an active, shielded handheld loop antenna with nearly constant antenna factor over the entire frequency range. It can be used for testing according to CISPR, MIL, FCC, EN, ISO, ANSI, ETSI and many other standards.

It can be used for the frequency selective measurement of magnetic fields (or fictive electric field) in the frequency range from 9 kHz to 30 MHz.

The active loop antenna is especially suitable for mobile applications, for instance if used with a handheld spectrum analyzer. Combined with a CISPR 16 EMI-receiver the FMZB 1525 makes a convenient field strength measuring system with low noise and pulse measuring capabilities.


Nominal Frequency Range: 9 kHz - 30 MHz
Loop Diameter: 300 mm
Connector: N-female 50 Ω
Antenna Factor for fict. E - fieldstrength: 10 dB/m
Antenna Factor for H - fieldstrength: -41.5 dB/Ωm
Maximum field strength: 125 dBμV/m (1.8 V/m)
VSWR at Output: < 2
Operation time with full Battery Capacity: > 12 h (typ. 16 h)
Battery: NiMH 9.6 V 800 mAh
Mount: 22 x 40 mm
Dimensions: 165 x 350 x 45 mm
Weight: 540 g


Datasheet FMZB 1525
