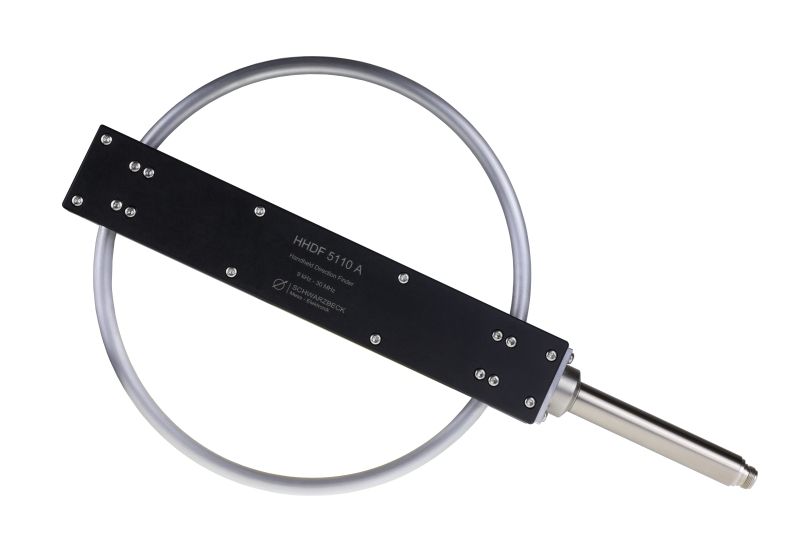

  • HHDF 5110 A - Handheld Direction Finder

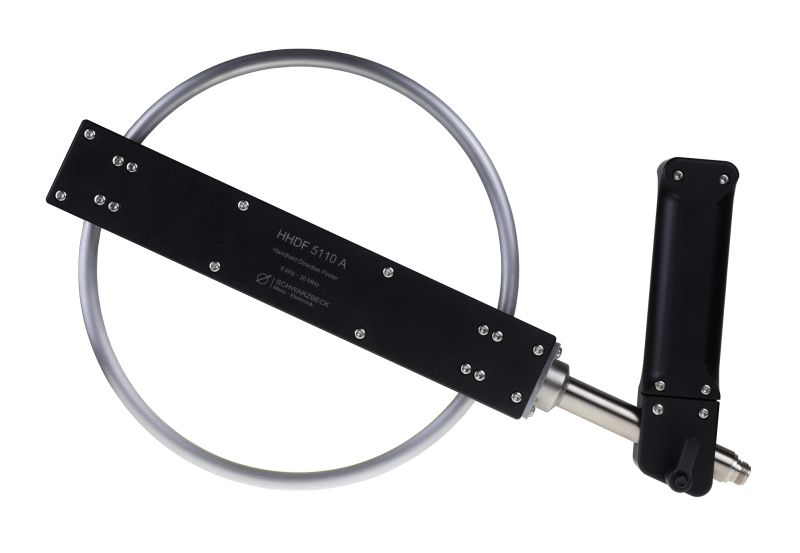

  • HHDF 5110 A with Handel





The Handheld Direction Finder HHDF 5110 A was designed to locate radio transmitters in conjunction with a suitable portable receiver or spectrum analyser. Thanks to its robust structure, the HHDF 5110 A is suitable for outdoor use, even under harsh environmental conditions.

Since the directional pattern in E-plane and H-plane is nearly equal, both horizontal and vertical polarisations can be measured well.



Nominal Frequency Range: 9 kHz ... 30 MHz
Nominal Impedace: 50 Ω
Connector: N-female
3 dB Beamwidth H-plane: typ. 94°
E-plane: omnidirectional
Antenna Faktor kH: -15 ... 45 dB/Ω m
Antenna Factor kE: 36.5 dB/m ... 96.5 dB/m
Mounting Tube: 22 mm
Dimensions: 494 x 300 x 40 mm
Weight: 900 g
Optional Accessories:

Handle
HHDF 5110 B
HHDF 5110 C
CCA


pdficon small Datasheet HHDF 5110 A

pdficon small Radiation Pattern HHDF 5110 A
