VULP 9118 A - Log Periodic Antenna

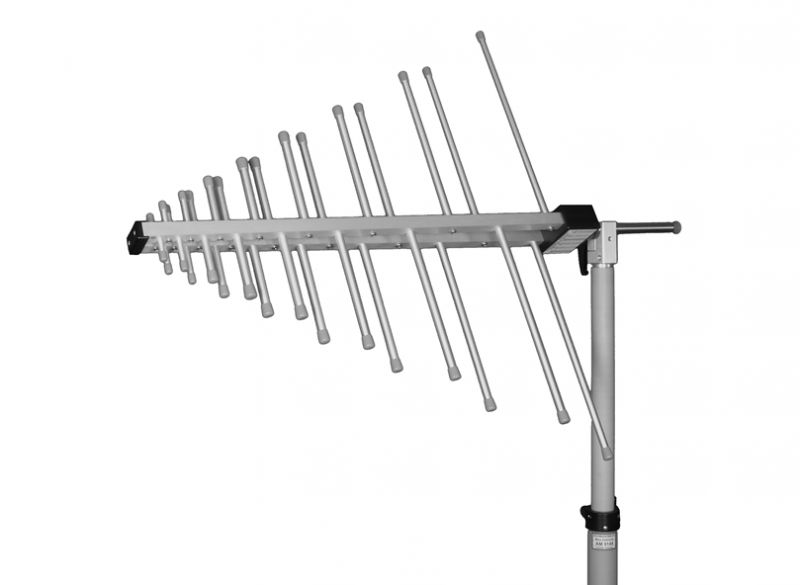

  • Schwarzbeck VULP 9118 A Log.-Per. Antenna

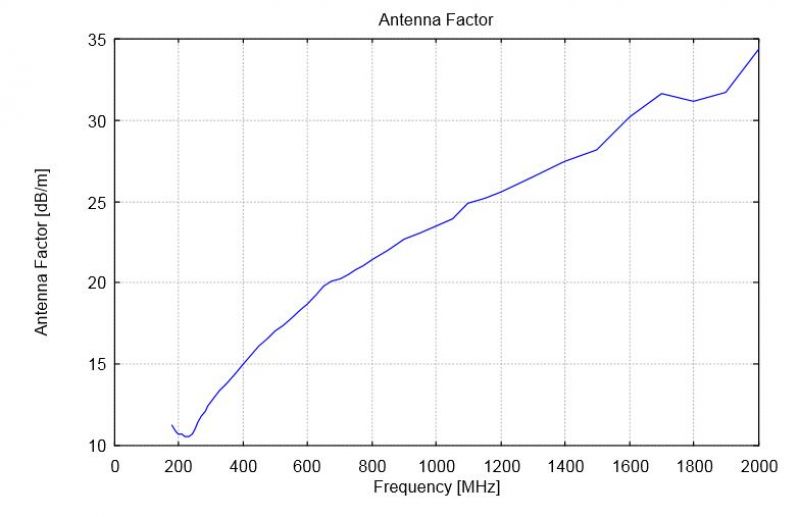

  • VULP 9118 A - Typical Antenna Factor

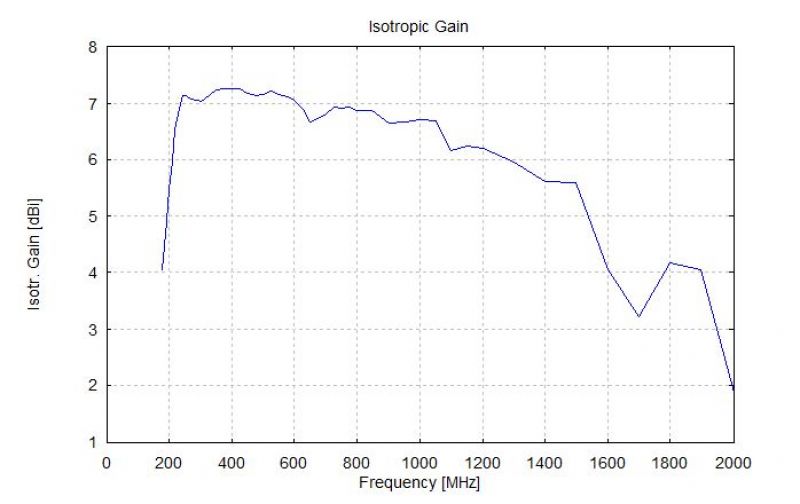

  • VULP 9118 A - Typical Gain

Frequency Range:  180 -1500 (2000) MHz
Polarisation:  linear
Pattern Type:  directional
Material:  Aluminium
Max Power:  1 kW
Connector:  Type N female
Impedance:  50 Ω nominal



Length:  0.98 m
Width:  0.75 m
Weight:  2 kg
Mounting:  22 mm diameter tube



Datasheet VULP 9118A

Dimensions

Radiation Pattern

Short Measuring Distance

VSWR

Fieldstrength
