VUSLP 9111 F - Demountable Log.-Per. Antenna

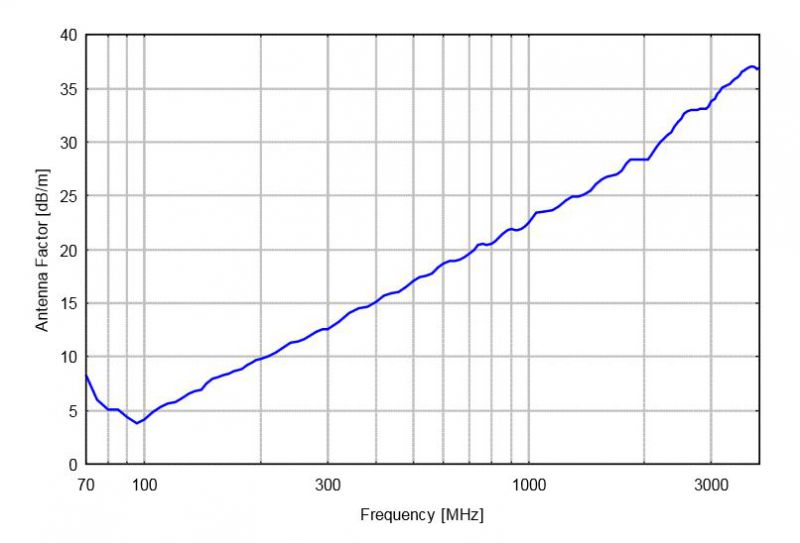

  • VUSLP 9111 F - Typical Antenna Factor

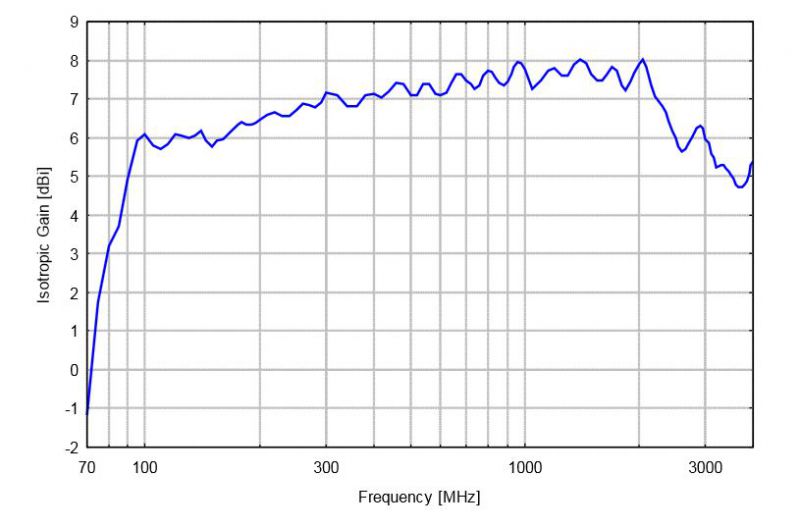

  • VUSLP 9111 F - Typical Antenna Gain

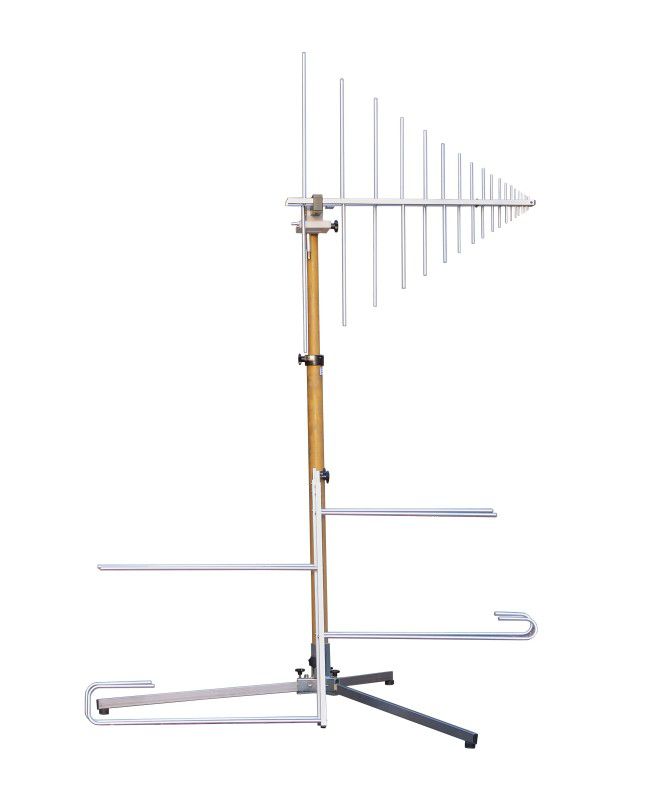

  • VUSLP 9111 F

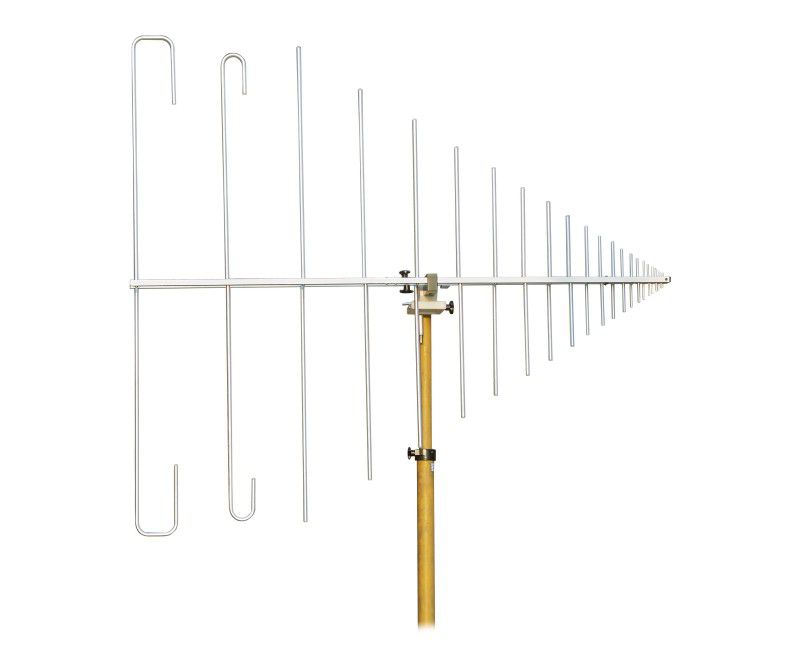

  • VUSLP 9111F


The VULSP 9111 is a demountable logarithmic- periodic broadband Antenna (LPDA) for the frequency range (75) 80 MHz up to 3 (4) GHz.



For transport and space saving storage the VUSLP 9111 F is delivered with fast links. The fast links allow to demount the rear elements within a few seconds without any tools.



After demounting the rear elements the antenna size remains half. The VUSLP 9111 F is suitable for portable applications like in monitoring vehicles.



Nominal frequency range:

 80 MHz ... 3 GHz

Usable frequency range:

 75 MHz ... 4 GHz

Polarisation:

 linear

Pattern type:

 directional

Isotropic gain:

 typ. 6.3 dBi +/- 1.3 dB

Antenna factor:

 4 ... 35 dB/m

Nominal impedance:

 50 Ω

VSWR:

 typ. 20 dB

Maxumum input power:

 1000 W (<300 MHz)
  300 W (1 GHz)

Connector:

 N-female


Center mounting:

 3/8" & M12


Width x Length x Thickness:

 1.34 x 1.53 x 0.11 m

Weight:

 3.0 kg





Datasheet VUSLP 9111 F

Radiation Pattern VUSLP 9111 F

Short Measuring Distance



Option:

    • Transport Case CCA 9111 F
    • Mast adapter for masts on monitoring cars, incl. polarisation change.
