BBHA 9120 F - Double Ridged Broadband Horn Antenna

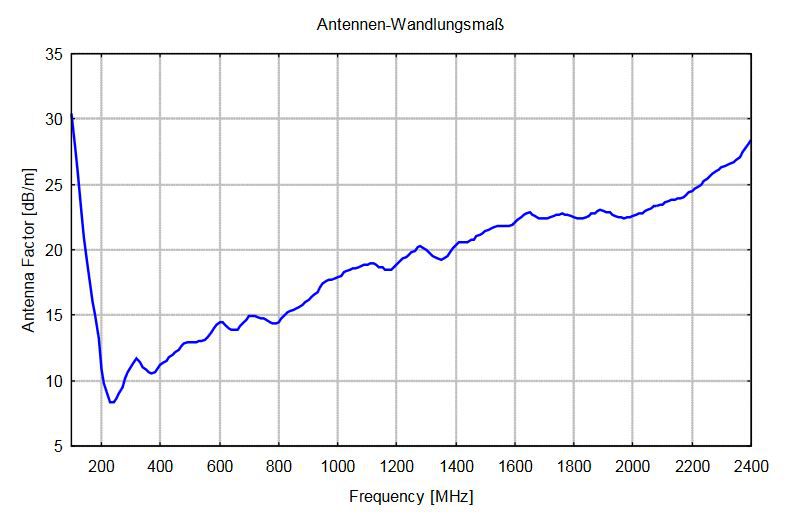

  • BBHA 9120 F - Typical Antenna Factor

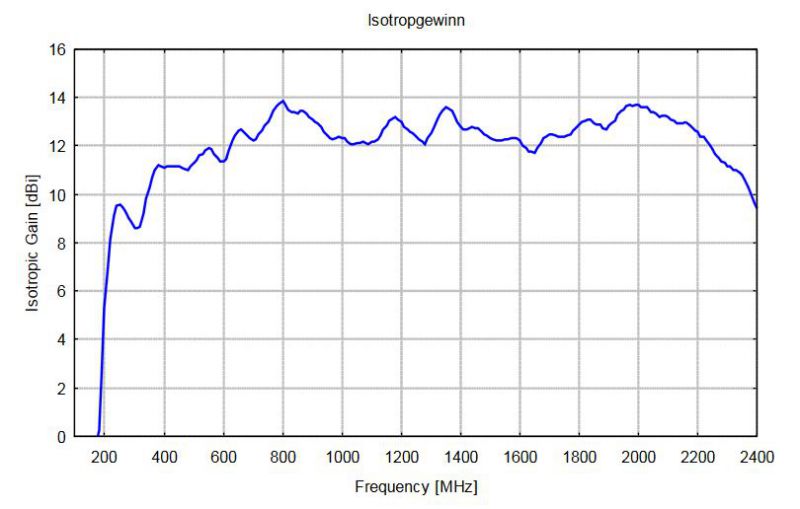

  • BBHA 9120 F - Typical Gain

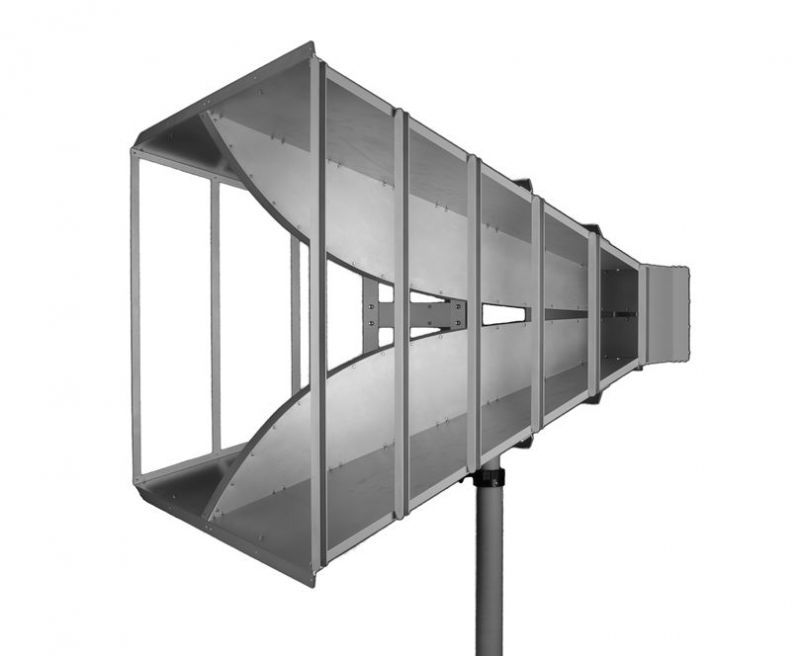

  • BBHA 9120F Double Ridge Broadband Horn Antenna


Linear polarized double ridged broadband horn antenna for receive and transmit applications made of aluminium. An optional 7-16 connector is available for high power applications. Frequency range 0.2 GHz to 2 GHz.



Frequency Range, nominal: 0.2 GHz - 2 GHz (2.4 GHz)
Polarisation: linear
Pattern Type: directional
Material: Aluminium
Max Power:

see diagramm


N - female
7/16 - female (optional)

Impedance: 50 Ω nominal
Length: 690 mm
Width: 945 mm
Height: 960 mm
Weight: 16 kg

Center Mount M12, M10 and 3/8"

Recommended Accessories: PDG 9211 - Polarisation Swivel Fixture


Datasheet BBHA 9120F


Radiation Pattern



Opt. 7/16 - with 7/16-connector 3 kW

Opt. 1m - Very short telescopic tube to be inserted into the steel foot of AM 9144 to set BBHA 9120 F to a height of 1 m referring to the antenna center in both polarisations.


Datasheet BBHA 9120 F Opt. 1 m
