ECSS LISN 2 - 75A



ECSS LISN 2 - 75A

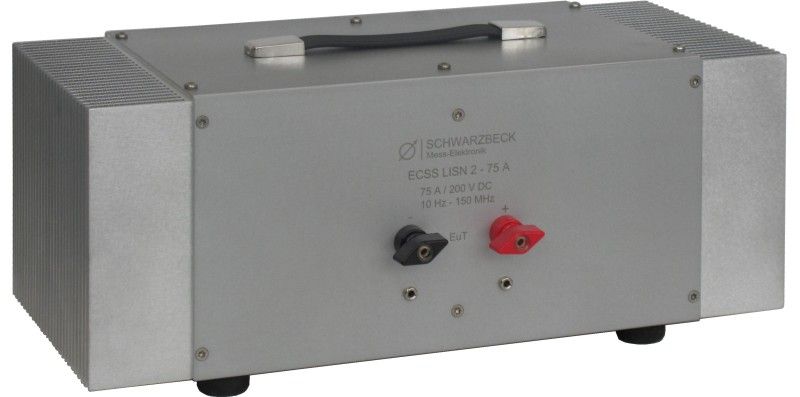

  • ECSS_LISN_2-75A


The ECSS LISN 2 - 75A was developed following the „European Cooperation for Space Standardisation“. The ECSS LISN 2 - 75A is used for DC mains lines. The impedance characteristic of each path is basically realized by an inductor in parallel with the 50 Ohm resistor: 2 μH || 50 Ω.



The device under test may drain a continuous current of 75 A and for a short period of time it may even drain more than 100 A.



Frequency Range: 10 Hz - 150 MHz
Max. cont. current: 75 A
Max. current (limited time): 100 A
Max. voltage (DC): 200 V
Impedance: (2 µH ) || 50 Ω
DC-Recistance mains-EuT: 100 mΩ
EuT connectors: screw terminals M7x0.75
unscrewable with 4 mm jacks
Dimensions (WxHxD): 440 x 162 x 196 mm
Weight 9.5 kg
Standard: ECSS-E-ST-20-07 Rev1



pdficon small Datasheet ECSS LISN 2 - 75A
