BBV 9721 - Microwave Broadband Preamplifier

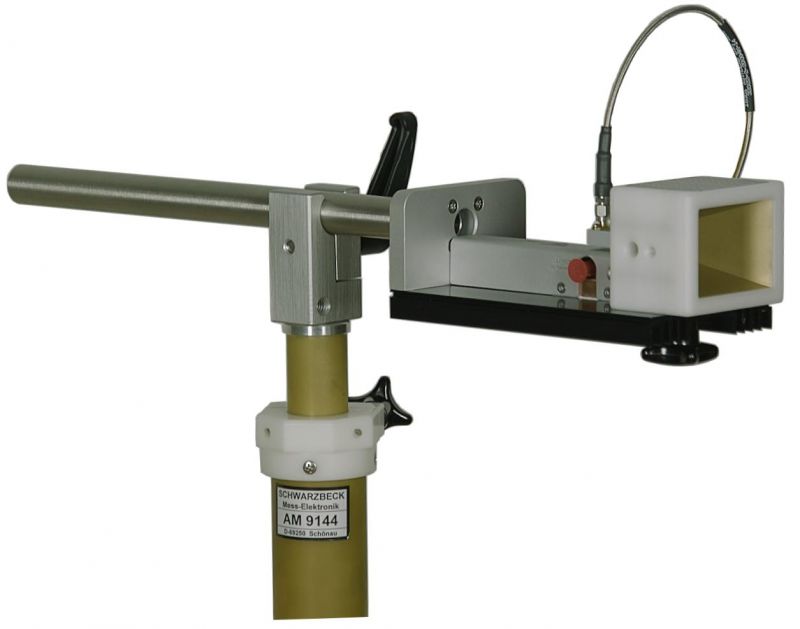

  • BBV 9721 - Broadband Coaxial Preamplifier

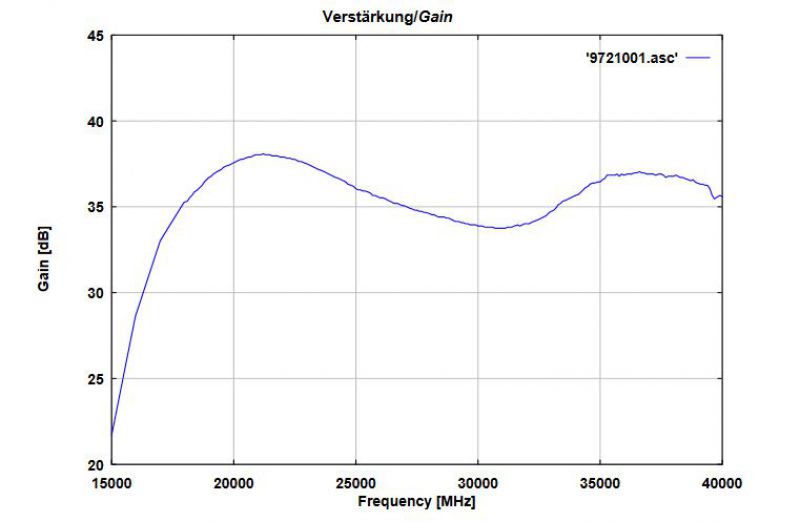

  • BBV 9721 - Typical Gain


The BBV 9721 is a low noise low power wideband preamplifier to increase sensitivity during field strength-measurements and for general attenuation measurements up to 40 GHz.





Frequency range (nominel):

 18 - 40 GHz

Gain:

 typ. 35 dB +/-4 dB

Gain min.:

 27 dB

SWR typ.:

 <2.6

Max. input power:

 -20 dBm (87 dBµV)

1 dB Compression:(at output)

 >+15 dBm (122 dBµV)

Noise Figure:

 5.5 dB
Connectors:  2.92 mm 50 Ω
Power Supply 1:  + 8 V / 400 mA DC
Power Supply 2:  - 8 V / 50 mA DC
Power Supply via female Banana sockets:  4 mm

Dimensions:

 370 x 95 x 65 mm

Weight:

 860 g



Including short cable with 2.92 plugs to connect the BBV 9721 with the antenna (for example BBHA 9170)


  Datasheet BBV 9721





Options:

Option PS 9721: Power supply unit for BBV 9721 including cables with secuity plugs can be used for 110 V and 230 V

Datenblatt PS 9721



Option PS 9721 Battery: Power supply unit with integrated accumulator battery for BBV 9721 including cables with secuity plugs can be used for 110 V and 230 V

Datenblatt PS 9721 Battery
