Collapsible or Open Conical Elements

BBAE 9179



Foldable elements for immunity for automotive applications

optimized for 1 m measurement distance

max. diameter 150 cm

20 - 220 MHz

suitable for: VHBC 9133, VHBD 9134, VHBD 9134-4

Some Baluns may need a mechanical modification!



pdficon small Datasheet BBAE 9179

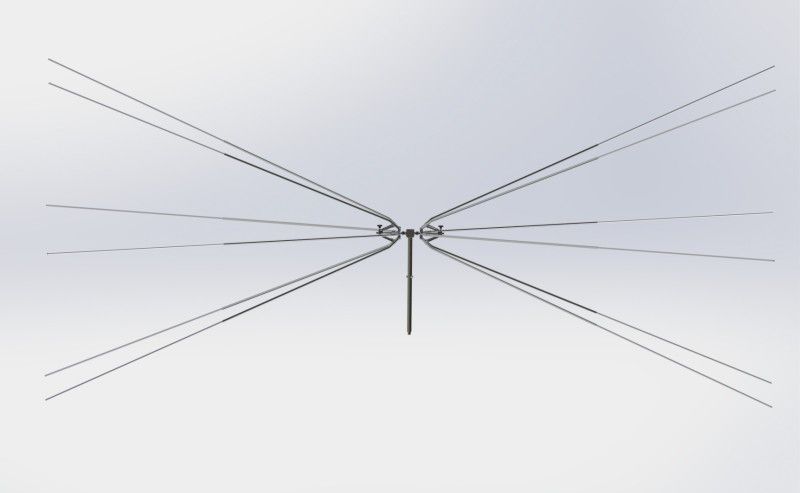

  • BBFA9146 with extensions

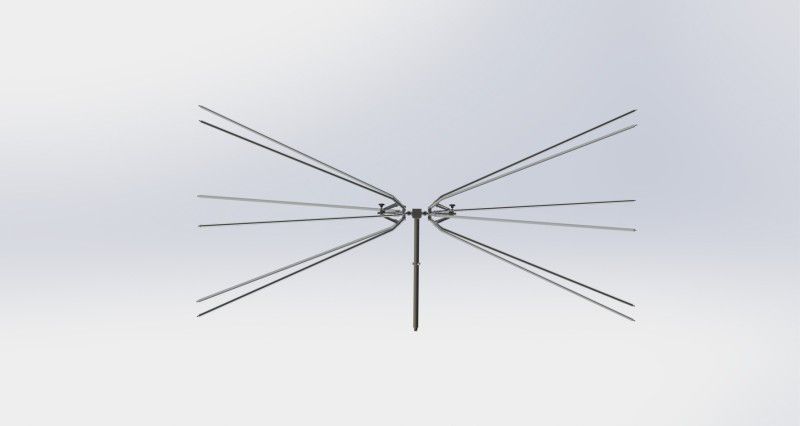

  • BBFA9146 without extensions



BBFA 9146



BBFA 9146 foldable conical elements are large open conical elements with variable adjustable opening angle.

To improve the antenna properties in the lower frequency range, it is possible to use extensions.



Lenght with extensions up to 4 m.



Frequency Range: 20 - 220 MHz



pdficon small Datasheet BBFA 9146



pdficon small Datasheet BBFA9146 + VHBB9124

pdficon small Datasheet BBFA9146 + VHBC9133

pdficon small Datasheet BBFA9146 + VHBD9134

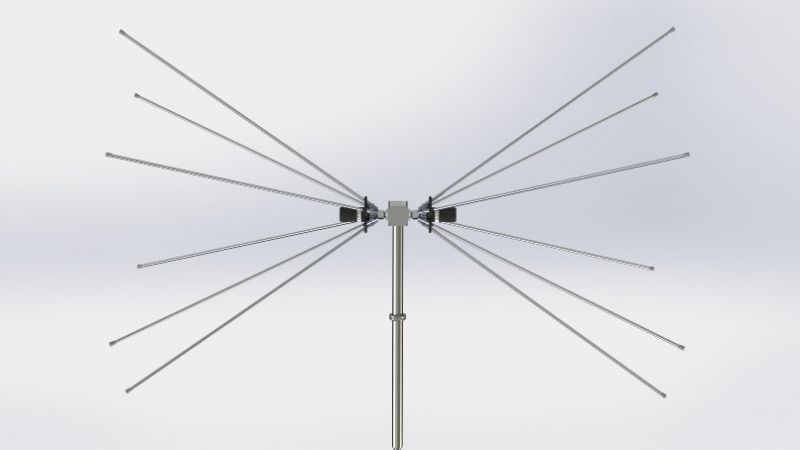

  • Schwarzbeck FBAB9177 Collapsible Biconical Elements



FBAB 9177



Collapsible Biconical Elements

30 - 300 MHz (instead of BBA 9106)



pdficon small Datasheet FBAB9177 + VHA9103

pdficon small Datasheet FBAB9177 + VHBA9123

pdficon small Datasheet FBAB9177 + VHBB9124





FBAL 9178



Large Collapsible Biconical Elements

20 - 200 MHz (instead of BBAL 9136)



pdficon small Datasheet FBAL9178 + VHBA9123

pdficon small Datasheet FBAL9178 + VHBB9124

pdficon small Datasheet FBAL9178 + VHBA9133









BAOC 9216



Open Conical Elements

160-1200 MHz broadband

for UBAA 9114/9115



Datasheet BAOC9216 + UBAA9114

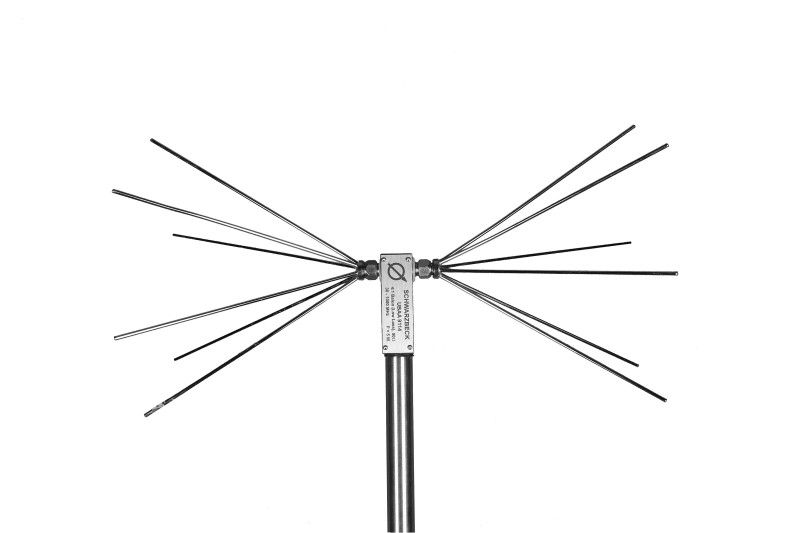

  • Schwarzbeck BBOC9217 with UBAA9214



BBOC 9217



Open Conical Elements

(30)100-1000 MHz broadband

for UBAA 9114/9115



pdficon small Datasheet BAOC9217 + UBAA9114
